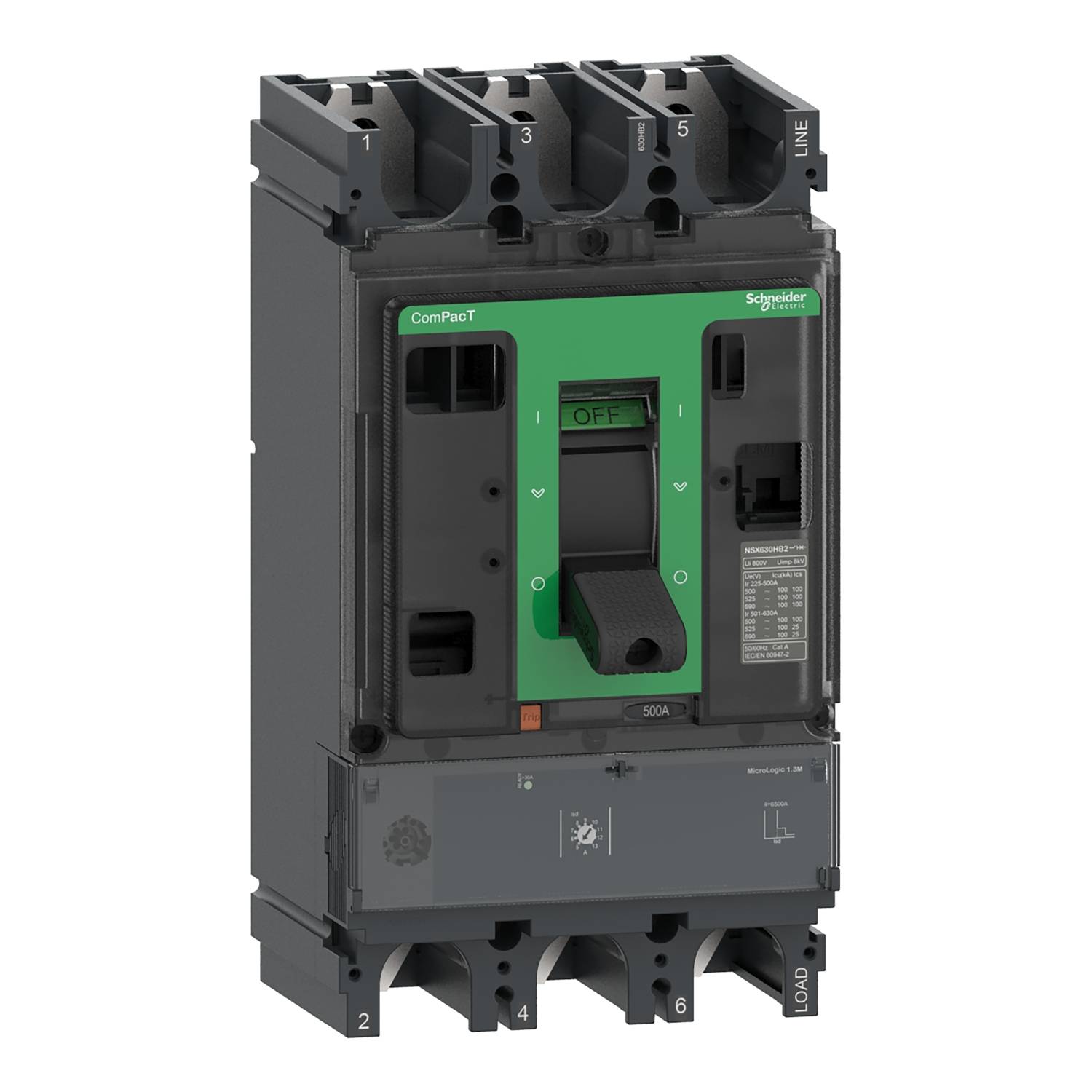

Schneider Electric C40H31M320 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 140 x 255 x 110 mm
EAN:
Part number:
Item no:
Product type
Circuit breaker
Packaging type
Piece
Type
C40H31M320
No. of pins
3-pin
Switching voltage (max.)
690 V AC
Datasheet (PDF)
Number
Total (€ 1,315.13 / piece)
€ 1,315.13
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Circuit breaker
- Type
C40H31M320
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Mounting type
Fixed
- Depth
110 mm
- Width
140 mm
- Height
255 mm
- Dim
(W x H x D) 140 x 255 x 110 mm
- Content
1 pc(s)
140
255 mm
110 mm
FALSE
320 A
FALSE
3.0
IP40
FALSE
Screw connection
Other
Electronic
70 kA
TRUE
Built-in device fixed built-in technique
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2935892 Schneider Electric C40H31M320 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 140 x 255 x 110 mm
Datasheet 2935892 Schneider Electric C40H31M320 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 140 x 255 x 110 mm
User & Safety Instructions
User & Safety Instructions 2935892 Schneider Electric C40H31M320 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 140 x 255 x 110 mm
User & Safety Instructions 2935892 Schneider Electric C40H31M320 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 140 x 255 x 110 mm
Information
Information 2935892 Schneider Electric C40H31M320 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 140 x 255 x 110 mm
Description
This compact NSX400H is a complete fixed-mount 3P 3D circuit breaker designed to optimize space requirements and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (ICU) is 70 kA eff. At 415 VAC, 50/60 Hz. The operating voltage is 690 VAC 50/60 Hz. This product has an electronic trigger MicroLogic 1.3 M with a rated power of 320 A. The trigger device MicroLogic 1.3 M offers an adjustable short-time delayed protection and a fixed instantaneous protection. This 3-pole version (140 mm x 255 mm x 110 mm) comes with a variety of optional functions and accessories. It complies with international standards (IEC 60947), CCC, EAC and Marine specifications. Compact NSX400H is part of Schneider Electric's EcoStruxure power architecture.
