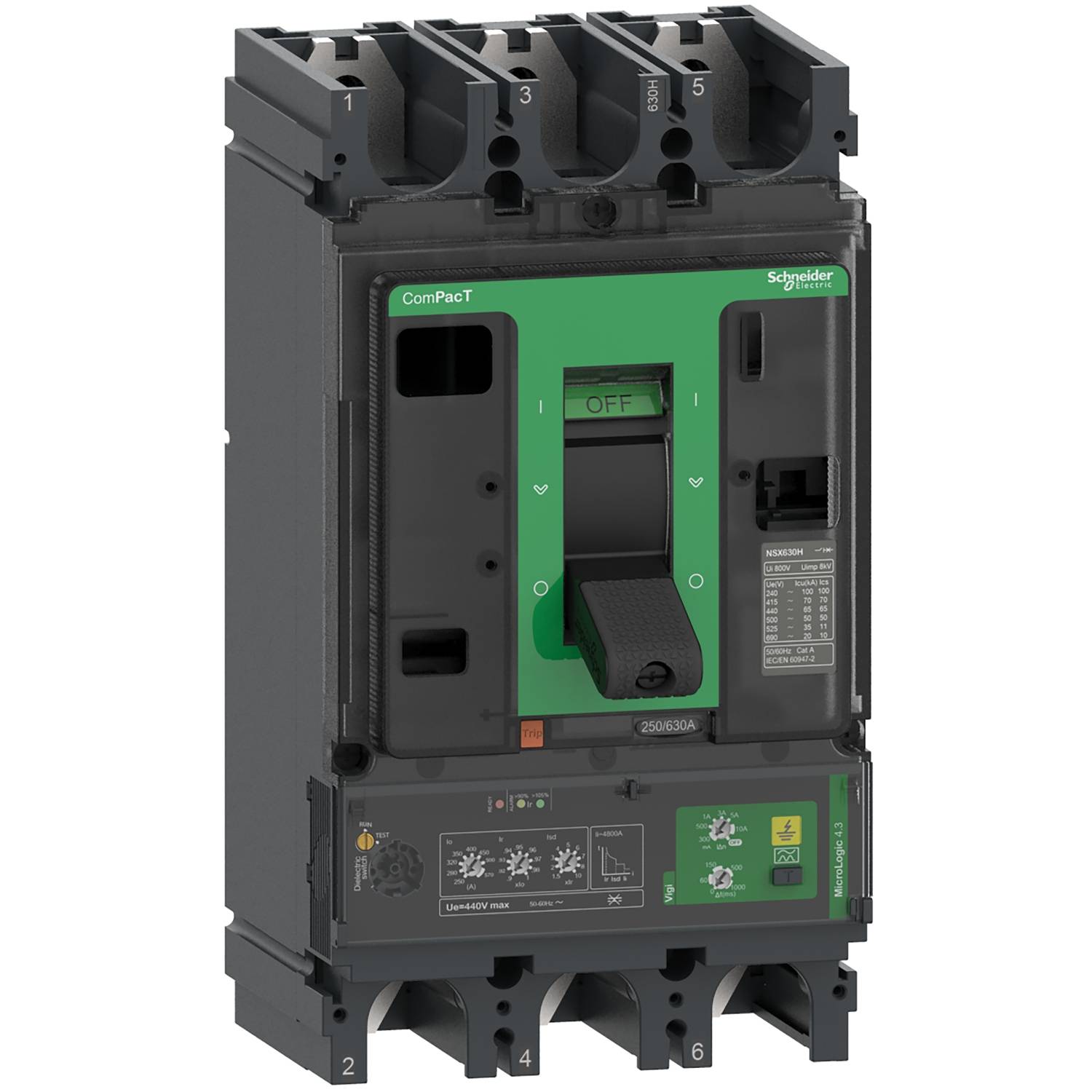

Schneider Electric C40N34V400 Circuit breaker 1 pc(s) Adjustment range (amperage): 400 A (max) Switching voltage (max.):
EAN:
Part number:
Item no:
Product type
Circuit breaker
Amperage adjustment range (max.)
400 A
Packaging type
Piece
Type
C40N34V400
Adjustment range (amperage)
400 A (max)
Datasheet (PDF)
Number
Total (€ 2,999.16 / piece)
€ 2,999.16
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Circuit breaker
- Type
C40N34V400
- Amperage adjustment range (max.)
400 A
- Adjustment range (amperage)
400 A (max)
- No. of pins
3-pin
- Switching voltage (max.)
440 V AC
- Mounting type
Fixed
- Depth
110 mm
- Width
140 mm
- Height
255 mm
- Dim
(W x H x D) 140 x 255 x 110 mm
- Content
1 pc(s)
0
0
400 A
3
7
IP40
Front side
FALSE
Screw connection
Toggle
TRUE
50 kA
FALSE
TRUE
TRUE
Built-in device fixed built-in technique
FALSE
TRUE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2928089 Schneider Electric C40N34V400 Circuit breaker 1 pc(s) Adjustment range (amperage): 400 A (max) Switching voltage (max.):
Datasheet 2928089 Schneider Electric C40N34V400 Circuit breaker 1 pc(s) Adjustment range (amperage): 400 A (max) Switching voltage (max.):
User & Safety Instructions
User & Safety Instructions 2928089 Schneider Electric C40N34V400 Circuit breaker 1 pc(s) Adjustment range (amperage): 400 A (max) Switching voltage (max.):
User & Safety Instructions 2928089 Schneider Electric C40N34V400 Circuit breaker 1 pc(s) Adjustment range (amperage): 400 A (max) Switching voltage (max.):
Description
This compact NSX400N is a complete fixed-mount 3P 3D circuit breaker designed to optimize space requirements and breaking capacity. It is an optimum choice for all standard and special applications. The breaking capacity (ICU) is 50 kA eff. At 415 VAC, 50/60 Hz. The operating voltage is 440 VAC 50/60 Hz. This product has an electronic release device MicroLogic 4.3 Vigi with a rated power of 400 A and a built-in adjustable differential current protection. MicroLogic 4.3 Vigi also offers customizable long-term and short-term protection features and fixed instantaneous protection. This 3-pole version (140 mm x 255 mm x 110 mm) comes with a variety of optional functions and accessories. It complies with international standards (IEC 60947), CCC, EAC and Marine specifications. Compact NSX400N is part of Schneider Electric's EcoStruxure power architecture.
