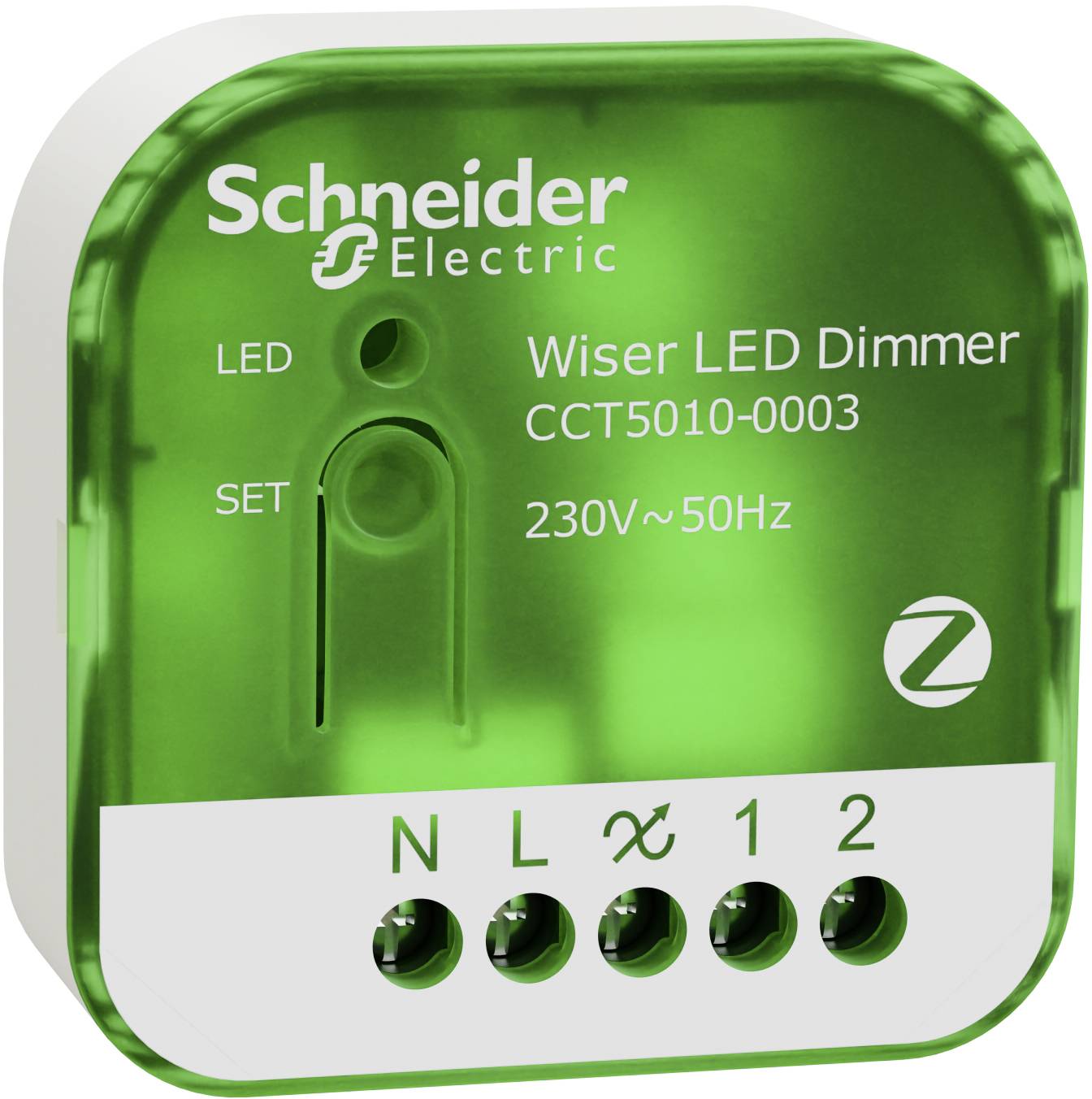

Schneider Electric CCT5010-0003 Dimmer acutator Green
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Wiser UP dimming actuator, switching and dimming, Wiser Home, Quick Home Connect wireless connection, 230V AC, 200W, Multiwire, ZigBee
Technical specifications
- Wire cross-section: 1.5-2.5 mm²

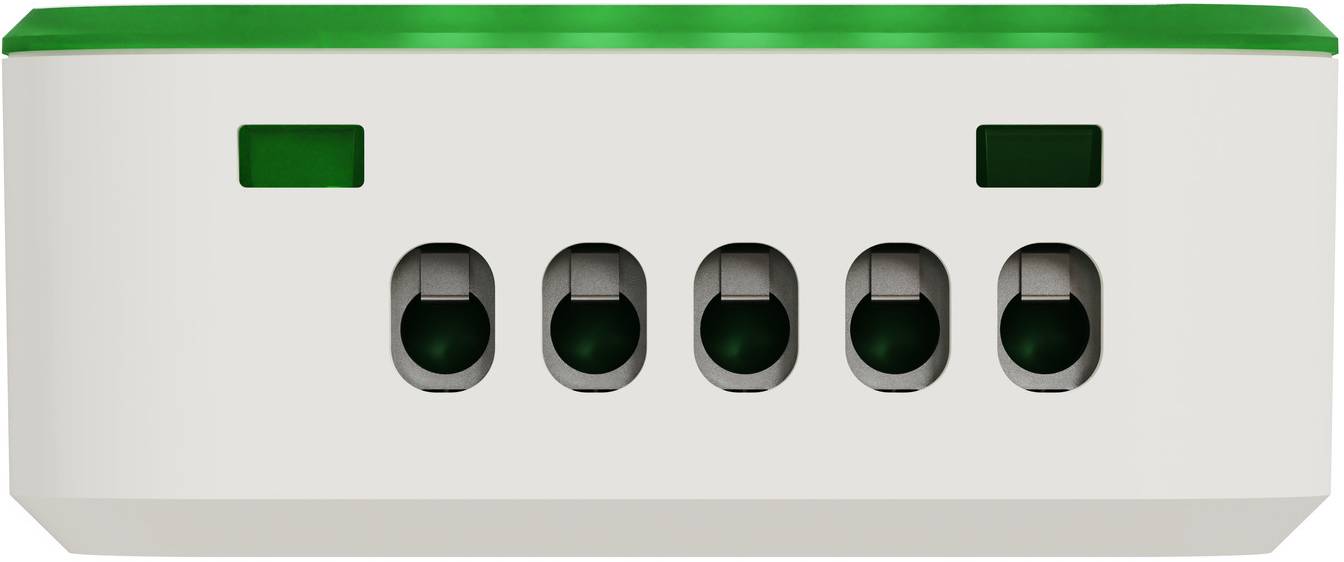

- Type of connection: Screw terminal
- APP control via Bluetooth: No.
- Operating mode: Other
- Dimming of phase section: Yes
- Dimming leading edge: No.
- Suitable for protection class (IP): IP20
- Device width 45 mm
- Device height 45 mm
- Device depth 18.5 mm
- IFTTT support available: No.
- Compatible with Amazon Alexa: Yes
- Compatible with Apple home kit: Yes
- Compatible with Google Assistant: Yes
- Load start: Capacitive load
- Power consumption 0.25 W
- Light value storage: Yes
- Min Adjustable brightness: Yes
- Extension input: Yes
- Nominal voltage: 230 V
- Surface protection: Untreated
- Impact strength: IK02
- Series dimmer: No.
- Transparent: Yes
- Can be used with a motion detector: No.
- Can be used with radio button: Yes
- Can be used with IR key: No.
- Can be used with presence detector: No.
- Can be used with button: Yes
- Can be used with timer/timer: Yes
- Material quality: Other
- Assembly: Base element
- Product type
Dimmer acutator
- Factory colour
Green
- Halogen-free
Yes
- Mounting type
Flush mount
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3754730 Schneider Electric CCT5010-0003 Dimmer acutator Green
User & Safety Instructions
User & Safety Instructions 3754730 Schneider Electric CCT5010-0003 Dimmer acutator Green
User & Safety Instructions 3754730 Schneider Electric CCT5010-0003 Dimmer acutator Green
Description

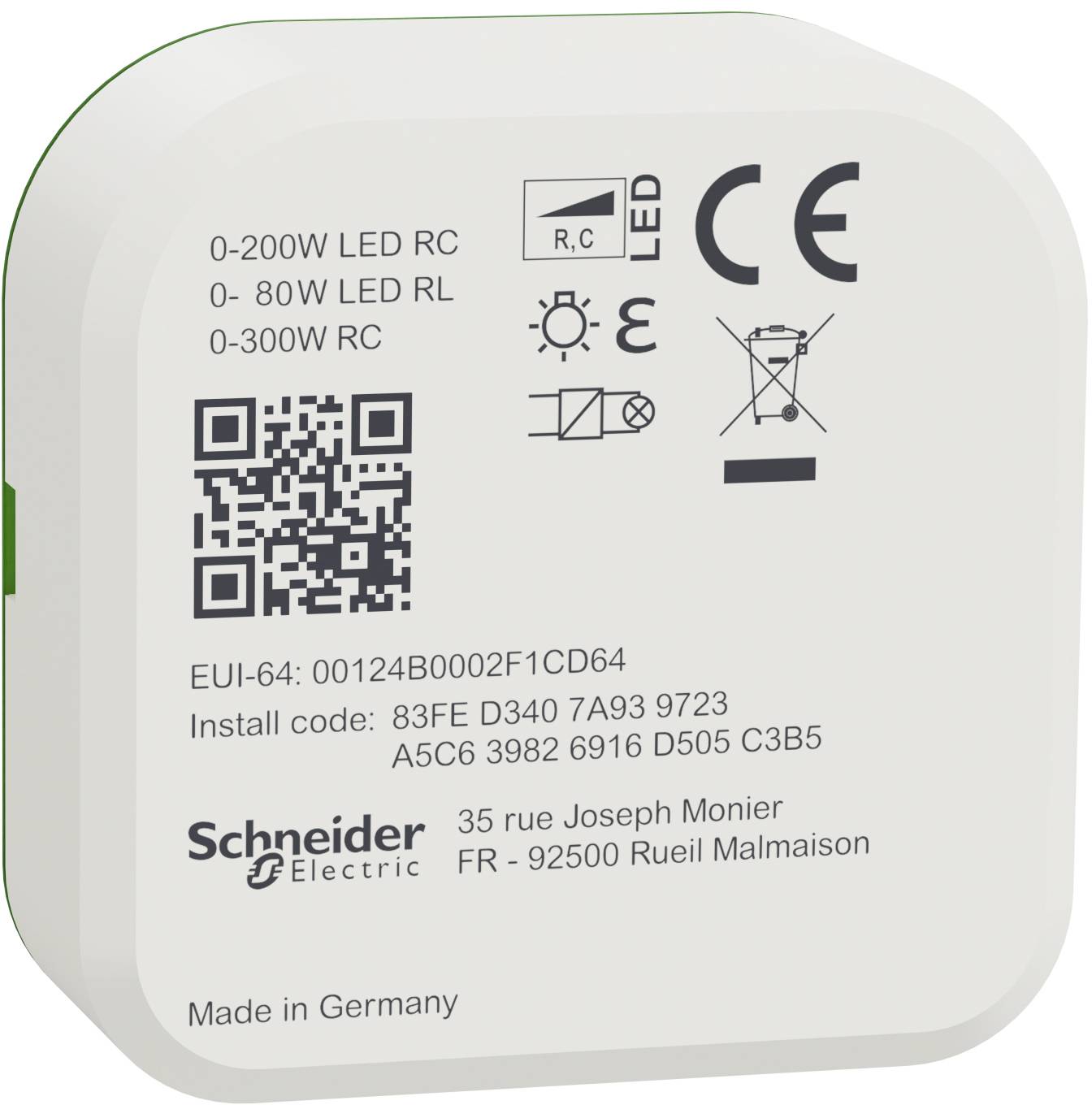

Wiser dimming actuator is designed for switching and dimming LED lamps and resistive or capacitive loads. Multiwire technology (multi-wired) works with and without neutral. It can be remote controlled with the Wiser Home APP and with optional push buttons. It is equipped with the ZigBee 3.0 communication port protocol. It is equipped with a green, red, orange LED-programming display. Thanks to the Multiwire technology, it can operate LED loads below 1 W. The device has an overheat protection, short-circuit protection and automatic overload protection. Its rated voltage operating voltage is 220-240VAC at 50/60 Hz. Standby power consumption is less than 0.3 W. The load capacity of 230V LED lamps is 200W, incandescent lamps and 230V halogen lamps 300W and halogen lamps with standard electronic transformer 300W. This device is approved for in-wall installation. It is made from a material mix. The color of the product is white/green. The ambient air temperature for operating ranges from -5°C to +35°C. It achieves protection class IP20. Wiser offers intelligent integration of domestic control devices and enables an enriching Smart home thanks to the Wiser Home APP. The Wiser 2. Generation is needed, in order to use the APP and the full functional scope. The product complies with RoHS, Zigbee 3.0 certification.
