Name: Schneider Electric Control pad TM173DLED
Brand: Schneider Electric
SKU: 3756212
Availability: BackOrder

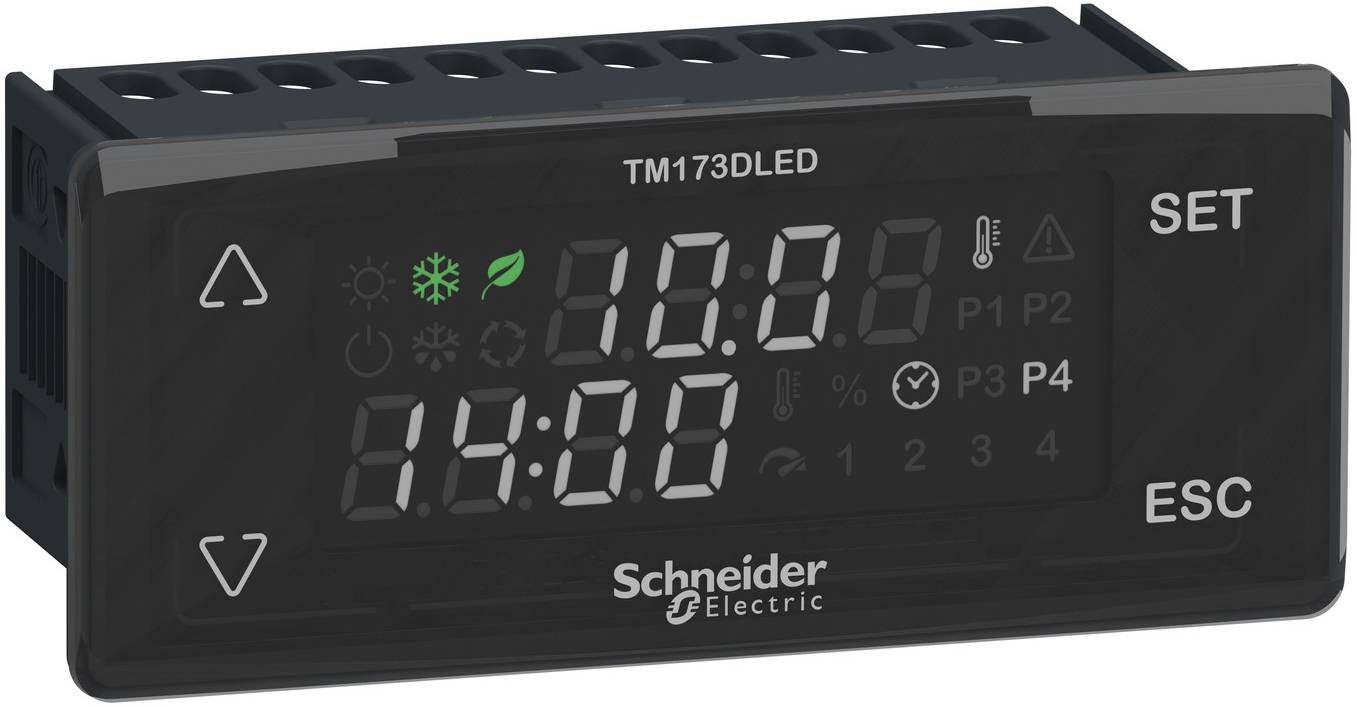

Schneider Electric TM173DLED digital temperature controller display showing 10.0 and 14:00, with SET and ESC buttons and up/down arrows.<br>

Green electronic component with a central connector and rows of gold contact pins inside a black rectangular housing.

Black wall-mounted mailbox or letter slot with horizontal mail opening and several vertical slots along the bottom.

Black rectangular wall-mounted vent or grille with vertical slots and a lower base panel, shown on a plain background

Close-up of a dark device panel with ventilation slits, triangular arrow buttons, and a protruding side handle or latch.

Black plastic electronic component with vent slots and recycling markings, shown in side view.

1/6

Product type

Control pad

Energy efficiency rating

Doesn't apply

Dim

(W x H) 34.5 mm x 80.5 mm

Width

34.5 mm

Height

80.5 mm

Datasheet (PDF)

Dispatches on Wed 28 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of levels, password protection: 0
Number of display colors: 1
Number of function keys, programmable: 0
Number of HW interfaces Industrial Ethernet: 0
Number of HW interfaces in parallel: 0
Number of HW interfaces serial RS-232: 0
Number of HW interfaces serial RS-422: 0
Number of HW interfaces serial RS-485: 0
Number of HW interfaces serial TTY: 0
Number of HW interfaces Other: 1
Number of HW interfaces USB: 0
Number of HW interfaces Wireless: 0
Number of online languages: 1
Number of PROFINET interfaces: 0
Number of system keys: 4
Number of buttons with LED: 0
Display design: Other
Operating temperature -20-65°C.
Front width 34.5 mm
Installation depth: 34.6 mm
Wireless standard Bluetooth: No.
Wireless standard GPRS: No.
Radio standard GSM: No.
Wireless standard UMTS: No.
Wireless standard WLAN 802.11: No.
Suitable for security functions: No.
Height of the front 80.5 mm
IO-Link Master: No.
Power consumption 1.5 W
With Alpha keyboard: No.
With printed output: No.
With color display: Yes
With alarm system (including buffer and acknowledgment): No.
With message display: No.
With numeric keyboard: No.
With recipes: No.
With SW-interfaces: No.
Useable project memory/user memory: 0 kB
Process value display (output) possible: Yes
Process value setting (input) possible: Yes
Protection class (IP), front IP20
Protection class (NEMA), front side: Other
Voltage type of supply voltage: AC/DC
Touch technology: Without
Rail mounting possible: No.
Supports protocol for AS-Interface Safety at Work: No.
Supports protocol for ASI: No.
Supports protocol for CAN: No.
Supports protocol for data highway: No.
Supports protocol for DeviceNet: No.
Supports protocol for DeviceNet Safety: No.
Supports protocol for EtherCAT: No.
Supports protocol for Ethernet/IP: No.
Supports protocol for FOUNDATION Fieldbus: No.
Supports protocol for INTERBUS: No.
Supports protocol for INTERBUS-Safety: No.
Supports protocol for KNX: No.
Supports protocol for LON: No.
Supports protocol for Modbus: No.
Supports protocol for PROFIBUS: No.
Supports protocol for PROFINET CBA: No.
Supports protocol for PROFINET IO: No.
Supports protocol for PROFIsafe: No.
Supports protocol for SafetyBUS p: No.
Supports protocol for SERCOS: No.
Supports protocol for other bus systems: No.
Supports protocol for SUCONET: No.
Supports protocol for TCP/IP: No.
Supply voltage AC 50 Hz: 24-24 V
Supply voltage AC 60 Hz: 24-24 V
Supply voltage DC 24-24 V
Wall/direct mounting possible: Yes
Certified for UL-danger range Division 1: No.
Certified for UL-danger range Division 2: No.
Certified for UL danger range Group A (acetylene): No.
Certified for UL danger area group B (hydrogen): No.
Certified for UL danger area Group C (ethylene): No.
Certified for UL danger range Group D (propane): No.
Certified for UL danger area Group E (metal dust): No.
Certified for UL danger range Group F (carbon-containing dusts): No.
Certified for UL danger area Group G (non-conductive dusts): No.
Certified for UL danger range Class I: Yes
Certified for UL-danger range Class II: No.
Certified for UL-danger range Class III: No.
Additional software components, loadable: No.
Product dimensions, depth 34.6 mm

Product type: Control pad

Dim: (W x H) 34.5 mm x 80.5 mm

: Doesn't apply

Width: 34.5 mm

Height: 80.5 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3756212 Schneider Electric Control pad TM173DLED

User & Safety Instructions

User & Safety Instructions 3756212 Schneider Electric Control pad TM173DLED

Description

The Modicon M173 PLC controller in Optimized version is part of the Modicon M171/M172/M173 series, a control offer for HVAC/pump applications. The remote display has a 4-key keyboard for data display and control input. The communication between remote display and control is done by a proprietary LAN bus. The remote panel is supplied with power through the control. The remote display has the following dimensions: Width 74mm, depth 30mm, height 32mm. The remote display is compatible with all Modicon M173, Optimized controllers. The mounting is done as installation in the switch cabinet door with mounting accessories.

This text is machine translated.
