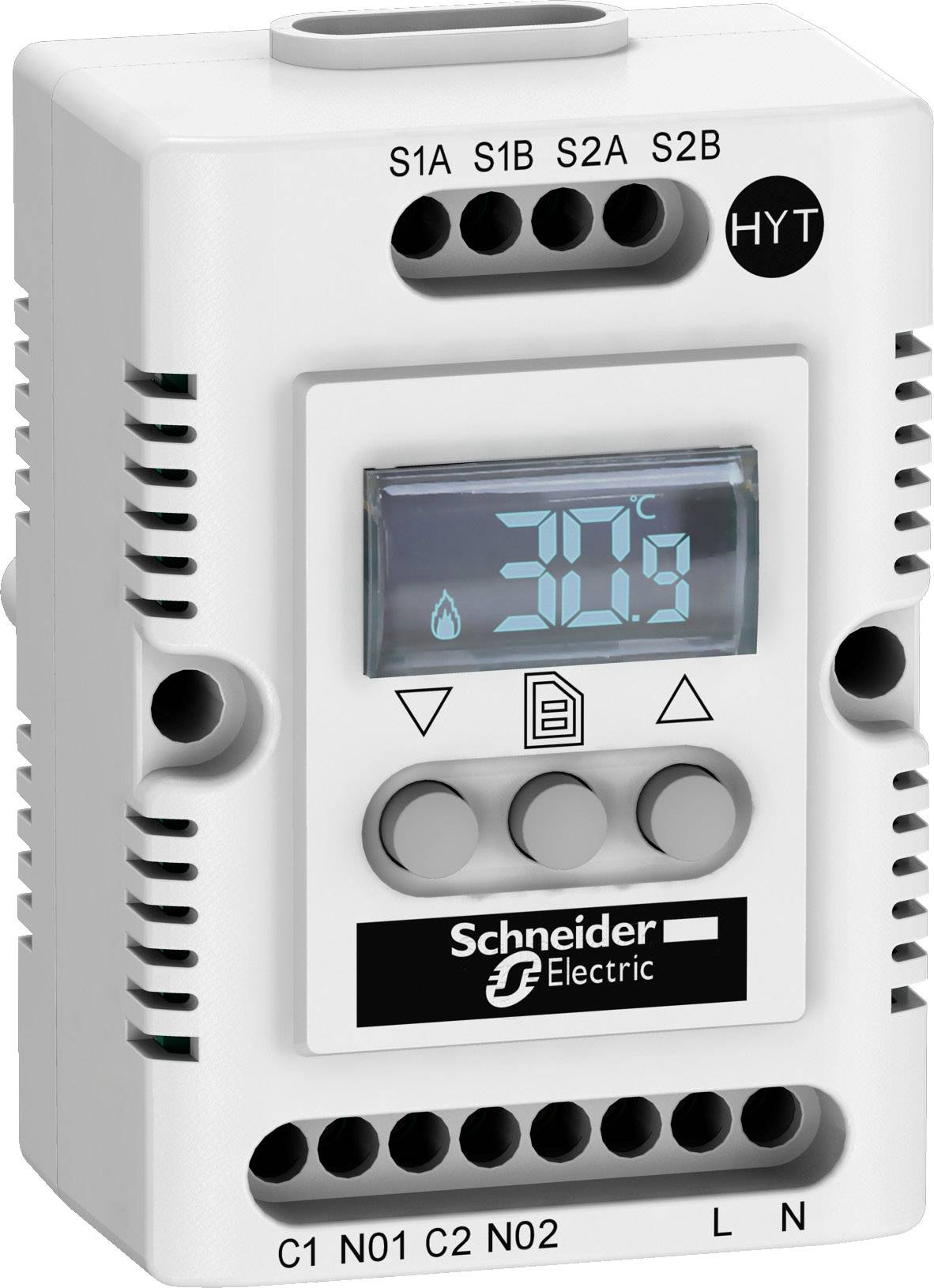

Schneider Electric Enclosure thermostat NSYCCOHYT120VID 140 V AC (L x W x H) 44 x 56 x 85 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure thermostat
Connection
Screws
Switching current (max.)
4 A
Operating voltage
140 V AC
Type
NSYCCOHYT120VID
Cutter NSYCCOHYT 120 VID ClimaSys
Technical specifications
- Display type: OLED screen
- Product type
Enclosure thermostat
- Type
NSYCCOHYT120VID
- Connection
Screws
- Adjustment range (min.) (temperature)
-40 °C
- Temperature adjustment range (max.)
+80 °C
- Adjustment range (min.) (moisture)
20
- Adjustment range (max.) (moisture)
80
- Factory colour
Light grey
- Mounting type
DIN rail
- Switching current (max.)
4 A
- Operating voltage
140 V AC
- Min. operating voltage
90 V AC
- Max. operating voltage
140 V AC
- Operating voltage
90 - 140 V AC
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+80 °C
- Length
44 mm
- Width
56 mm
- Height
85 mm
- Dim
(L x W x H) 44 x 56 x 85 mm
IP20
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1866069 Schneider Electric Enclosure thermostat NSYCCOHYT120VID 140 V AC (L x W x H) 44 x 56 x 85 mm 1 pc(s)
Description
Climasys-Thermostat and electronic hygrostat, hygro therm 110-120 V. Product Series: ClimaSys CC-product or component type: Electronic Hygro Therm-product compatibility: resistance heating, fan temperature setting range: -40...80?C-humidity setting range: 20...80% Screen type: OLED screen displayed information: relative humidity, temperature in?C, temperature in?F.
