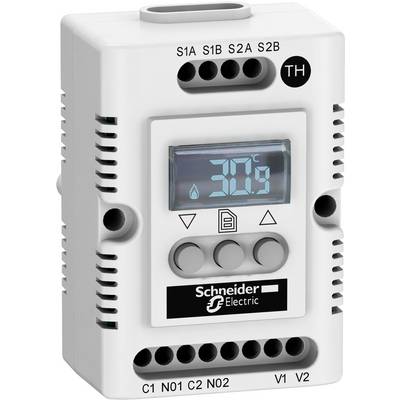

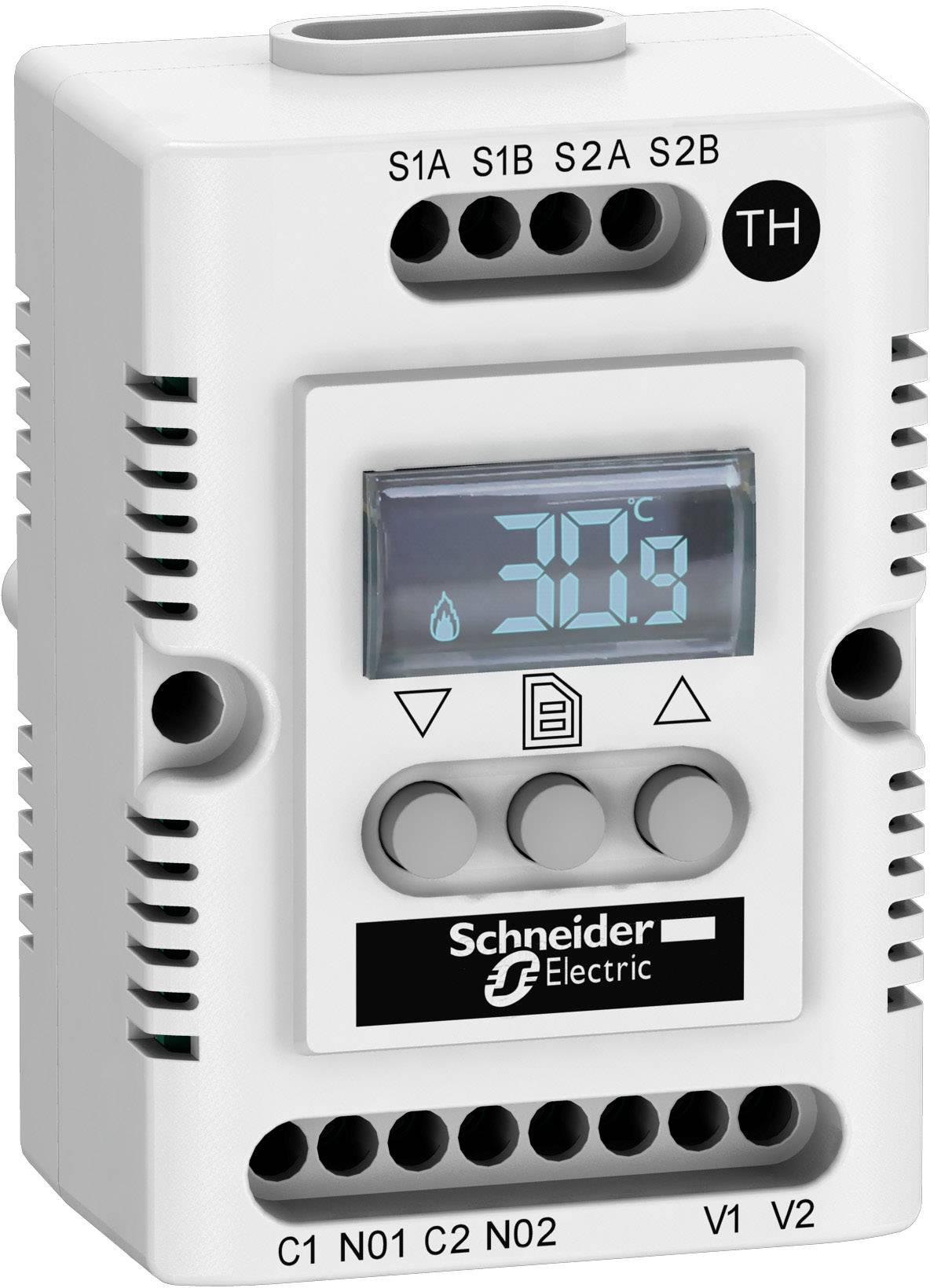

Schneider Electric Enclosure thermostat NSYCCOTH230VID 240 V AC (L x W x H) 44 x 56 x 85 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure thermostat
Connection
Screws
Switching current (max.)
4 A
Operating voltage
240 V AC
Type
NSYCCOTH230VID
Technical specifications
- Display type: OLED screen
- Product type
Enclosure thermostat
- Type
NSYCCOTH230VID
- Connection
Screws
- Adjustment range (min.) (temperature)
-40 °C
- Temperature adjustment range (max.)
+80 °C
- Factory colour
Light grey
- Mounting type
DIN rail
- Switching current (max.)
4 A
- Operating voltage
240 V AC
- Min. operating voltage
200 V AC
- Max. operating voltage
240 V AC
- Operating voltage
200 - 240 V AC
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+80 °C
- Length
44 mm
- Width
56 mm
- Height
85 mm
- Dim
(L x W x H) 44 x 56 x 85 mm
IP20
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1866606 Schneider Electric Enclosure thermostat NSYCCOTH230VID 240 V AC (L x W x H) 44 x 56 x 85 mm 1 pc(s)
Description
Climasys-Thermostat, electronic, 230 V. Product Series: ClimaSys CC-product or component type: electric thermostat product compatibility: resistance heating, fan temperature setting range: -40...80?C Screen type: OLED screen displayed information: temperature in?F, temperature in? C.
