Schneider Electric EVB4S22NC0G Wallbox Type 2 22 kW App, RFID, NFC, Wi-Fi
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Suitable for cable cross-sections of 6-6 mm²
- Number of CEE sockets: 0
- Number of FI switches type A: 0
- Number of residual current circuit breakers type B: 0
- Number of household sockets: 0
- Number of charging couplings CHADEMO: 0
- Number of GB AC charging couplings: 0
- Number of GB DC charging couplings: 0
- Number of charging couplings type 1: 0
- Number of Type 1 CCS charging couplings: 0
- Number of charging couplings type 2: 1
- Number of Type 2 CCS charging couplings: 0
- Number of loading points: 1
- Number of GB charging sockets: 0
- Number of charging sockets type 2: 0
- Number of charging sockets type 3: 0
- Design connection system side: Other
- Backend included in delivery: No.
- Operation and configuration via APP: YES
- DC fault current detection: Yes
- True-to-law: No.
- Input voltage 220-415 V
- Export of the load history: Yes
- Mains frequency: 50/60 Hz.
- Wireless standard 5G: No
- Suitable for dynamic load management: Yes
- IFTTT support available: No.
- Compatible with Amazon Alexa: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Charging cable can be locked permanently at the charging station: Yes
- With display: No.
- With energy meter: No.
- With house connection box (HAK): No.
- With integrated RFID card reader: Yes
- With circuit breaker: No.
- With MID-compatible energy counter: No.
- With key switch: No.
- Mounting type: Wall
- NFC (near field communication) yes
- Open Charge Point Protocol (OCPP) Version: 1.6
- Plug and charge (ISO 15118): No.
- Impact strength: IK10
- Contactor contact welding detection: Yes
- Static load management integrated: No.
- Network-compatible as Extender: No.
- Network-compatible as Master: No.
- Network connection via LAN: Yes
- Network connection via WLAN: Yes
- Housing material: Plastic
- Product type
Wallbox
- Authorisation
App
RFID
NFC
Wi-Fi
- Charger connectors
Type 2
- Charging capacity
22 kW
- Nominal voltage
220 V
415 V
- Cable length
7 m
IP55
IK10
- Certification marks
IEC61851-1
- Factory colour
Black (RAL 9005)
no
- Width
292 mm
- Height
418 mm
- Depth
119 mm
- Weight
7 kg
- Max. temperature
50 °C
- Min. temperature
-25 °C
Documents & Downloads
Datasheet
Datasheet 3754760 Schneider Electric EVB4S22NC0G Wallbox Type 2 22 kW App, RFID, NFC, Wi-Fi
User & Safety Instructions
User & Safety Instructions 3754760 Schneider Electric EVB4S22NC0G Wallbox Type 2 22 kW App, RFID, NFC, Wi-Fi
Description

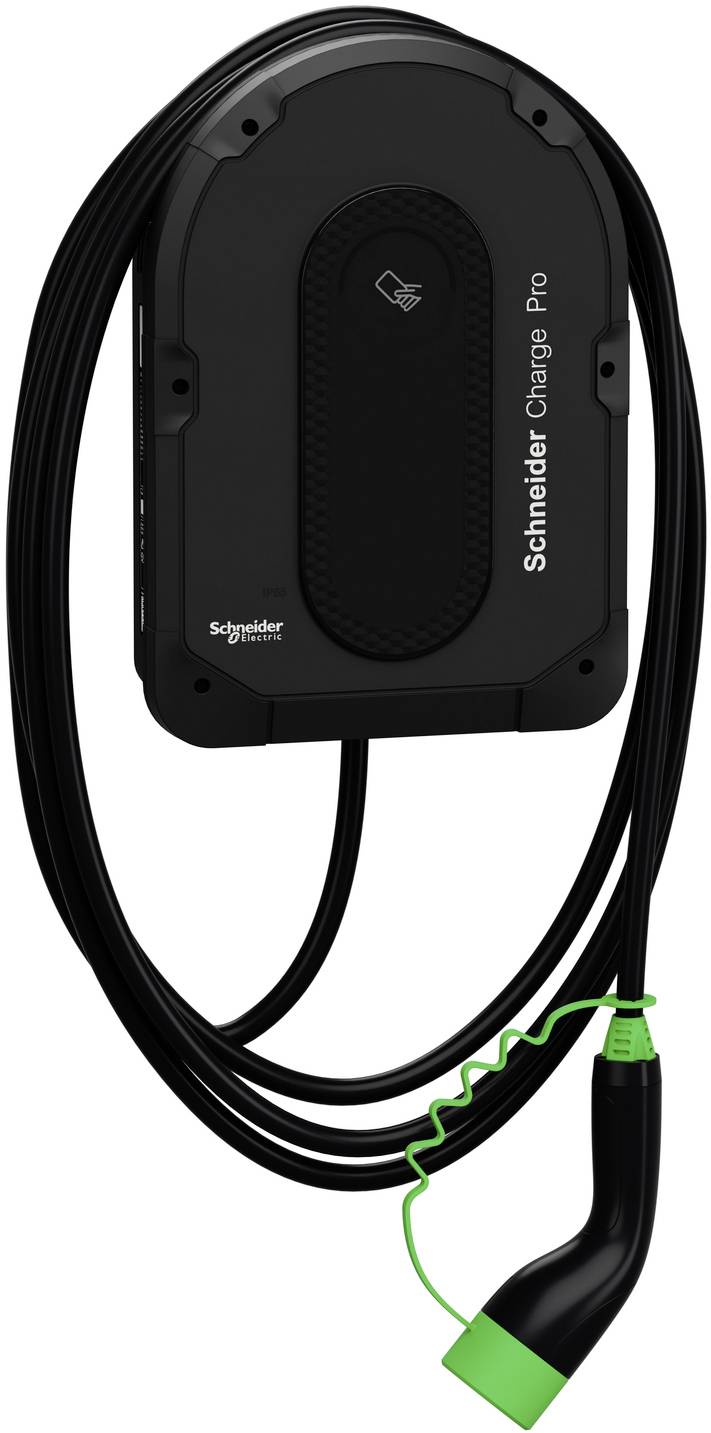

The Schneider Charge Pro Wallbox with a 7m model 2 charging cable delivers up to 22kW charging power for all electric vehicles according to IEC61851-1. The wall box can be mounted indoors or outdoors, on the wall or on a stem and was developed especially for applications in multi-family houses or for fleets. The charging is enabled using an RFID/NFC chip. It has a 6mA DC fault detection (RDC-DD), which makes the use of a upstream RCD type A possible. The connection to a billing platform using OCPP can be made via Ethernet or via the integrated 4G modem. For local charging point monitoring and as charging management for avoiding overloading of the house connection as well as for load distribution optimization, the Charge Pro can be connected to the EcoStruxure EV Charging Expert. The user receives user information and status message via an LED sheet. The Wallbox is commissioned via the eSetup APP. Access control: Free access, RFID/NFC: MIFARE DESFire EV1 badge, MIFARE DESFire EV2 badge, MIFARE badge, MIFARE DESFire EV1 RFID card, MIFARE DESFire EV2 RFID card, MIFARE card. Dimensions WxHxD: 292x418x119mm, weight: 7 kg, material: Polycarbonate UV-treated, color of charging station: Black RAL 9005. Shock resistance IK10, protection class IP55, operating temperature -25 to 50°C, storage temperature -40 to 85°C, operating altitude max. 2000 m without derating, relative Air humidity 5 to 95%. Earthing system: TT, TN(S) or TN(C)(S), IT compatible with additional isolating transformer for power supply. Standards and standards EN 61851, IEC 61851-1, EN 61000-6-1, EN 61000-6-3, EN 301-489-1, EN 301-489-3, IEC 62955.
