Buy Schneider Electric Frequency inverter 0.75 kW 3-phase

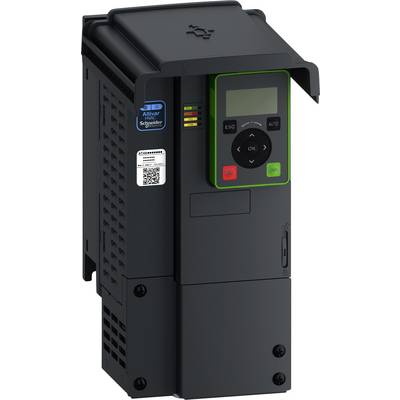

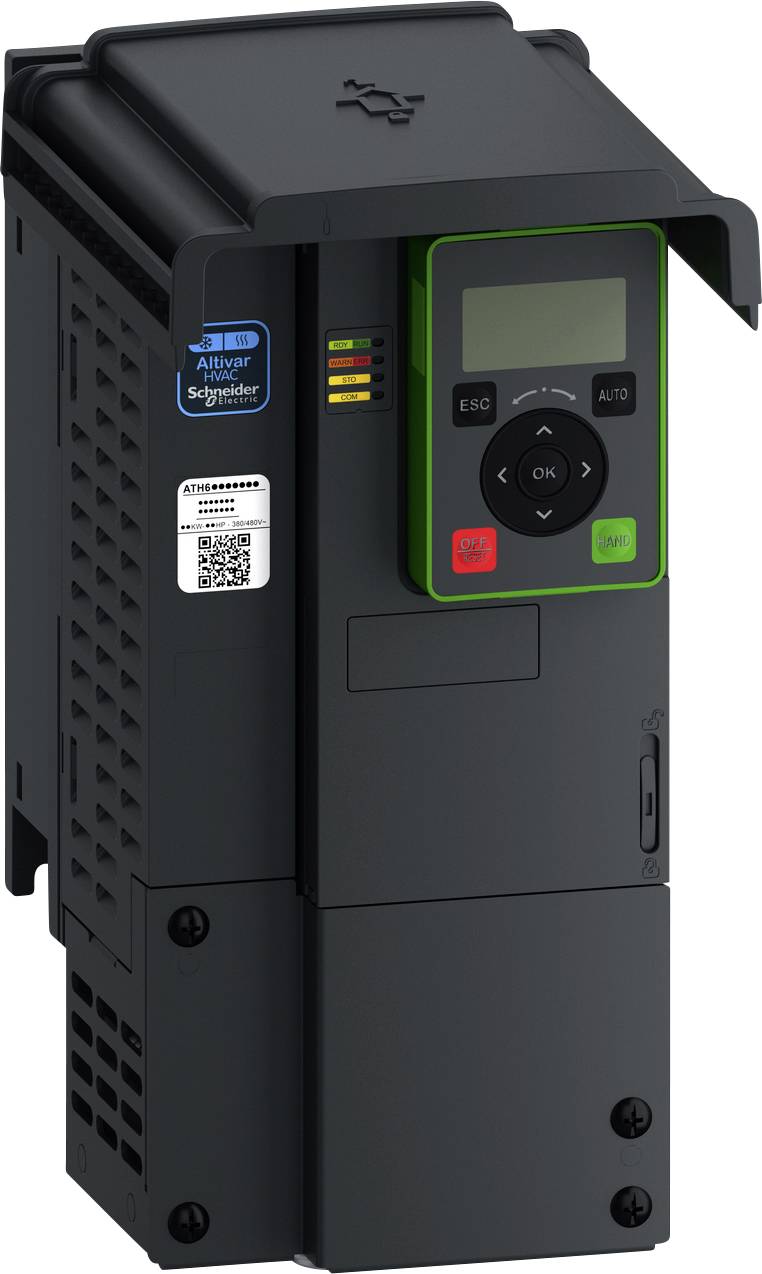

Black Schneider Electric Altivar drive with LCD keypad, status lights, and control buttons.

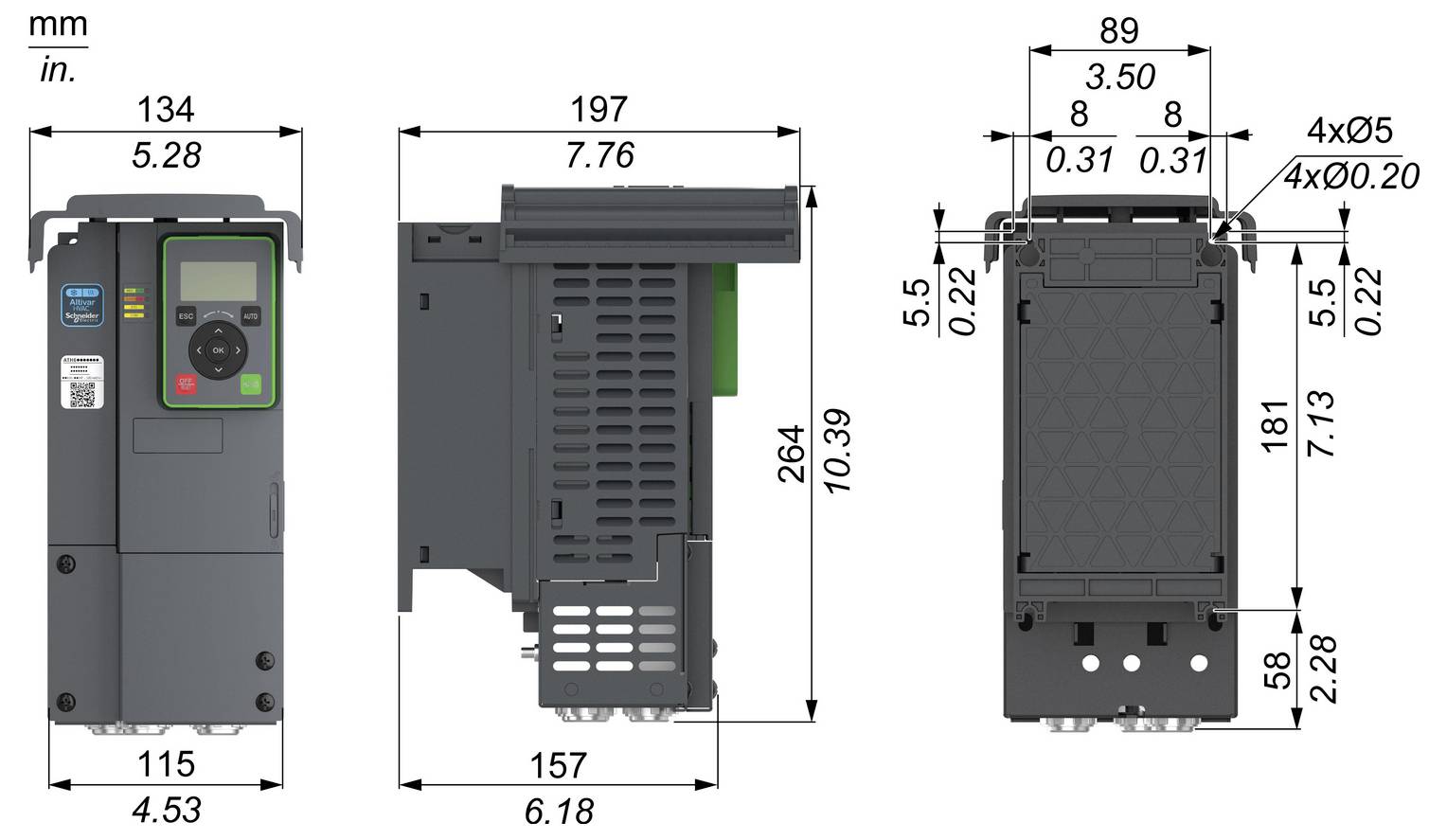

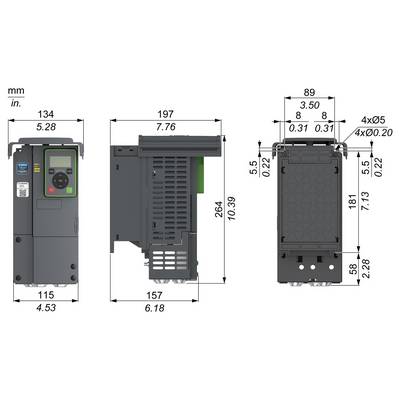

Dimensioned technical drawing of a control device shown front, side, and rear views with measurements in mm and inches.

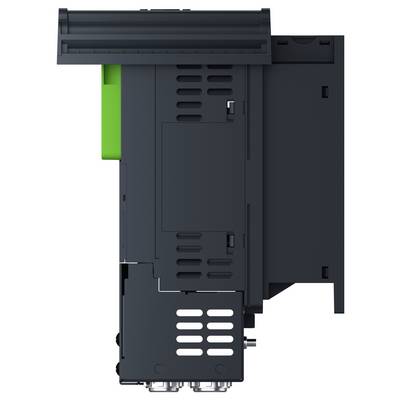

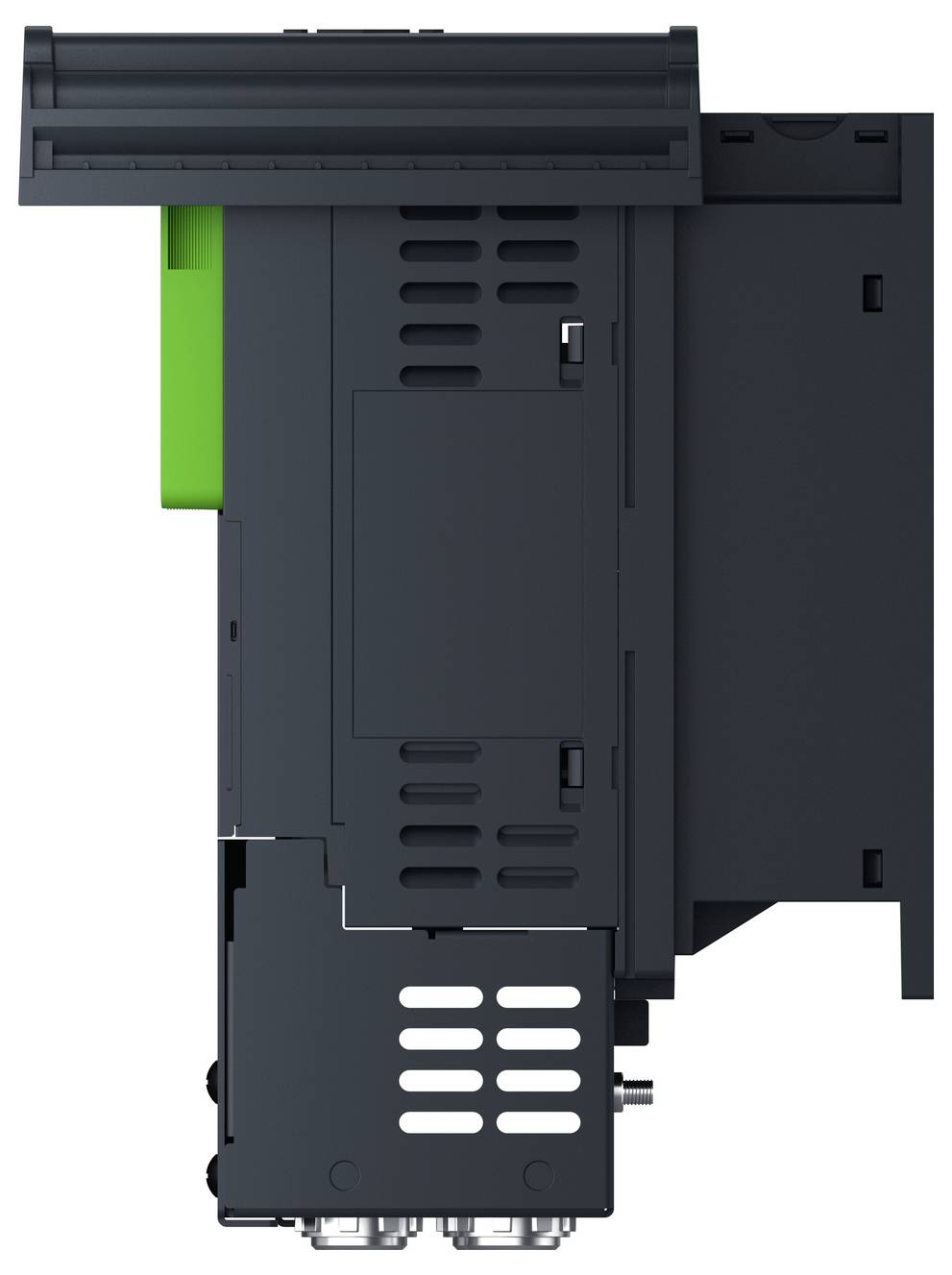

Dark gray industrial electronic module with a green side accent and vented front panel, shown isolated on a white background.

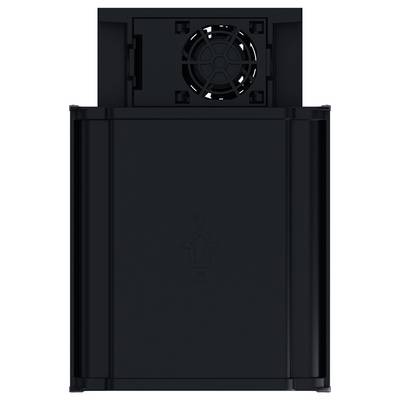

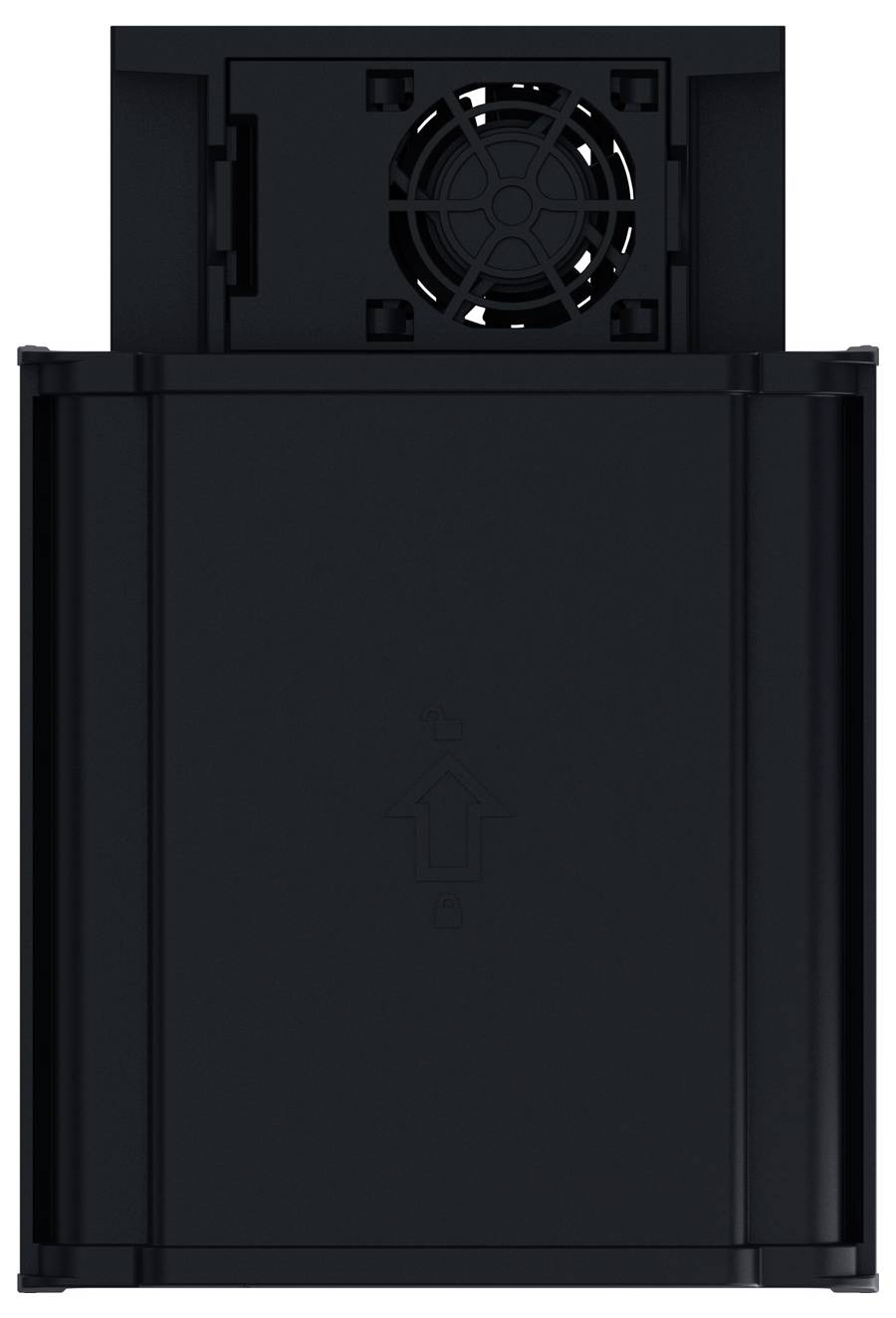

Black rectangular electronics enclosure with a top-mounted cooling fan and vented panel, shown front view on a white background.

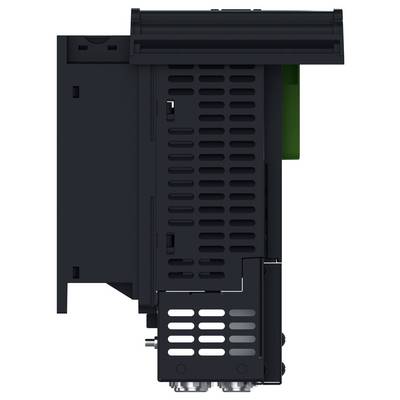

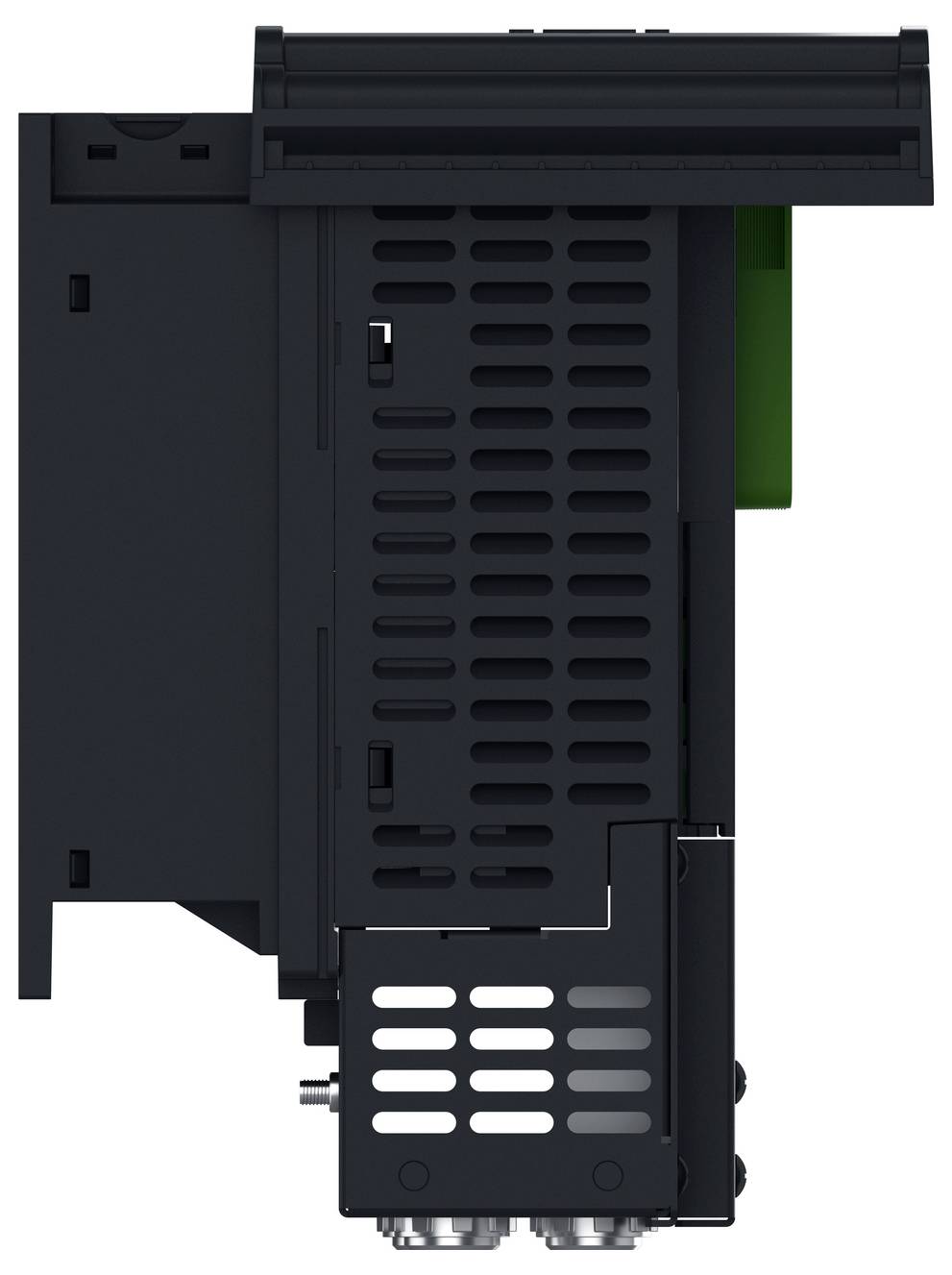

Black electronic module or industrial device with vented side panels and a green circuit board visible on the right, shown on a white background.

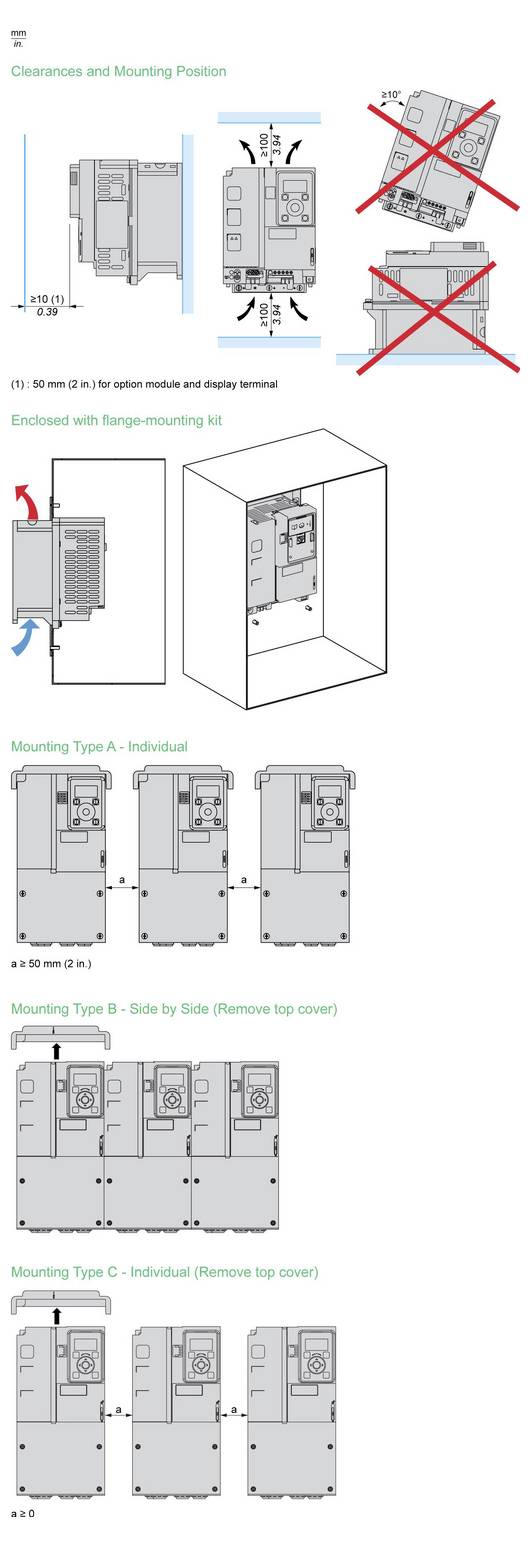

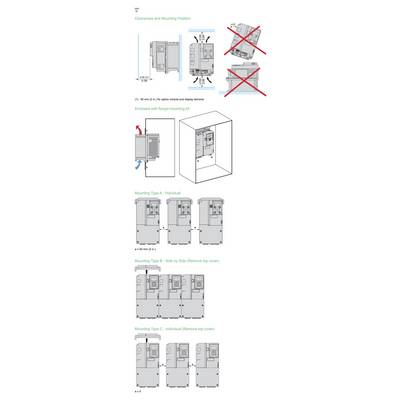

Diagram showing control cabinet installation options: clearances and mounting positions, with Type A individual, Type B side-by-side, and Type C individual mounting.

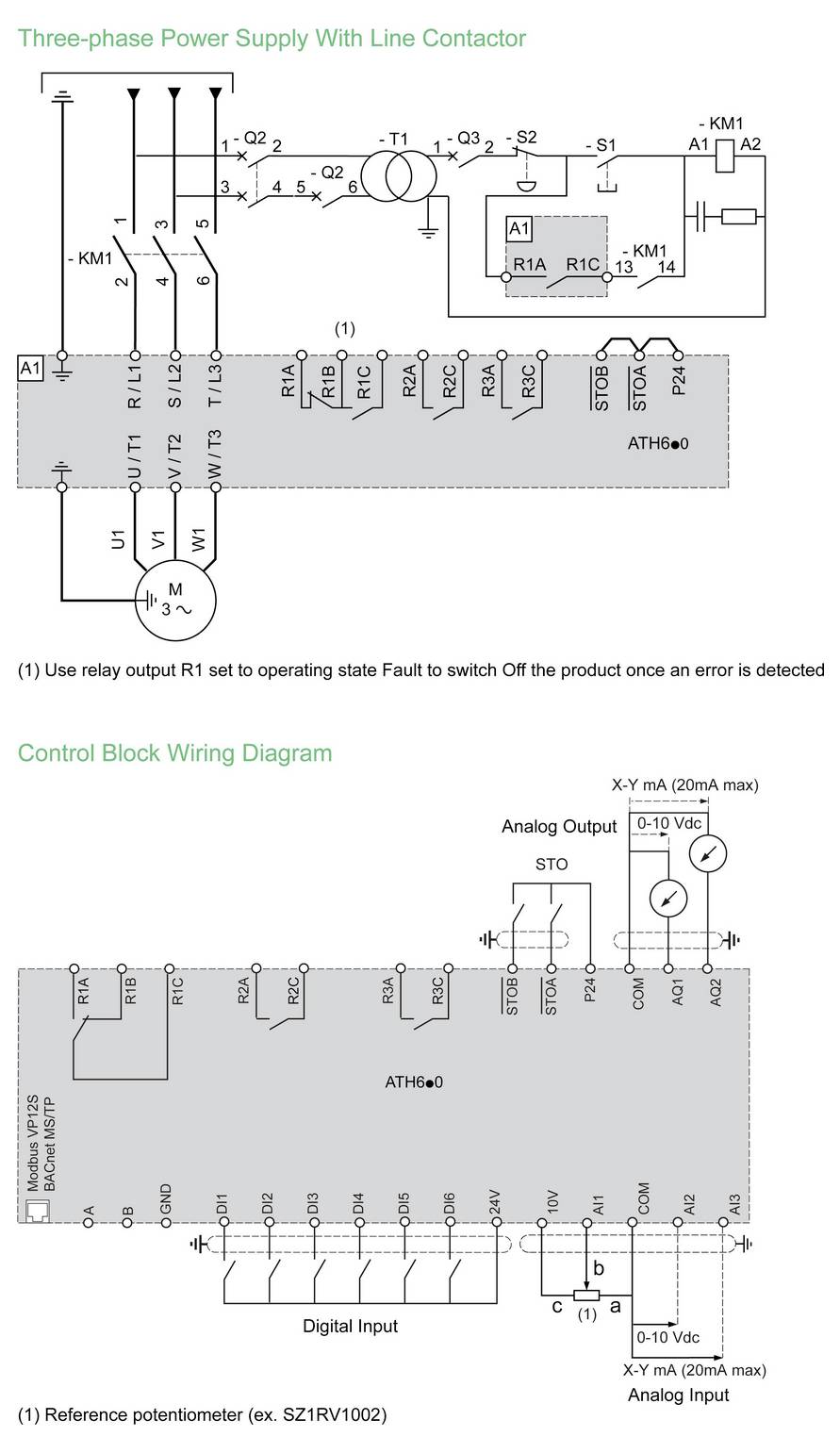

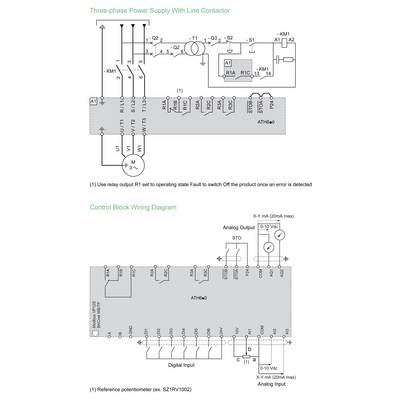

Two control block wiring diagrams for an ATmega-based controller: a three-phase power supply with line contactor and a control block showing analog and digital inputs with potentiometer wiring.

1/7

Datasheet (PDF)

Dispatches on Fri, 16 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 584.03 / piece)

€ 584.03

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Network frequency: 50~60 Hz
Mains voltage 380-480 V

Product type: Frequency inverter

Output rating (max.): 0.75 kW

Max. frequency: 400 Hz

Network: 3-phase

Frequency range: 400 Hz (max)

Depth: 197 mm

Height: 264 mm

Width: 134 mm

: IP21

Type: ATH630U07N4

Dim: (W x H x D) 134 x 264 x 197 mm

Manufacturer part #: ATH630U07N4

: 134 mm

: 264 mm

: 197 mm

: TRUE

: 8

: 0

: 3

: 2

: FALSE

: 0

: 0

: 0

: 2

: 0

: 0

: 0

: 1

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: FALSE

: FALSE

: FALSE

: TRUE

: IP21

: TRUE

: FALSE

: FALSE

: 380-480 V

: 50/60 Hz

: FALSE

: 0

: U converter

: 3

: 3

: FALSE

: TRUE

: FALSE

: 400 Hz

: 0.75 kW

: 0.75 kW

: 10 %

: 5 %

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 480 V

: 2.2 A

: TRUE

Documents & Downloads

Datasheet

Datasheet 3820660 Schneider Electric Frequency inverter 0.75 kW 3-phase

User & Safety Instructions

User & Safety Instructions 3820660 Schneider Electric Frequency inverter 0.75 kW 3-phase

Information

Repairability/durability data sheet 3820660 Schneider Electric Frequency inverter 0.75 kW 3-phase

Conformity certificate

Conformity certificate 3820660 Schneider Electric Frequency inverter 0.75 kW 3-phase

Description

The Altivar HVAC ATH600 series includes frequency converters designed for HVAC applications in commercial, healthcare, plant and data centers to supply asynchronous and synchronous motors. With protection class IP21/UL type 1 degree of protection, the ATH630 is suiteable for control panel and wall mounting. IT supplies 0.75kW/1PS for motors, for normal operation at a nominal voltage of 380 to 480 V. It is resistant to environmental and operating loads and conforms to the standards IEC 60721-3-3 Class 3C3 and Class 3S3. It has coated PCBs. Used without additional cooling at temperatures of up to 60 °C. The integrated functions optimize your design, installation and start-up, integrated EMC filters, harmonic filtering, certified STO, certified cyber security and the suitability for the refrigerants A2L and A3. Many HVAC functions are integrated to simplify automation systems and application management (e.g. compressors, pumps and fans). The ATH600 has a native Modbus, BACnet MS/TP serial interface and BACnet/IP connectivity with optional communication module of the protection class. The dimensions are 134mm (width), 197mm (depth), 264mm (height), and it weighs 2.3kg. The ATH600 is made of more than 20% plastic and the aluminum is ASI-certified. Altivar HVAC ATH600 meets HVAC requirements and covers pumps, fans, and compressors. It conforms to the standards IEC/EN 61800-5-1 and IEC/EN 61800-3, IEC 61000-3-12 and has the certifications UL, cUL, UKCA, RCM, EAC, KCC and ATEX. Mounting accessories such as flange mounting kits and external options (motor reactors, additional EMC filters, passive filters) are available for Altivar HVAC ATH600 frequency converters according to the rated power of the frequency converter. The packaging is made from recycled cardboard and does not contain a single-use plastic. It is designed for vertical installation (+/- 10°) on a plate and has 4 mounting holes. The ATH600 offers an optimized design for compact solutions, fast start-up, as well as energy savings through highly efficient motor control and power measurement. Altivar HVAC ATH600 optimizes performance, increases reliability and ensures the future.
