Schneider Electric Frequency inverter 3 kW 3-phase

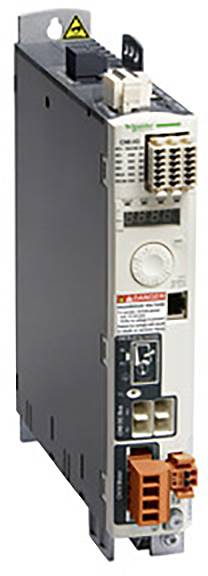

LXM32 Lexium 32 servo drive servo amplifier. This single-channel servo amplifier was designed to improve the machine's performance through optimized motor control and to simplify the installation with its compact design in book design. This series Compact is characterized by the control by digital logic or analogue inputs and outputs. Operation modes such as manual driving, electronic transmission, speed and current control are available. STO is integrated as a safety function. The supply is done by three-phase connection to networks with 200-240/380-480 VAC. An EMC Level C3 line filter is installed. To control a servo motor, a continuous current of 10 A and a peak current of up to 30 A is available, WAS means a power of up to 3 kW (depending on voltage). In connection with the servo motors of the series BSH and BMH, optimum operation of the motion servo controller is ensured. Thanks to the Green-Premium eco-label, you can get detailed information on material content, environmental impact and circulation attributes that support your sustainability goals.

This text is machine translated.
