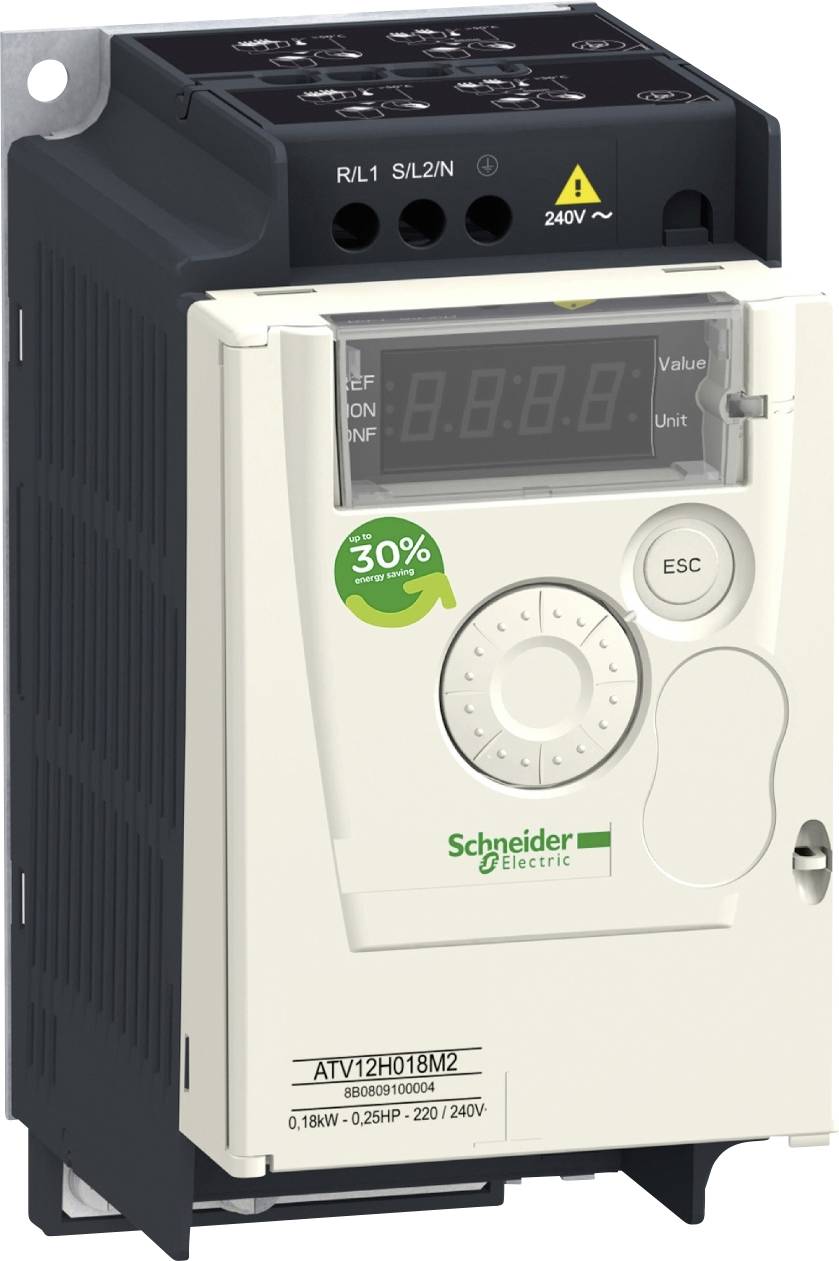

Schneider Electric Frequency inverter ATV12H018M2 0.18 kW 1-phase 200 V, 240 V
EAN:
Part number:
Item no:
Technical specifications
- Communication protocol: Modbus
- Nominal auxiliary voltage [UH,nom]: 200-240 V -15 - +10 %
- Number of digital inputs: 4
- Number of analogue inputs: 1
- Number of analogue outputs: 1
- Number of logic outputs: 2
- Rated clock frequency 4 kHz
- Operating ambient temperature: -10…40 °C upper cover removed on drive; 40…60 °C with current derating at 2.2% per degree
- Engine power (HP): 0.25 HP
- Output rated current 1.4 A at 4 kHz
- Noise level 0 dB
- Design: On base plate
- Integrated fan: None
- Starting torque 0.8 Nm
- Input voltage
200 V
240 V
- Product type
Frequency inverter
- Output rating (max.)
0.18 kW
- Max. frequency
400 Hz
- Min. frequency
0.5 Hz
- Network
1-phase
- Frequency range
0.5 Hz - 400 Hz
- Nominal current
3.4 A
- Depth
102.2 mm
- Height
143 mm
- Width
72 mm
IP20
- Type
ATV12H018M2
- Dim
(W x H x D) 72 x 143 x 102.2 mm
- Manufacturer part #
ATV12H018M2
- Weight
0.7 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2374175 Schneider Electric Frequency inverter ATV12H018M2 0.18 kW 1-phase 200 V, 240 V
Description
Frequency converter ATV12 with heat sink. Output KW 0.18 kW. Supply voltage 1-phase 200-240 V 50/60 Hz. Easy installation according to the plug & drive principle, with its compact design, its integrated functions and its version on a base plate. Predestined for use in simple industrial machines as well as in certain machines for the consumer goods sector. Numerous possibilities for loading, editing and saving the configuration of the converter with the various tools. For example, the start-up software SoMove, the software SoMove Mobile for mobile phones, the distributed terminals and the configuration tools Simple Loader and Multi-Loader. Factory preset converter for immediate start-up. Load and save a configuration into the converter, even when it is powered down, with the configuration tool -Multi-Loader-, without removing the device from its packaging. Excellent strength under difficult environmental conditions (50 °C in continuous operation).
