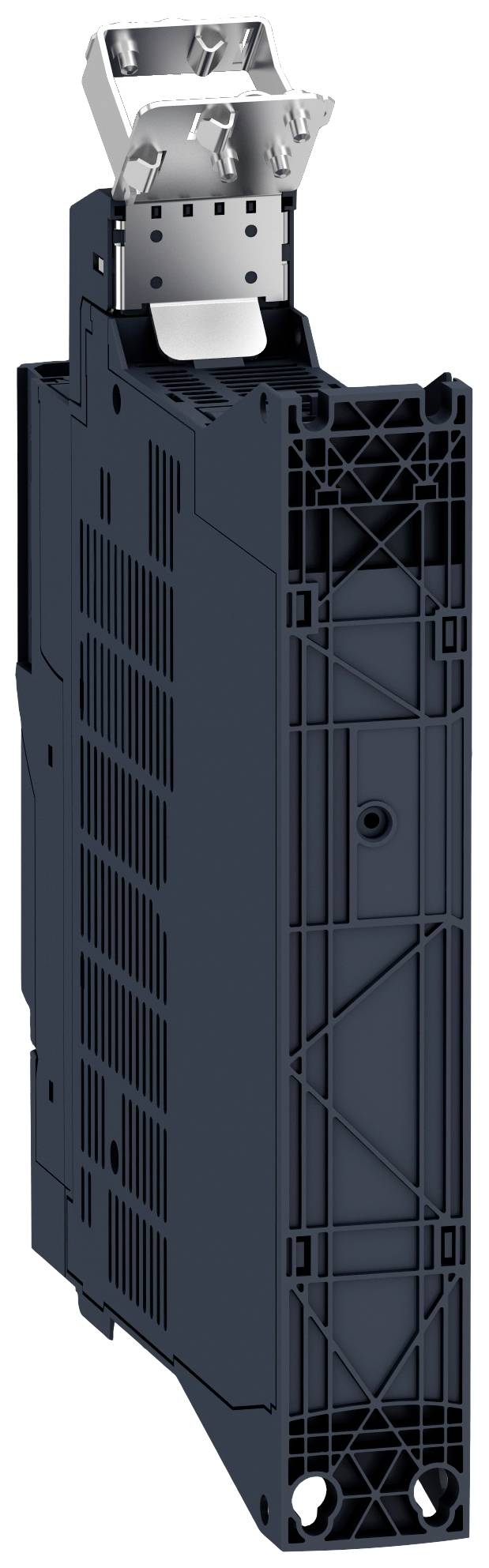

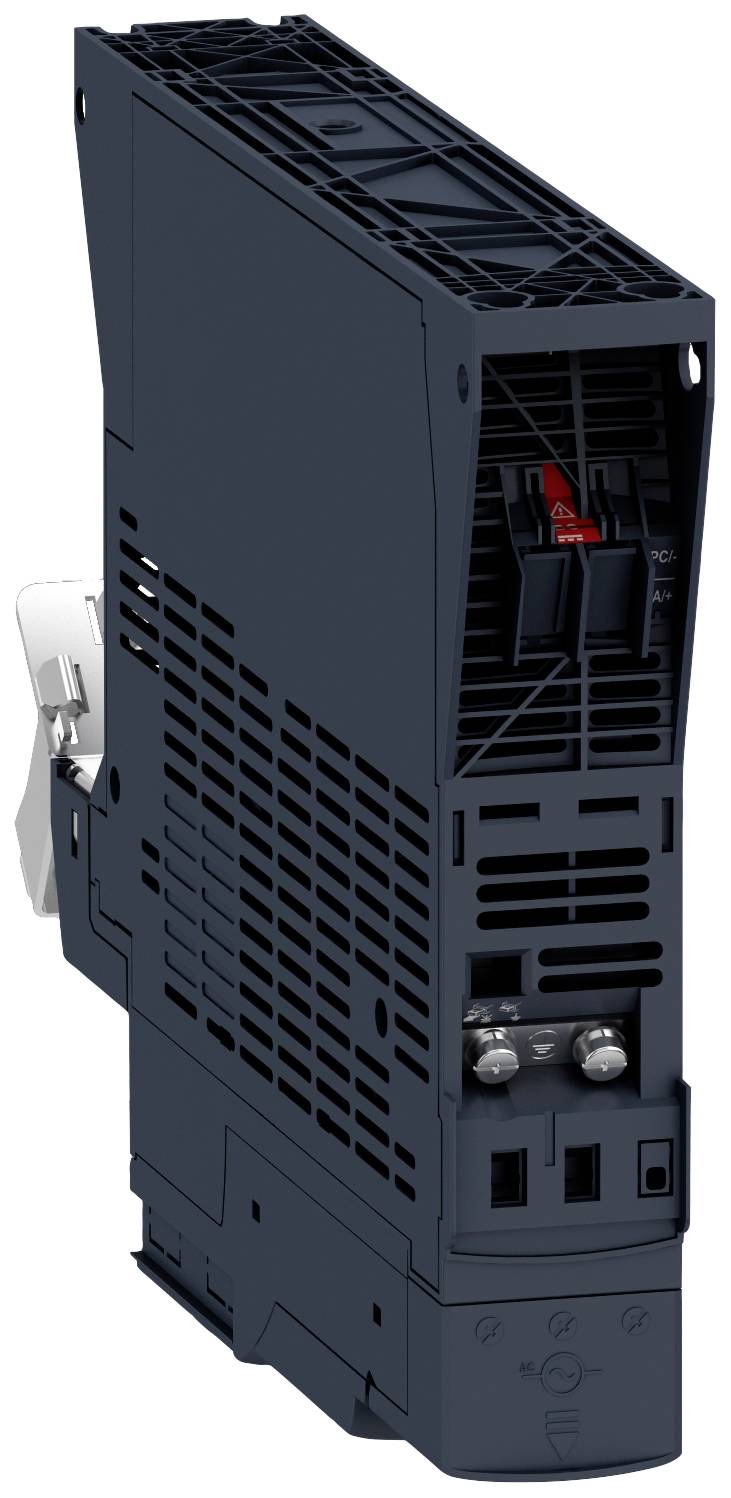

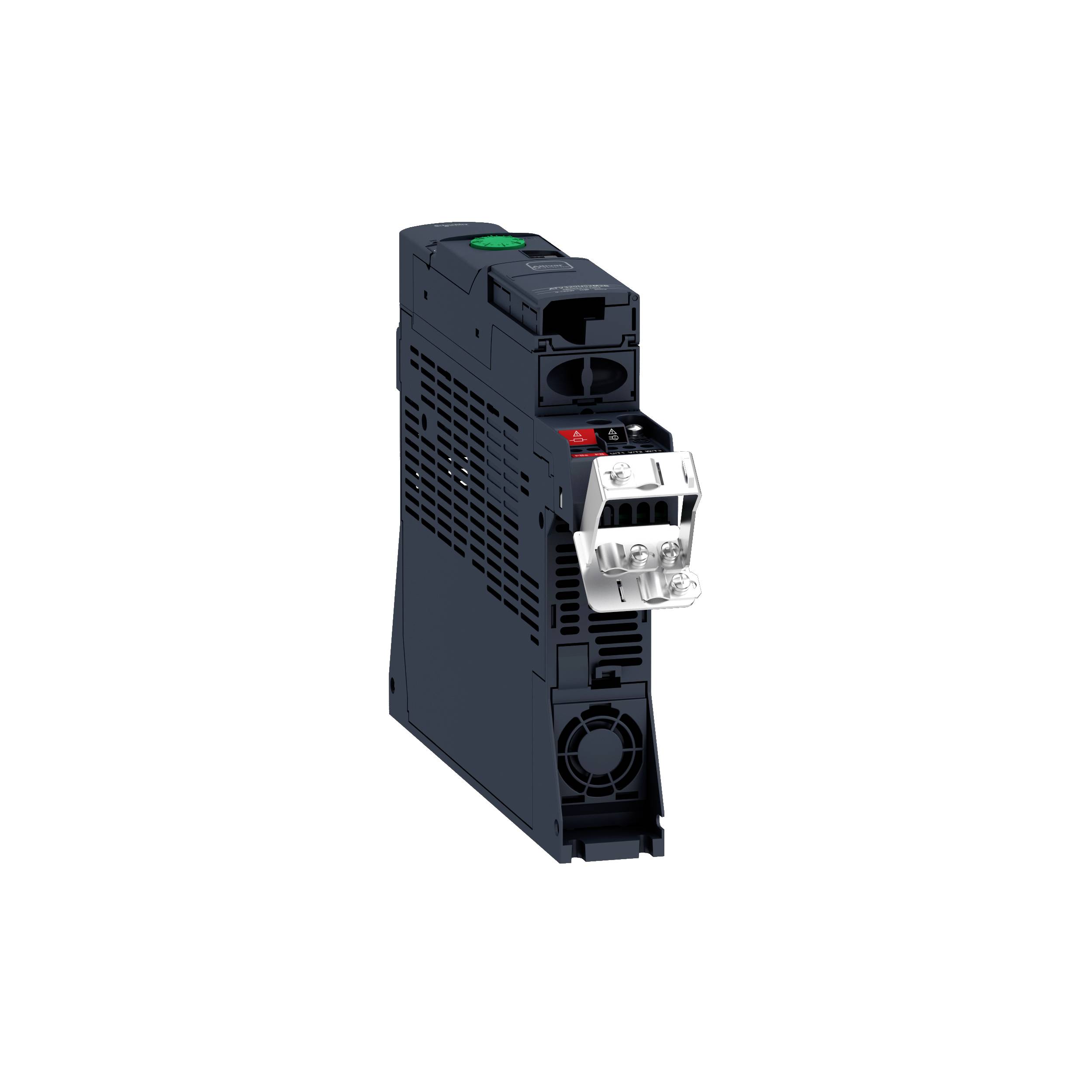

Schneider Electric Frequency inverter ATV320U07N4B 0.75 kW 3-phase
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 483.19 / piece)
€ 483.19
plus VAT.
14-day return policy included
Technical specifications
- Product type
Frequency inverter
- Output rating (max.)
0.75 kW
- Network
3-phase
- Depth
245 mm
- Height
325 mm
- Width
45 mm
- Type
ATV320U07N4B
- Filter class
C2
- Dim
(W x H x D) 45 x 325 x 245 mm
- Manufacturer part #
ATV320U07N4B
45 mm
325 mm
245 mm
TRUE
6
1
3
1
FALSE
1
0
0
1
0
0
0
1
FALSE
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
TRUE
FALSE
TRUE
FALSE
TRUE
IP20
TRUE
FALSE
FALSE
50/60 Hz
TRUE
0
U converter
3
3
FALSE
TRUE
FALSE
599 Hz
0.75 kW
0.75 kW
10 %
5 %
FALSE
FALSE
TRUE
FALSE
FALSE
TRUE
FALSE
FALSE
500 V
2.3 A
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2914186 Schneider Electric Frequency inverter ATV320U07N4B 0.75 kW 3-phase
Datasheet 2914186 Schneider Electric Frequency inverter ATV320U07N4B 0.75 kW 3-phase
User & Safety Instructions
User & Safety Instructions 2914186 Schneider Electric Frequency inverter ATV320U07N4B 0.75 kW 3-phase
Information
Information 2914186 Schneider Electric Frequency inverter ATV320U07N4B 0.75 kW 3-phase
Information 2914186 Schneider Electric Frequency inverter ATV320U07N4B 0.75 kW 3-phase
Information 2914186 Schneider Electric Frequency inverter ATV320U07N4B 0.75 kW 3-phase
Information 2914186 Schneider Electric Frequency inverter ATV320U07N4B 0.75 kW 3-phase
Description
Frequency converter ATV320, book. Dimensions 45 x 325 x 245 mm, power KW 0.75 kW. Supply voltage 3-phase, 380-500 V 50/60 Hz with integrated EMC filter. Rated supply voltage, min. U1, max. U2 200 (U1)-240 V (U2), 380 (U1)-500 V (U2) Converters are supplied with an integrated category C2 EMC filter. The filter can be switched off. Converters are supplied with an EMC plate for customer-side mounting. Description Integrated safety technology with 5 functions of safely switched-off torque (STO), safe retaining 1 (SS1), safely reduced speed (SLS), safe protective door lock (GDL), safe maximum speed (SMS). Operation of asynchronous and synchronous motors in open loop. SVC control (sensorless vector control) brings the highest rotation number and stability U/F regulation, U/F2 control, energy-saving function. Max. Frequency 599 Hz. Easiest commissioning, intuitive operation as well as by Plug & Drive, default to the most common applications. Options for loading, editing, backing up the configuration of the converter with tools such as the SoMove commissioning software, the distributed terminals and the configuration tools -Simple-Loader- and -Multi-Loader-. Radio noise filter class A integrated, can be deactivated. For use with IT networks. 6 logic inputs can be assigned multiple functions, 3 analog inputs, of which 2 switchable as digital inputs. Built-in brake module allows 4-quadrant operation without any retrofitting.
