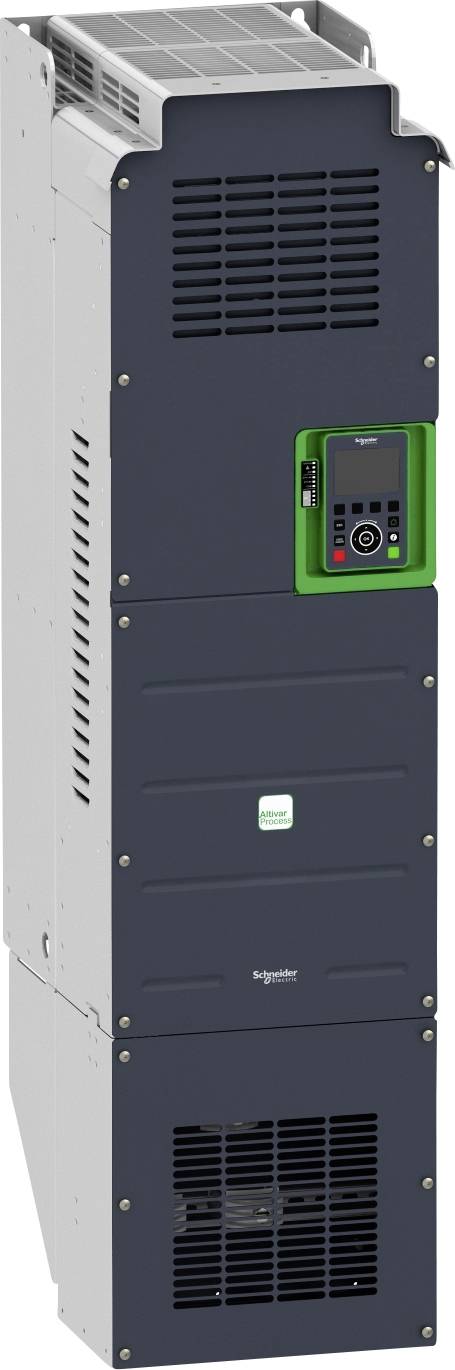

Image similar
Image similar
Schneider Electric Frequency inverter ATV630C13N4 132 kW 3-phase 380 V, 480 V
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Communication protocol: Ethernet; Modbus TCP; Modbus serial
- Nominal auxiliary voltage [UH,nom]: 380-480V -15 - +10 %
- Number of digital inputs: 8
- Number of analogue inputs: 3
- Number of analogue outputs: 2
- Rated frequency 2.5 kHz
- Apparent power 161.4 kVA at 480 V (standard overload); 121.8 kVA at 480 V (high overload)
- Operating ambient temperature -15…50 °C (without load reduction); 50…60 °C (with)
- Engine Power (HP): 200 HP standard overload; 150 HP high
- Output rated current 250 A at 2.5 kHz for standard overload; 211 A at 2.5 kHz for high overload
- Noise level 69.9 dB
- Cooling air volume: 600 m3/h.
- Input voltage
380 V
480 V
- Product type
Frequency inverter
- Output rating (max.)
132 kW
- Max. frequency
0.5 kHz
- Min. frequency
0.0001 kHz
- Network
3-phase
- Frequency range
0.0001 kHz - 0.5 kHz
- Nominal current
237 A
- Depth
390 mm
- Height
852 mm
- Width
320 mm
IP00
IP21
- Type
ATV630C13N4
- Filter class
C3
- Dim
(W x H x D) 320 x 852 x 390 mm
- Manufacturer part #
ATV630C13N4
- Weight
82 kg
- UKCA
yes
