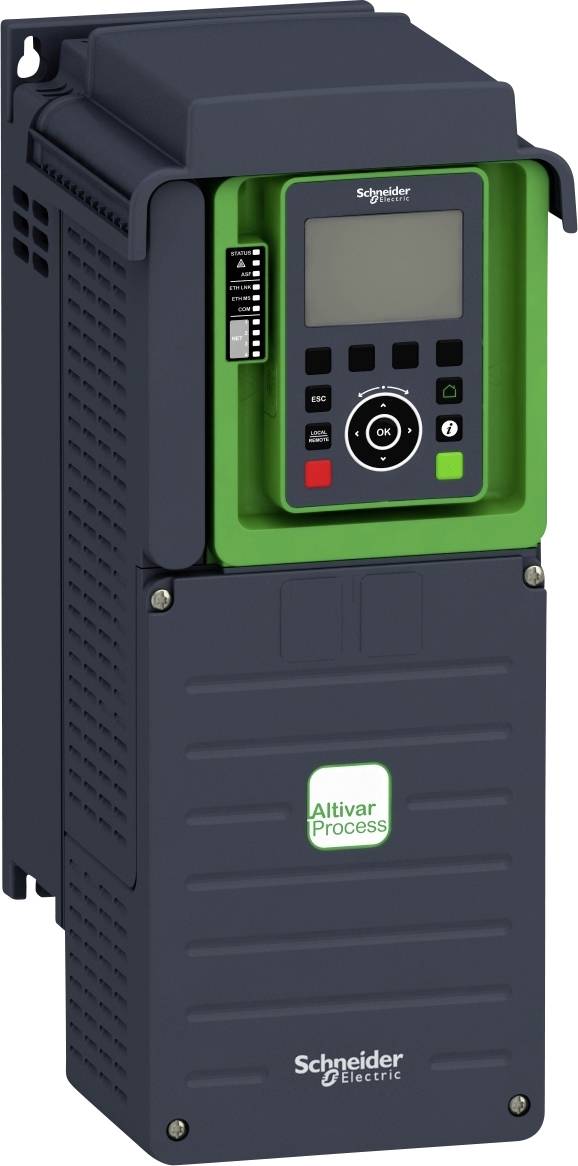

Image similar
Image similar
Schneider Electric Frequency inverter ATV630D11N4 11 kW 3-phase 380 V, 480 V
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Communication protocol: Modbus TCP; Ethernet; Modbus. Serial
- Nominal auxiliary voltage [UH,nom]: 380-480V -15 - +10 %
- Number of digital inputs: 8
- Number of analogue inputs: 3
- Number of analogue outputs: 2
- Rated clock frequency 4 kHz
- Apparent power 14.1 kVA at 480 V (standard overload); 10.4 kVA at 480 V (high overload)
- Operating ambient temperature -15…50 °C (without load reduction); 50…60 °C (with)
- Engine Power (HP): 15 HP standard overload; 10 HP high
- Output rated current: 23.5 A at 4 kHz for standard overload; 16.5 A at 4 kHz for high overload
- Noise level 56 dB
- Cooling air volume: 103 m3/h.
- Input voltage
380 V
480 V
- Product type
Frequency inverter
- Output rating (max.)
11 kW
- Max. frequency
0.5 kHz
- Min. frequency
0.0001 kHz
- Network
3-phase
- Frequency range
0.0001 kHz - 0.5 kHz
- Nominal current
19.8 A
- Depth
233 mm
- Height
409 mm
- Width
171 mm
IP21
- Type
ATV630D11N4
- Filter class
C2
- Dim
(W x H x D) 171 x 409 x 233 mm
- Manufacturer part #
ATV630D11N4
- Weight
7.7 kg
- UKCA
yes
