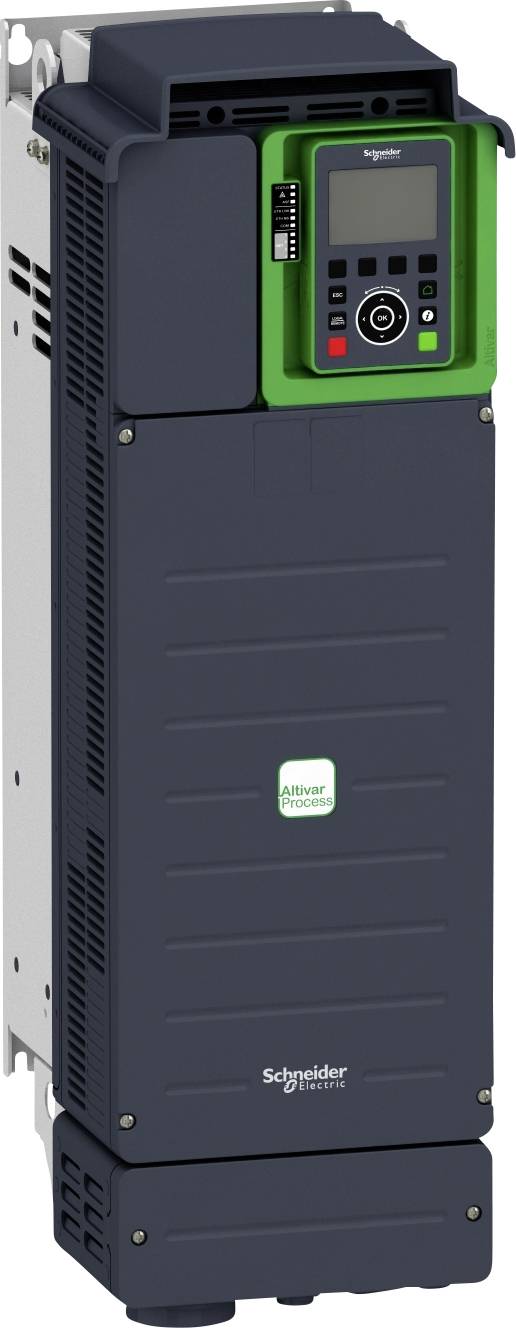

Schneider Electric Frequency inverter ATV630D37N4 37 kW 3-phase 380 V, 480 V
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Communication protocol: Ethernet; Modbus TCP; Modbus serial
- Nominal auxiliary voltage [UH,nom]: 380-480V -15 - +10 %
- Number of digital inputs: 8
- Number of analogue inputs: 3
- Number of analogue outputs: 2
- Rated clock frequency 4 kHz
- Apparent power 47.6 kVA at 480 V (standard overload); 40.2 kVA at 480 V (high overload)
- Operating ambient temperature -15…50 °C (without load reduction); 50…60 °C (with)
- Engine Power (HP): 50 HP standard overload; 40 HP high
- Output rated current: 74.5 A at 4 kHz for standard overload; 61.5 A at 4 kHz for high overload
- Noise level 63.5 dB
- Cooling air volume 240 m3/h.
- Input voltage
380 V
480 V
- Product type
Frequency inverter
- Output rating (max.)
37 kW
- Max. frequency
0.5 kHz
- Min. frequency
0.0001 kHz
- Network
3-phase
- Frequency range
0.0001 kHz - 0.5 kHz
- Nominal current
66.2 A
- Depth
271 mm
- Height
673 mm
- Width
226 mm
IP21
- Type
ATV630D37N4
- Filter class
C2
- Dim
(W x H x D) 226 x 673 x 271 mm
- Manufacturer part #
ATV630D37N4
- Weight
28.2 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2373967 Schneider Electric Frequency inverter ATV630D37N4 37 kW 3-phase 380 V, 480 V
