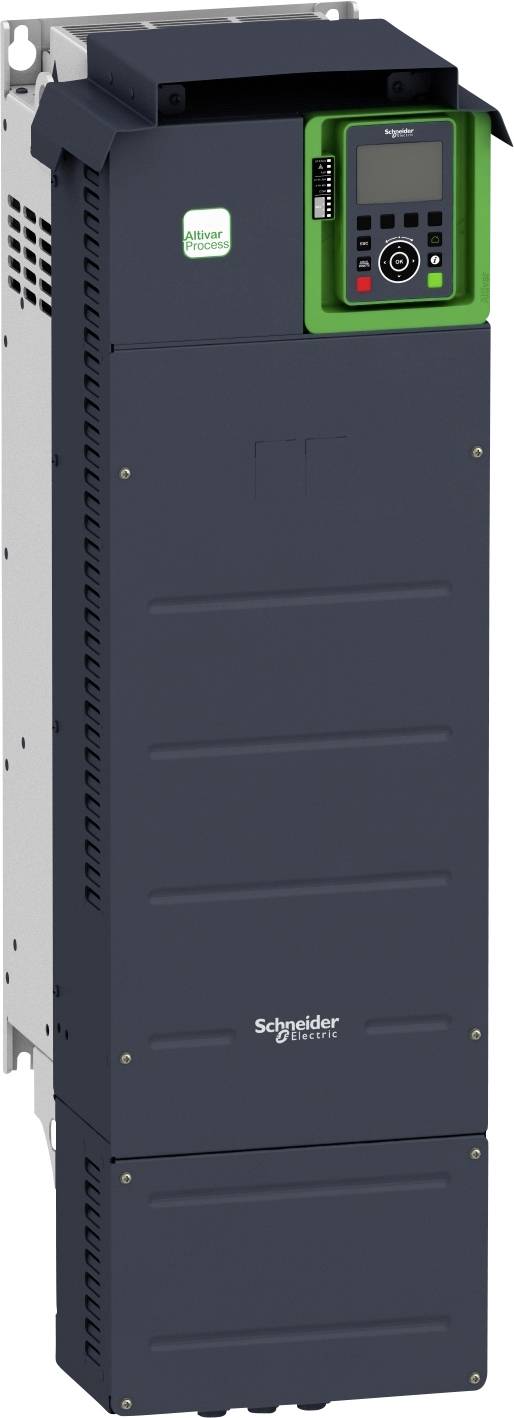

Image similar
Schneider Electric Frequency inverter ATV630D75N4 75 kW 3-phase 380 V, 480 V
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Communication protocol: Ethernet; Modbus. Serial; Modbus TCP
- Nominal auxiliary voltage [UH,nom]: 380-480V -15 - +10 %
- Number of digital inputs: 8
- Number of analogue inputs: 3
- Number of analogue outputs: 2
- Rated frequency 2.5 kHz
- Apparent power 93.7 kVA at 480 V (standard overload); 72.2 kVA at 480 V (high overload)
- Operating ambient temperature -15…50 °C (without load reduction); 50…60 °C (with)
- Engine Power (HP): 100 HP standard overload; 75 HP high
- Output Rated current: 145 A at 2.5 kHz for standard overload; 106 A at 2.5 kHz for high overload
- Noise level 62.4 dB
- Cooling air volume: 295 m3/h.
- Input voltage
380 V
480 V
- Product type
Frequency inverter
- Output rating (max.)
75 kW
- Max. frequency
0.5 kHz
- Min. frequency
0.0001 kHz
- Network
3-phase
- Frequency range
0.0001 kHz - 0.5 kHz
- Nominal current
131.3 A
- Depth
323 mm
- Height
922 mm
- Width
290 mm
IP21
- Type
ATV630D75N4
- Filter class
C3
- Dim
(W x H x D) 290 x 922 x 323 mm
- Manufacturer part #
ATV630D75N4
- Weight
58 kg
- UKCA
yes
