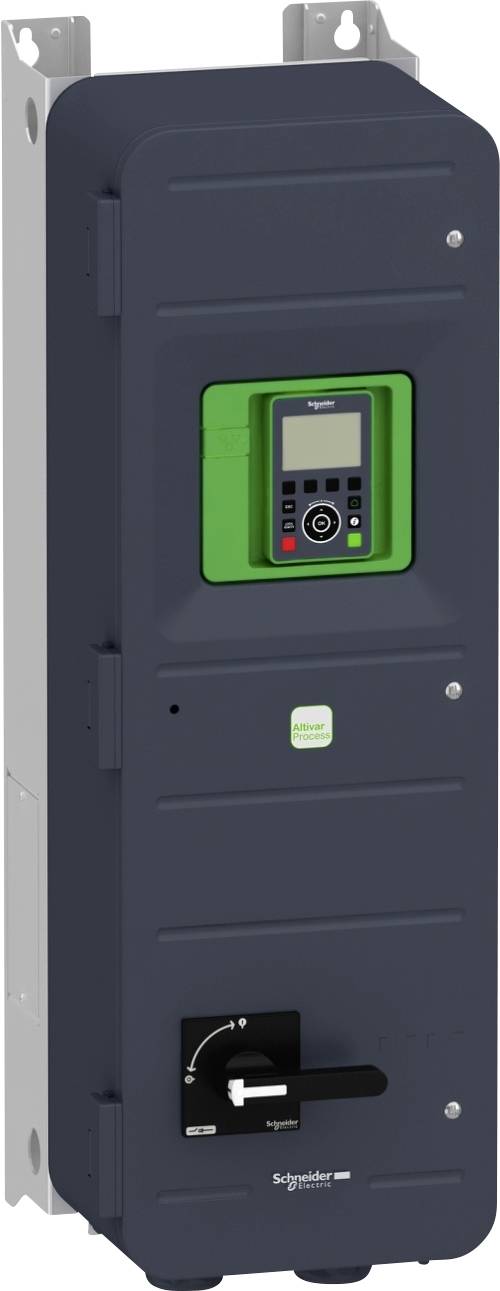

Schneider Electric Frequency inverter ATV650D37N4E 37 kW 3-phase 380 V, 480 V
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Surface-mounted
- Communication protocol: Modbus TCP; Ethernet; Ethernet
- Nominal auxiliary voltage [UH,nom]: 380-480V -15 - +10 %
- Number of digital inputs: 8
- Number of analogue inputs: 3
- Number of analogue outputs: 2
- Rated clock frequency 4 kHz
- Apparent power 40.2 kVA at 480 V (high overload); 47.6 kVA at 480 V (standard overload)
- Operating ambient temperature 40…50 °C (with); -15…40 °C (without load reduction)
- Engine Power (HP): 40 HP high overload; 50 HP standard overload
- Output Rated current: 59 A at 4 kHz for high overload; 72 A at 4 kHz for standard overload
- Noise level 69.7 dB
- Input voltage
380 V
480 V
- Product type
Frequency inverter
- Output rating (max.)
37 kW
- Max. frequency
0.5 kHz
- Min. frequency
0.0001 kHz
- Network
3-phase
- Frequency range
0.0001 kHz - 0.5 kHz
- Nominal current
66.2 A
- Depth
401 mm
- Height
910 mm
- Width
290 mm
IP55
- Type
ATV650D37N4E
- Filter class
C2
- Dim
(W x H x D) 290 x 910 x 401 mm
- Manufacturer part #
ATV650D37N4E
- Weight
50 kg
- UKCA
yes
