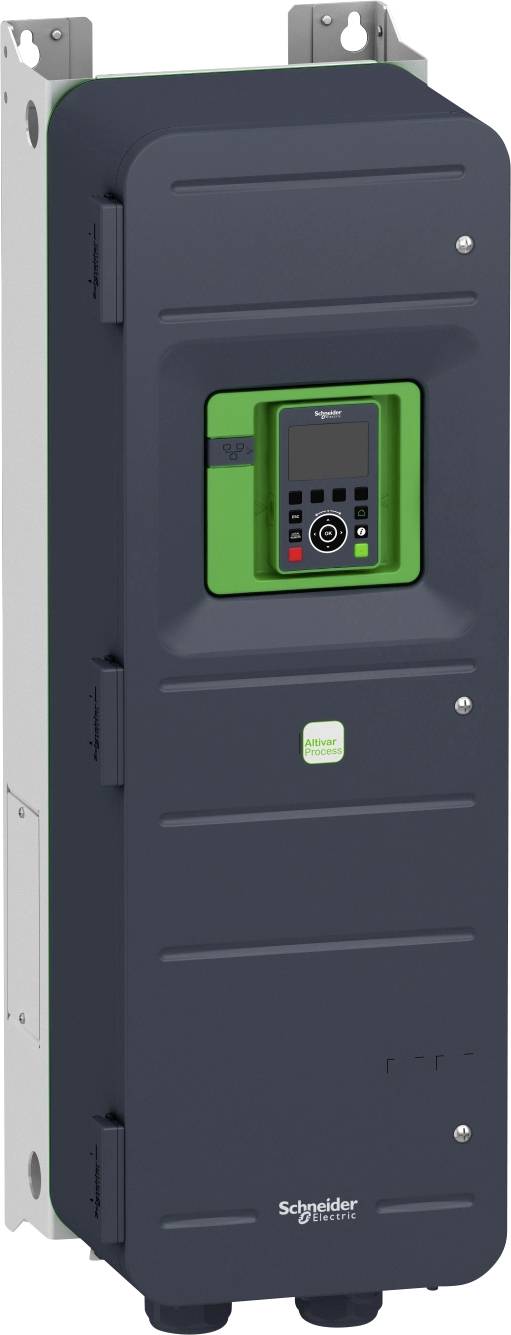

Schneider Electric Frequency inverter ATV650D45N4 45 kW 3-phase
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- 4-quadrant operation possible: Yes
- Number of analog outputs: 2
- Number of analog inputs: 3
- Number of digital outputs: 0
- Number of digital inputs: 6
- Number of HW interfaces Industrial Ethernet: 1
- Number of HW interfaces in parallel: 0
- Number of HW interfaces serial RS-232: 0
- Number of HW interfaces serial RS-422: 0
- Number of HW interfaces serial RS-485: 1
- Number of HW interfaces serial TTY: 0
- Number of HW interfaces Other: 0
- Number of HW interfaces USB: 0
- Number of PROFINET interfaces: 0
- Type of converter: U-converter
- Output phase number: 3
- Integrated brake chopper: No.
- Input phase number: 3
- For industrial use: Yes
- For use in the home or commercial sector: Yes
- Max. Output output at linear load at rated output voltage: 45 kW
- Max. Power output at square. Load at rated output voltage: 45 kW
- Maximum output frequency: 500 Hz
- Maximum output voltage 480 V
- With control element: Yes
- With optical interface: No.
- With PC connection: No.
- Rated output current I2N 87 A
- Network frequency: 50~60 Hz
- Mains voltage 380-480 V
- Relative balanced line frequency tolerance: 5%
- Relative symmetrical line voltage tolerance: 10%
- Supports protocol for AS-Interface Safety at Work: No.
- Supports protocol for ASI: No.
- Supports protocol for BACnet: No.
- Supports protocol for CAN: No.
- Supports protocol for data highway: No.
- Supports protocol for DeviceNet: Yes
- Supports protocol for DeviceNet Safety: No.
- Supports Ethernet/IP protocol: Yes
- Supports protocol for FOUNDATION Fieldbus: No.
- Supports protocol for INTERBUS: No.
- Supports protocol for INTERBUS-Safety: No.
- Supports protocol for KNX: No.
- Supports protocol for LON: No.
- Supports protocol for Modbus: Yes
- Supports protocol for PROFIBUS: Yes
- Supports protocol for PROFINET CBA: No.
- Supports protocol for PROFINET IO: Yes
- Supports protocol for PROFIsafe: No.
- Supports protocol for SafetyBUS p: No.
- Supports protocol for SERCOS: No.
- Supports protocol for other bus systems: No.
- Supports protocol for SUCONET: No.
- Supports protocol for TCP/IP: Yes
- Product type
Frequency inverter
- Output rating (max.)
45 kW
- Network
3-phase
- Depth
340 mm
- Height
910 mm
- Width
290 mm
IP55
- Type
ATV650D45N4
- Dim

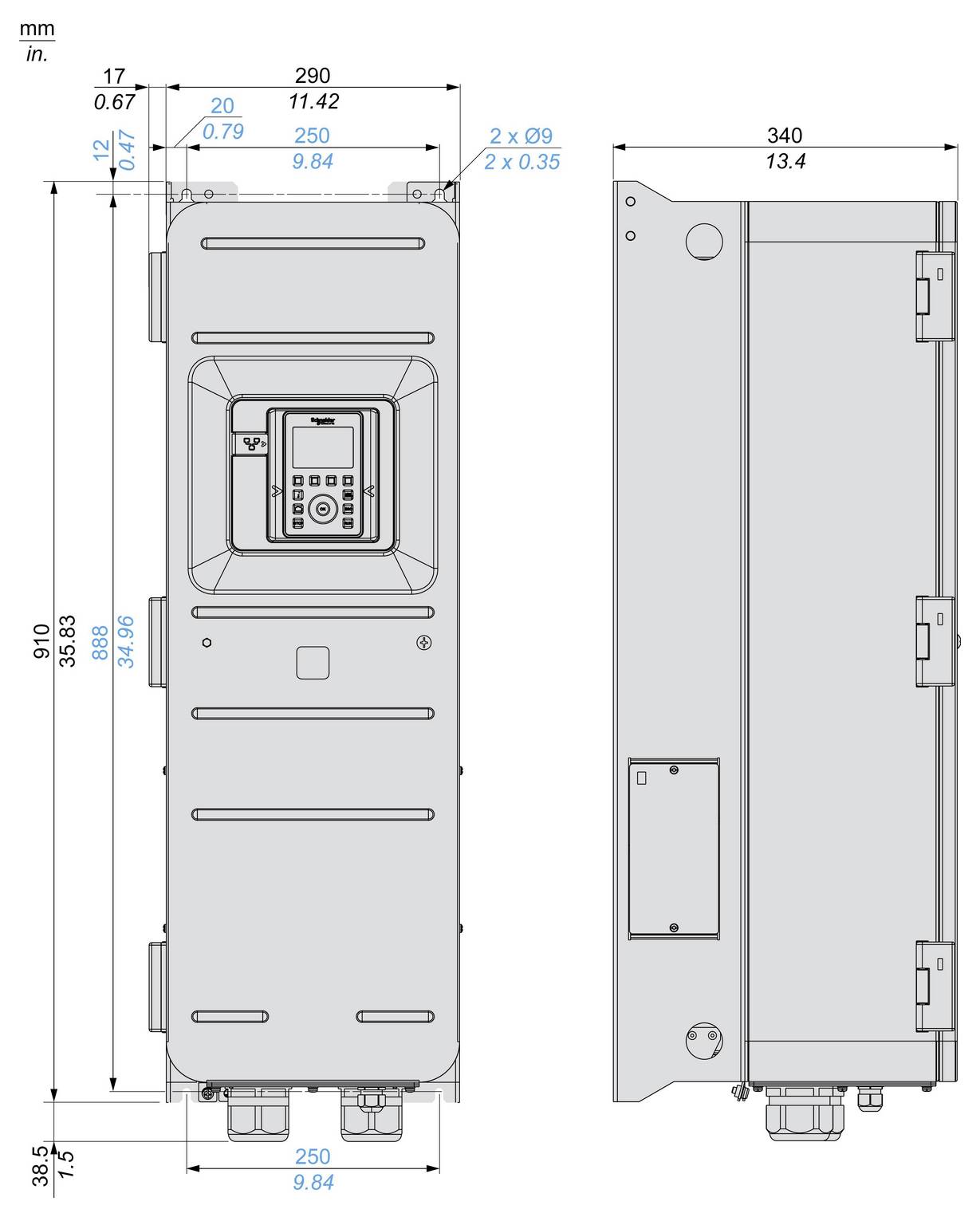

(W x H x D) 290 x 910 x 340 mm
- Manufacturer part #
ATV650D45N4
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3763349 Schneider Electric Frequency inverter ATV650D45N4 45 kW 3-phase
User & Safety Instructions
User & Safety Instructions 3763349 Schneider Electric Frequency inverter ATV650D45N4 45 kW 3-phase
Description
Altivar 600 process Frequency converter - converter for operation and protection of pumps. IP55 Frequency converter ATV650, 125 HP, with main switch. Dimensions 290 x 910 x 340 mm, power KW 45 kW. Output frequency 0,1-500 Hz. Overload in normal operation 110% for 60 s, overload in mode high overload 150% for 60 s (for 1 power class declassification). Asynchronous motor control types, constant torque, variable torque, optimized torque mode, PM synchronous motor, (Permanent magnet) Motor. Integrated safety function STO (safe start-up lock (Safe Torque Off) SIL3. Number of integrated I/O analog inputs 3. Analogue outputs 2. Digital inputs 8. Relay outputs 3. Integrated communication Modbus/TCP, serial Modbus interface. Configuration and control elements Distributed graphics operator terminal, integrated web server, DTM (Device Type Manager), SoMove software. Optional I/O expansion cards, relay output cards. Optional communication cards (Ethernet/IP and Modbus/TCP with two ports, CANopen Daisy Chain RJ45, Sub-D and screw terminals, PROFINET, Profibus DP V1 and DeviceNet).
