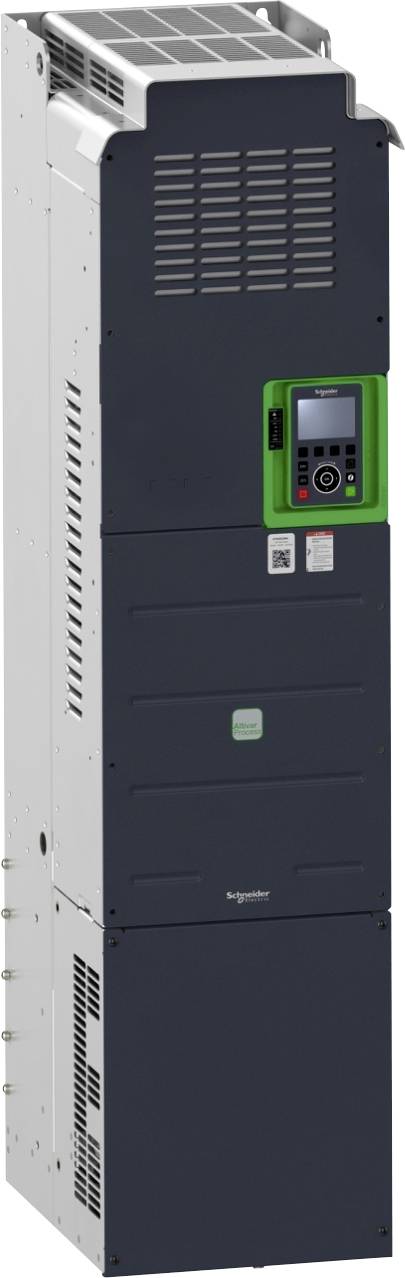

Schneider Electric Frequency inverter ATV930C13N4428 132 kW 3-phase
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- 4-quadrant operation possible: Yes
- Number of analog outputs: 2
- Number of analog inputs: 3
- Number of digital outputs: 1
- Number of digital inputs: 8
- Number of HW interfaces Industrial Ethernet: 0
- Number of HW interfaces in parallel: 0
- Number of HW interfaces serial RS-232: 0
- Number of HW interfaces serial RS-422: 0
- Number of HW interfaces serial RS-485: 3
- Number of HW interfaces serial TTY: 0
- Number of HW interfaces Other: 0
- Number of HW interfaces USB: 0
- Number of PROFINET interfaces: 0
- Type of converter: U-converter
- Output phase number: 3
- Integrated brake chopper: No.
- Input phase number: 3
- For industrial use: Yes
- For use in the home or commercial sector: Yes
- Max. Output output at linear load at rated output voltage: 132 kW
- Max. Power output at square. Load at rated output voltage: 132 kW
- Maximum output frequency: 500 Hz
- Maximum output voltage 480 V
- With control element: Yes
- With optical interface: Yes
- With PC connection: No.
- Rated output current I2N 250 A
- Network frequency: 50~60 Hz
- Mains voltage 380-480 V
- Relative balanced line frequency tolerance: 5%
- Relative symmetrical line voltage tolerance: 10%
- Supports protocol for AS-Interface Safety at Work: No.
- Supports protocol for ASI: No.
- Supports protocol for BACnet: No.
- Supports protocol for CAN: Yes
- Supports protocol for data highway: No.
- Supports protocol for DeviceNet: Yes
- Supports protocol for DeviceNet Safety: No.
- Supports Ethernet/IP protocol: Yes
- Supports protocol for FOUNDATION Fieldbus: No.
- Supports protocol for INTERBUS: No.
- Supports protocol for INTERBUS-Safety: No.
- Supports protocol for KNX: No.
- Supports protocol for LON: No.
- Supports protocol for Modbus: No.
- Supports protocol for PROFIBUS: Yes
- Supports protocol for PROFINET CBA: No.
- Supports protocol for PROFINET IO: Yes
- Supports protocol for PROFIsafe: No.
- Supports protocol for SafetyBUS p: No.
- Supports protocol for SERCOS: No.
- Supports protocol for other bus systems: Yes
- Supports protocol for SUCONET: No.
- Supports protocol for TCP/IP: No.
- Product type
Frequency inverter
- Output rating (max.)
132 kW
- Network
3-phase
- Depth
393 mm
- Height
852 mm
- Width
320 mm
IP00
- Type
ATV930C13N4428
- Dim
(W x H x D) 320 x 852 x 393 mm
- Manufacturer part #
ATV930C13N4428
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3763357 Schneider Electric Frequency inverter ATV930C13N4428 132 kW 3-phase
User & Safety Instructions
User & Safety Instructions 3763357 Schneider Electric Frequency inverter ATV930C13N4428 132 kW 3-phase
Description
Frequency converter, ATV930, 250 kW, 400/480 V, without brake module, IP00, Marine-certification
