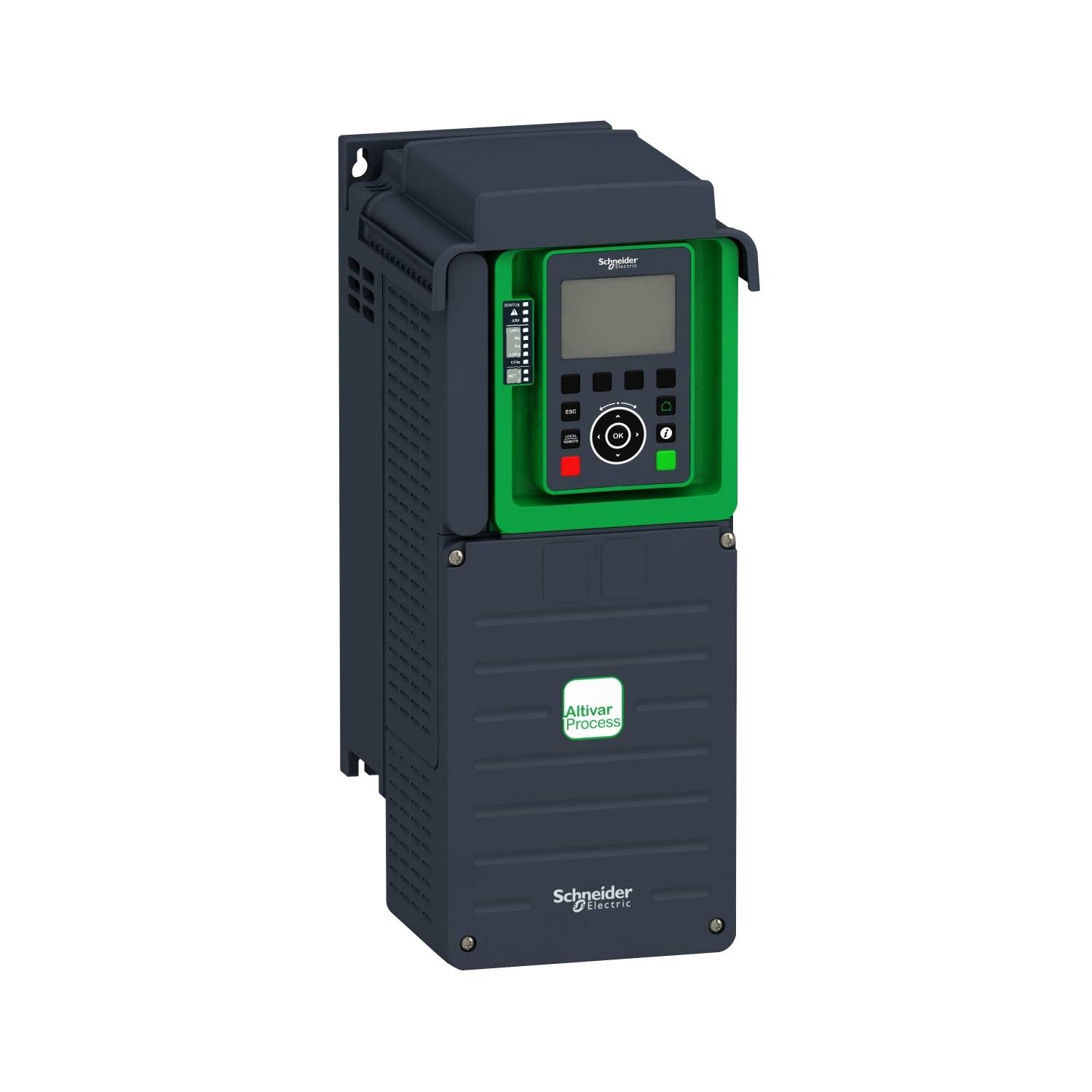

Schneider Electric Frequency inverter ATV930U75N4 7.5 kW 3-phase

Altivar 900 process frequency converter - converter for moving solid bodies & mechanics e.g. breakers, mixers, extruders, conveyor belts, cranes. Wall mount. Frequency converter ATV930, with brake module. Dimensions 171 x 409 x 236 mm, power KW 7.5 kW. Supply voltage, three-phase 380-480 V 50/60 Hz. Output frequency 0,1-500 Hz. Overload in normal operation 120% for 60 s, overload in mode high overload 150% for 60 s (for 1 power class declassification). Asynchronous motor control types, constant torque, variable torque, optimized torque mode, PM synchronous motor, (Permanent magnet) Motor. Integrated web server with direct access to system configuration and monitoring, simple master/slave coupling via Ethernet, with load balancing. Application functions for e.g. conveyor belts or cranes. Continuous and historical real-time measurements with customized dashboards. Integrated safety function STO (safe start-up lock (Safe Torque Off) SIL3. Number of integrated I/O analog inputs 2 analogue differential inputs, logic inputs 8, relay outputs 3, analog outputs 2. Integrated communication Ethernet-based (with 2 ports, internally switched) Modbus/TCP, Ethernet/IP. Serial communication Modbus RS485-interface Configuration and control elements Distributed graphics operator terminal, integrated web server, DTM (Device Type Manager), SoMove software. Optional I/O expansion cards, relay output cards. Optional communication cards (CANopen Daisy Chain RJ45, Sub-D and screw terminals, PROFINET, Profibus DP V1, EtherCAT and DeviceNet).
