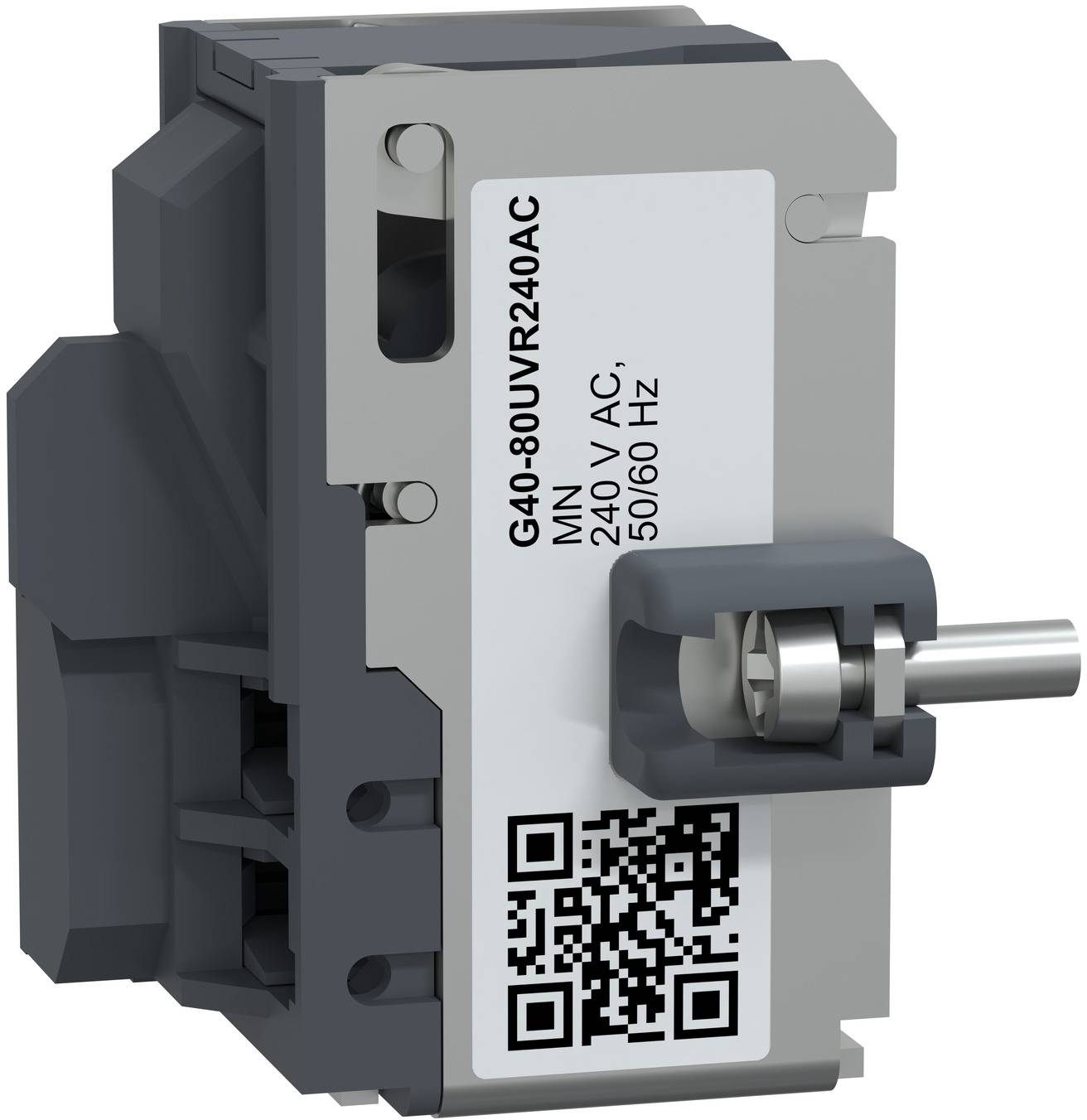

Schneider Electric G40-80UVR240AC G40-80UVR240AC Undervoltage release 1 pc(s)
EAN:
Part number:
Item no:
Product type
Undervoltage release
Content
1 pc(s)
Type
G40-80UVR240AC
UKCA
not relevant
Datasheet (PDF)
Number
Total (€ 72.87 / piece)
€ 72.87
plus VAT.
14-day return policy included
Technical specifications
- Number of contacts as N/O contacts: 0
- Number of contacts as changer: 0
- Number of contacts as NC contacts: 0
- Design of the electrical connection: Other
- Rated control supply voltage AC 50 Hz: 208-240 V
- Rated control supply voltage AC 60 Hz: 208-240 V
- Suitable for load switch: Yes
- Suitable for circuit breakers: Yes
- Suitable for motor circuit breaker: Yes
- Suitable for overload relay: No.
- Type of voltage for activation: AC
- Delayed: No.
- Product type
Undervoltage release
- Content
1 pc(s)
- Type
G40-80UVR240AC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3754752 Schneider Electric G40-80UVR240AC G40-80UVR240AC Undervoltage release 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3754752 Schneider Electric G40-80UVR240AC G40-80UVR240AC Undervoltage release 1 pc(s)
Description
This electrical aid is an undervoltage release (MN) for the new EasyPact Solar MCCB 400 and 800. EasyCompact Solar MCCB offers good value for money for simple applications and provides reliable electrical protection for your applications. The nominal operating voltage Un is 208/240VAC 50/60Hz. The MN trip unit switches off the circuit breaker when its supply voltage drops below 35% of its rated operating voltage Un. If the supply voltage is between 0.35 and 0.7xUn, an opening is possible, but not guaranteed, there is no opening above 0.7xUn. The circuit breaker is switched on if the actuator supply voltage is above 0.85xUn. Below this value the activation is not guaranteed. The maximum response time is 23 ms. The power consumption is 3VA at 208/240VAC 50/60Hz. The EasyCompact Solar MCCB 400 and EasyCompact Solar MCCB 800 are certified according to IEC 60947-1 and IEC 60947-2. The EasyPact Solar MCCB range benefits from the quality assurance of Schneider Electric.
