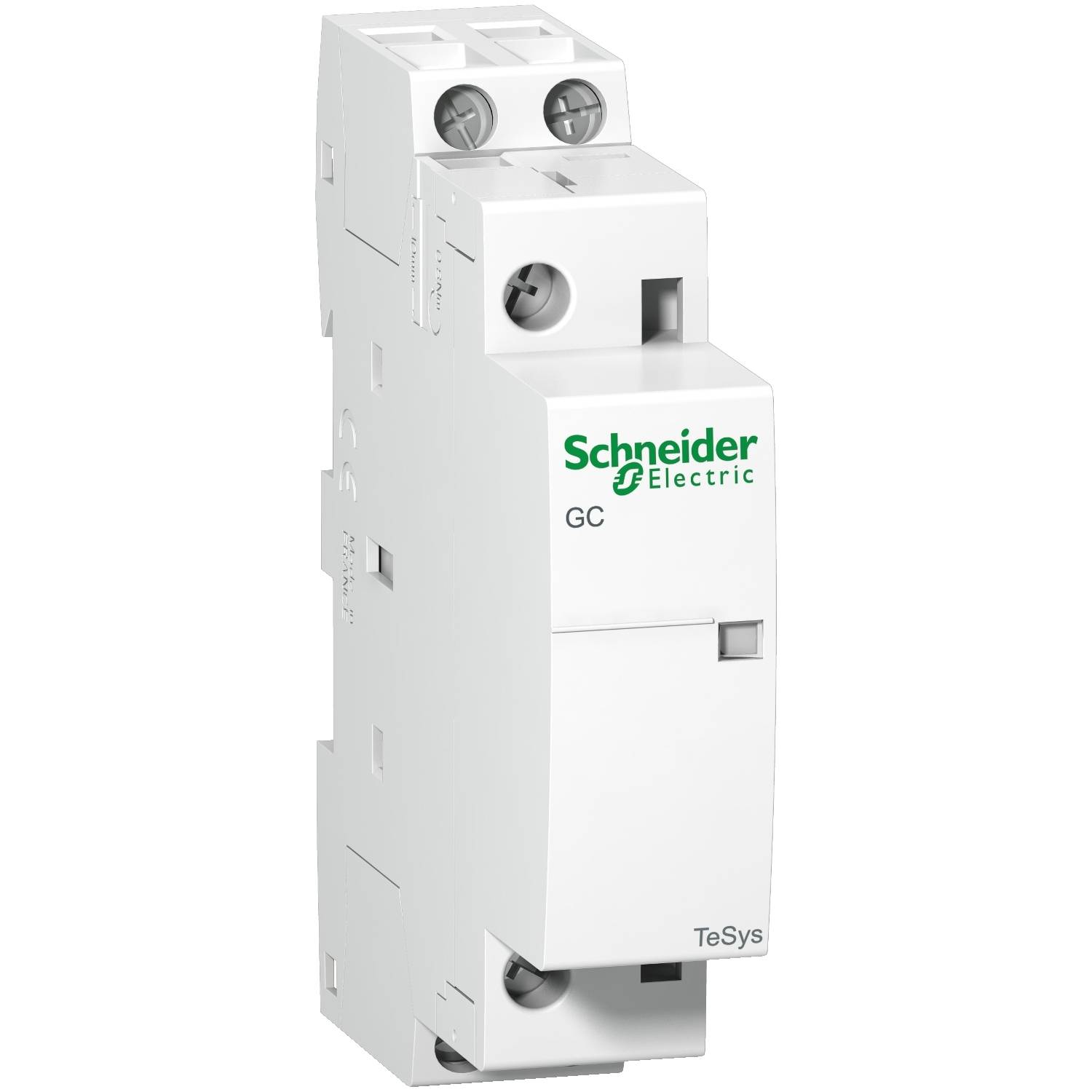

Schneider Electric GC1620B5 Remote switch 2 makers 12 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
2-pin
Connection
Screw terminal
Type
GC1620B5
Contact type
2 makers
Datasheet (PDF)
Number (Package size 12 pc(s))
Total (€ 36.34 / piece)
€ 436.13
plus VAT.
14 days return policy included
Technical specifications
- Product type
Remote switch
- Type
GC1620B5
- No. of pins
2-pin
- Contact type
2 makers
- Auxiliary contact type
2 makers
- Control voltage (max.)
24 V AC
- Control voltage range
24 V AC (max)
- Switching voltage (max.)
250 V AC
- Permanent current (max.)
16 A
- Mounting type
DIN rail
- Connection
Screw terminal
- Width
18 mm
- Content
12 pc(s)
62.5 mm
18.0
7
1800 W
650 VA
800 VA
600 VA
FALSE
AC
AC
IP20
16 A
TRUE
0
2
TRUE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2935951 Schneider Electric GC1620B5 Remote switch 2 makers 12 pc(s)
Datasheet 2935951 Schneider Electric GC1620B5 Remote switch 2 makers 12 pc(s)
User & Safety Instructions
User & Safety Instructions 2935951 Schneider Electric GC1620B5 Remote switch 2 makers 12 pc(s)
Information
Information 2935951 Schneider Electric GC1620B5 Remote switch 2 makers 12 pc(s)
Information 2935951 Schneider Electric GC1620B5 Remote switch 2 makers 12 pc(s)
Information 2935951 Schneider Electric GC1620B5 Remote switch 2 makers 12 pc(s)
Description
TeSys GC Modular Contactor, 2-pin (2NO), 16A/250V AC-7a (heater) and 5A/250V AC-7b (motor control), for domestic applications. Control voltage 24V AC 50Hz, status display on the front side For use in modular switch panels, compact (18 mm width), snap-on to 35 mm DIN rail, connection via screw terminals. Sold in lots of 12 units. Multi-standard certified (IEC, EN, NF-USE, VDE, CEBEC, OVE), Green Premium-conform (RoHS/REACH).
