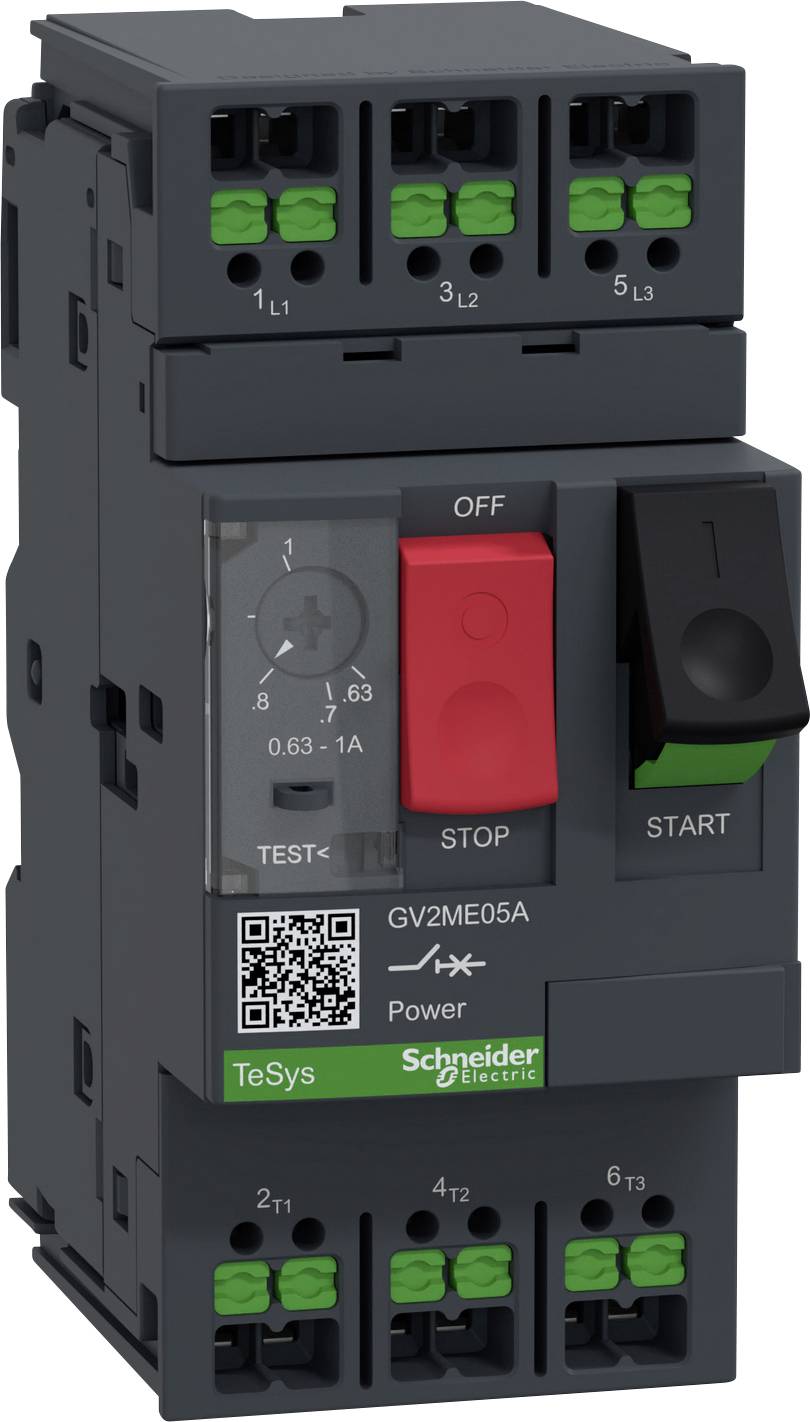

Schneider Electric GV2ME05A Overload relay 1 pc(s) Adjustment range (amperage): 0.63 - 1 A Switching voltage (max.): 690
EAN:
Part number:
Item no:
Product type
Overload relay
Amperage adjustment range (max.)
1 A
Connection
Snap-in
Type
GV2ME05A
Amperage adjustment range (min.)
0.63 mA
Datasheet (PDF)
Number
Total (€ 58.82 / piece)
€ 58.82
plus VAT.
14-day return policy included
Highlights & Details
Motor circuit breaker, 3p, 0.63-1A, button actuation, SNAP IN terminal connections
- TeSys DECA contactors and motor-operated circuit breakers with innovative SNAP IN connection technology
- The SNAP IN terminal closure ends with one click, as soon as the conductor is inserted correctly
- Visual and haptic feedback of the wiring
- Flexible and rigid conductor can be inserted without wire end sleeve
- Tool-free and intuitive to use
- Secure wiring even in case of strong vibrations, no retightening needed
- "Ready to Robot" e.g. for automatic control cabinet construction
Technical specifications
- Product type
Overload relay
- Type
GV2ME05A
- Amperage adjustment range (min.)
0.63 mA
- Amperage adjustment range (max.)
1 A
- Adjustment range (amperage)
0.63 - 1 A
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Connection
Snap-in
IP20

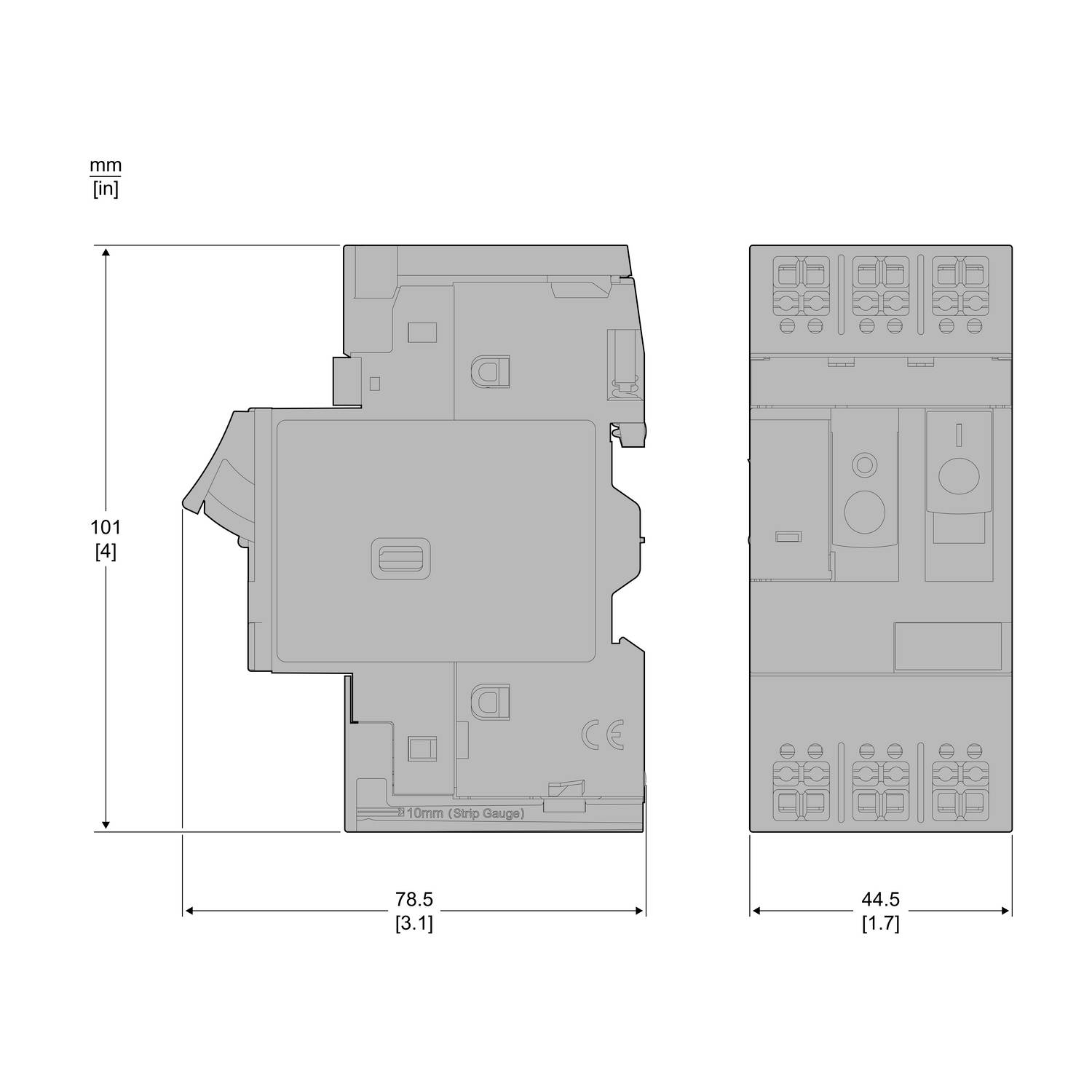

- Depth
78.5 mm
- Width
45 mm
- Height
101 mm
- Dim
(W x H x D) 45 x 101 x 78.5 mm
- Content
1 pc(s)
- Factory colour
Multicolour
45 mm
101 mm
78.5 mm
0.25 kW
FALSE
1 A
FALSE
3
230-690 V
0.63-1 A
2.5 W
IP20
TRUE
Other
Push button
Thermomagnetic
0.12 kW
100 kA
13-13 A
TRUE
Complete device in housing
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3412493 Schneider Electric GV2ME05A Overload relay 1 pc(s) Adjustment range (amperage): 0.63 - 1 A Switching voltage (max.): 690
User & Safety Instructions
User & Safety Instructions 3412493 Schneider Electric GV2ME05A Overload relay 1 pc(s) Adjustment range (amperage): 0.63 - 1 A Switching voltage (max.): 690
Description
TeSys Power motor-protection switch. Motor protection switch, 3P. Rated power 0.25 kW, setting range 0,63-1 A. With thermal and magnetic triggers. In the basic version lead-sealable and lockable. Actuated with buttons. Rated voltage 400 V, according to AC-3. Fast, safe and maintenance-free power connection with SNAP IN THE connection terminal. Suitable for security applications thanks to mechanically coupled contacts and mirror contacts. With the Snap IN spring clamp a conductor can be connected in just one second. This is a time saving of 96 percent compared to about 30 seconds for screw connections. Also, as compared to spring terminals and push-in systems, the wiring with SNAP IN is up to 88 percent faster
