Schneider Electric GV5P220F Overload relay 1 pc(s) Adjustment range (amperage): 100 - 220 A Switching voltage (max.): 69
EAN:
Part number:
Item no:
Product type
Overload relay
Amperage adjustment range (max.)
220 A
Connection
Ring terminal
Packaging type
Piece
Type
GV5P220F
Datasheet (PDF)
Number
Total (€ 957.14 / piece)
€ 957.14
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Overload relay
- Type
GV5P220F
- Amperage adjustment range (min.)
100 A
- Amperage adjustment range (max.)
220 A
- Adjustment range (amperage)
100 - 220 A
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Features
+ auxiliary contact
- Connection
Ring terminal
- Content
1 pc(s)
105
161 mm
155 mm
132 kW
FALSE
220 A
FALSE
3
IP40
TRUE
Screw connection
Turn button
Thermomagnetic
90 kW
36 kA
TRUE
Complete device in housing
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2924590 Schneider Electric GV5P220F Overload relay 1 pc(s) Adjustment range (amperage): 100 - 220 A Switching voltage (max.): 69
Datasheet 2924590 Schneider Electric GV5P220F Overload relay 1 pc(s) Adjustment range (amperage): 100 - 220 A Switching voltage (max.): 69
User & Safety Instructions
User & Safety Instructions 2924590 Schneider Electric GV5P220F Overload relay 1 pc(s) Adjustment range (amperage): 100 - 220 A Switching voltage (max.): 69
Information
Information 2924590 Schneider Electric GV5P220F Overload relay 1 pc(s) Adjustment range (amperage): 100 - 220 A Switching voltage (max.): 69
Information 2924590 Schneider Electric GV5P220F Overload relay 1 pc(s) Adjustment range (amperage): 100 - 220 A Switching voltage (max.): 69
Information 2924590 Schneider Electric GV5P220F Overload relay 1 pc(s) Adjustment range (amperage): 100 - 220 A Switching voltage (max.): 69
Information 2924590 Schneider Electric GV5P220F Overload relay 1 pc(s) Adjustment range (amperage): 100 - 220 A Switching voltage (max.): 69
Description

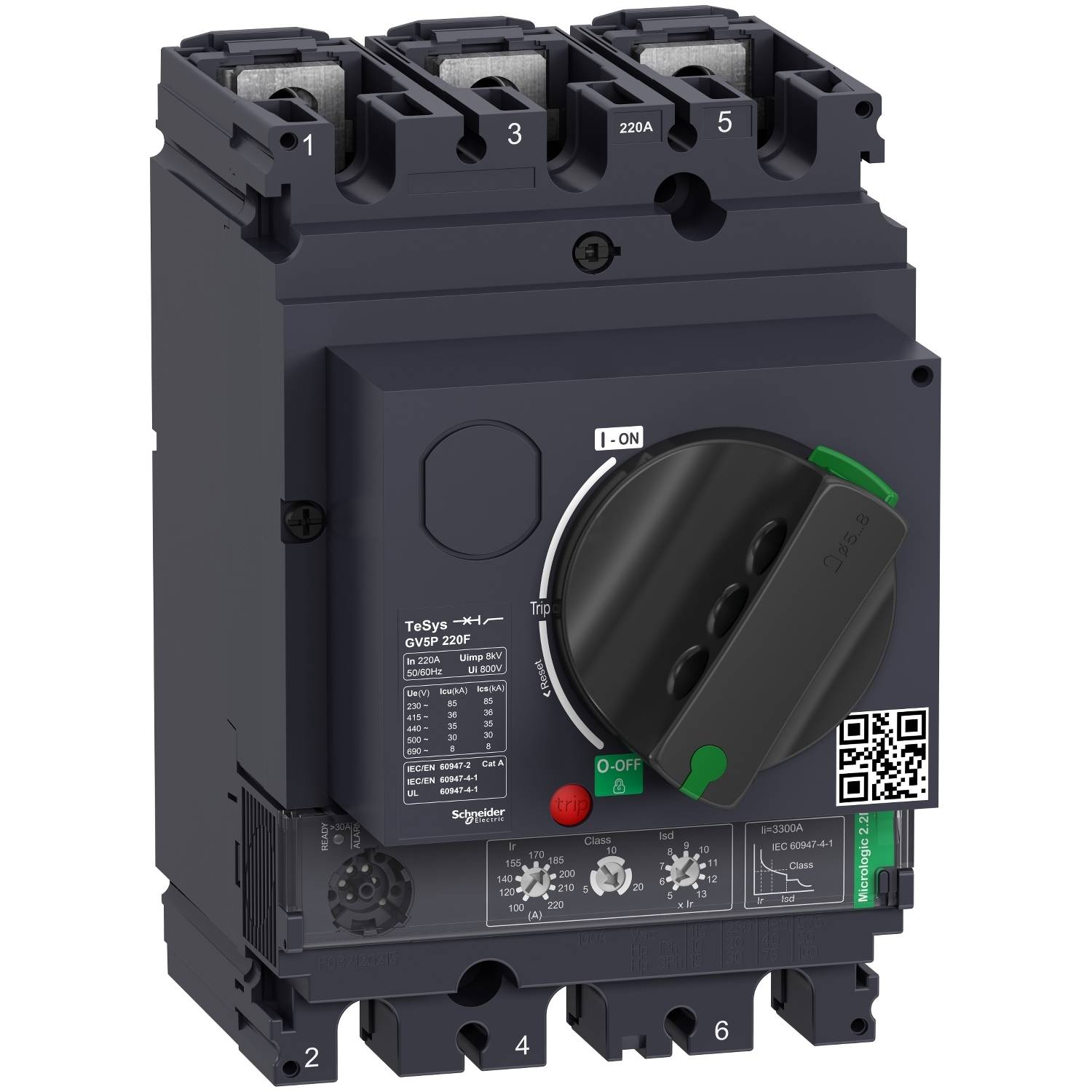

TeSys GV Motor Protection Switch, 3 Pole (3P), 220A/690V, for the protection of 3-phase motors 90-110kW@400V. It offers thermal magnetic protection and additional protective functions, circuit breaking capacity ICU 36kA, start-stop control by turning handle. It also has connection for rods or cables with cable lugs (direct connection of cables with additional plugs). Thermal protection can be set using the setting wheel with an IR control current in the range of 100-220A and a selectable trigger class 5, 10 or 20, magnetic protection with 15 In. Additional protection functions with fixed tap are short-term delay protection ISD with 13 IR, phase unbalance and failure protection. It provides internal slots for additional auxiliary contact blocks (OF, SD) and voltage triggers (MN, MX). Certified to several standards (IEC, UL, CSA, CCC, EAC, Marine), Green Premium-conform (RoHS/REACH).
