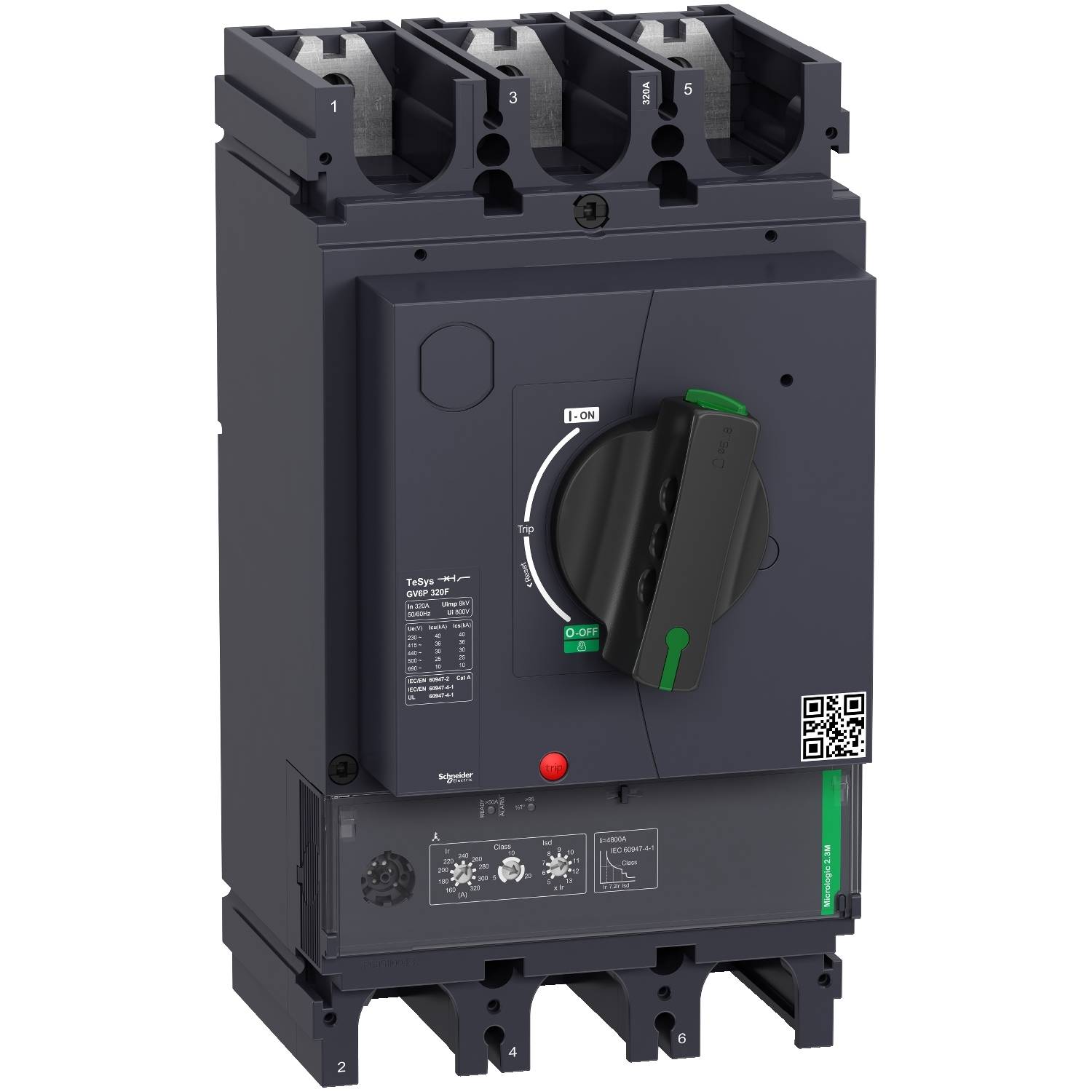

Schneider Electric GV6P320F Overload relay 1 pc(s) Adjustment range (amperage): 160 - 320 A Switching voltage (max.): 69
EAN:
Part number:
Item no:
Product type
Overload relay
Amperage adjustment range (max.)
320 A
Packaging type
Piece
Type
GV6P320F
Amperage adjustment range (min.)
160 A
Datasheet (PDF)
Number
Total (€ 1,385.71 / piece)
€ 1,385.71
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Overload relay
- Type
GV6P320F
- Amperage adjustment range (min.)
160 A
- Amperage adjustment range (max.)
320 A
- Adjustment range (amperage)
160 - 320 A
- No. of pins
3-pin
- Switching voltage (max.)
690 V AC
- Features
+ auxiliary contact
- Content
1 pc(s)
140
255 mm
179 mm
250 kW
FALSE
320 A
FALSE
3
IP40
TRUE
Screw connection
Turn button
Thermomagnetic
132 kW
36 kA
TRUE
Complete device in housing
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2924595 Schneider Electric GV6P320F Overload relay 1 pc(s) Adjustment range (amperage): 160 - 320 A Switching voltage (max.): 69
Datasheet 2924595 Schneider Electric GV6P320F Overload relay 1 pc(s) Adjustment range (amperage): 160 - 320 A Switching voltage (max.): 69
User & Safety Instructions
User & Safety Instructions 2924595 Schneider Electric GV6P320F Overload relay 1 pc(s) Adjustment range (amperage): 160 - 320 A Switching voltage (max.): 69
Information
Information 2924595 Schneider Electric GV6P320F Overload relay 1 pc(s) Adjustment range (amperage): 160 - 320 A Switching voltage (max.): 69
Information 2924595 Schneider Electric GV6P320F Overload relay 1 pc(s) Adjustment range (amperage): 160 - 320 A Switching voltage (max.): 69
Information 2924595 Schneider Electric GV6P320F Overload relay 1 pc(s) Adjustment range (amperage): 160 - 320 A Switching voltage (max.): 69
Information 2924595 Schneider Electric GV6P320F Overload relay 1 pc(s) Adjustment range (amperage): 160 - 320 A Switching voltage (max.): 69
Description
TeSys GV Motor Protection Switch, 3 Pole (3P), 320A/690V, for the protection of 3-phase motors 132-160kW@400V. It offers thermal magnetic protection and additional protective functions, circuit breaking capacity ICU 36kA, start-stop control by turning handle. It also has connection for rods or cables with cable lugs (direct connection of cables with additional plugs). Thermal protection can be set using the setting wheel with an IR current in the range of 160-320A and a selectable release class 5, 10 or 20, magnetic protection with 15 In. Additional protection functions with fixed tap are short-term delay protection ISD with 13 IR, phase unbalance and failure protection. It provides internal slots for additional auxiliary contact blocks (OF, SD) and voltage triggers (MN, MX). Certified to several standards (IEC, UL, CSA, CCC, EAC, Marine), Green Premium-conform (RoHS/REACH).
