Schneider Electric GVAE11A Auxiliary switch module Instant response Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary switch module
Connection
Snap-in
Packaging type
Piece
Type
GVAE11A
Switching type
Instant response
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Highlights & Details

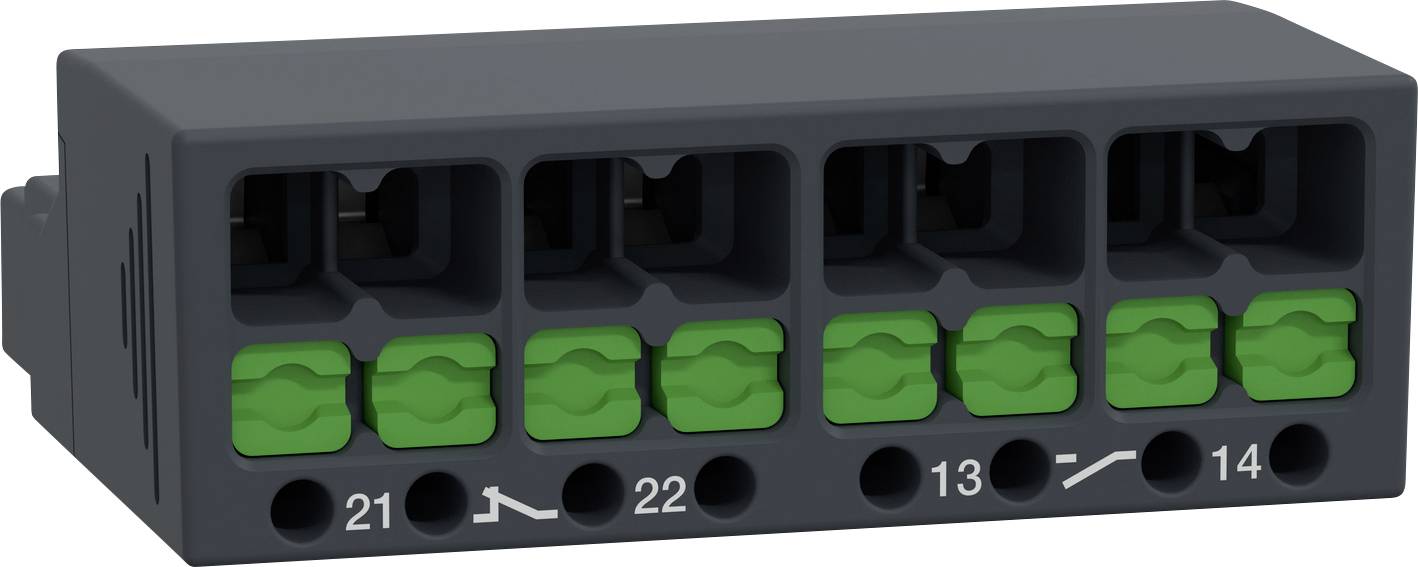

Auxiliary switch block, 1NC+1NO, front mounting, snap IN connection terminals
- TeSys DECA contactors and motor-operated circuit breakers with innovative SNAP IN connection technology
- The SNAP IN terminal closure ends with one click, as soon as the conductor is inserted correctly
- Visual and haptic feedback of the wiring
- Flexible and rigid conductor can be inserted without wire end sleeve
- Tool-free and intuitive to use
- Secure wiring even in case of strong vibrations, no retightening needed
- "Ready to Robot" e.g. for automatic control cabinet construction
Technical specifications
- Packaging type
Piece
- Product type
Auxiliary switch module
- Type
GVAE11A
- Switching type
Instant response
- Permanent current (max.)
0.5 A
- Mounting type
Front
- Connection
Snap-in
- Width
45 mm
- Height
15.5 mm
- Depth
41 mm
- Dim
(W x H x D) 45 x 15.5 x 41 mm
- Content
1 pc(s)
- Factory colour
Multicolour
Front fastening
Integrable
0.5 A
Other
0
1
1
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3412513 Schneider Electric GVAE11A Auxiliary switch module Instant response Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3412513 Schneider Electric GVAE11A Auxiliary switch module Instant response Piece 1 pc(s)
Description
Auxiliary contact block GV. Undelayed auxiliary switch block for motor circuit breaker GV2/3. It offers 1NO + 1NC contacts, connection via snap IN terminal Simple clip-on assembly on the front side for high reliability and durability. Fast, safe and maintenance-free power connection with SNAP IN THE connection terminal. Suitable for security applications thanks to mechanically coupled contacts and mirror contacts. With the Snap IN spring clamp a conductor can be connected in just one second. This is a time saving of 96 percent compared to about 30 seconds for screw connections. Also, as compared to spring terminals and push-in systems, the wiring with SNAP IN is up to 88 percent faster
