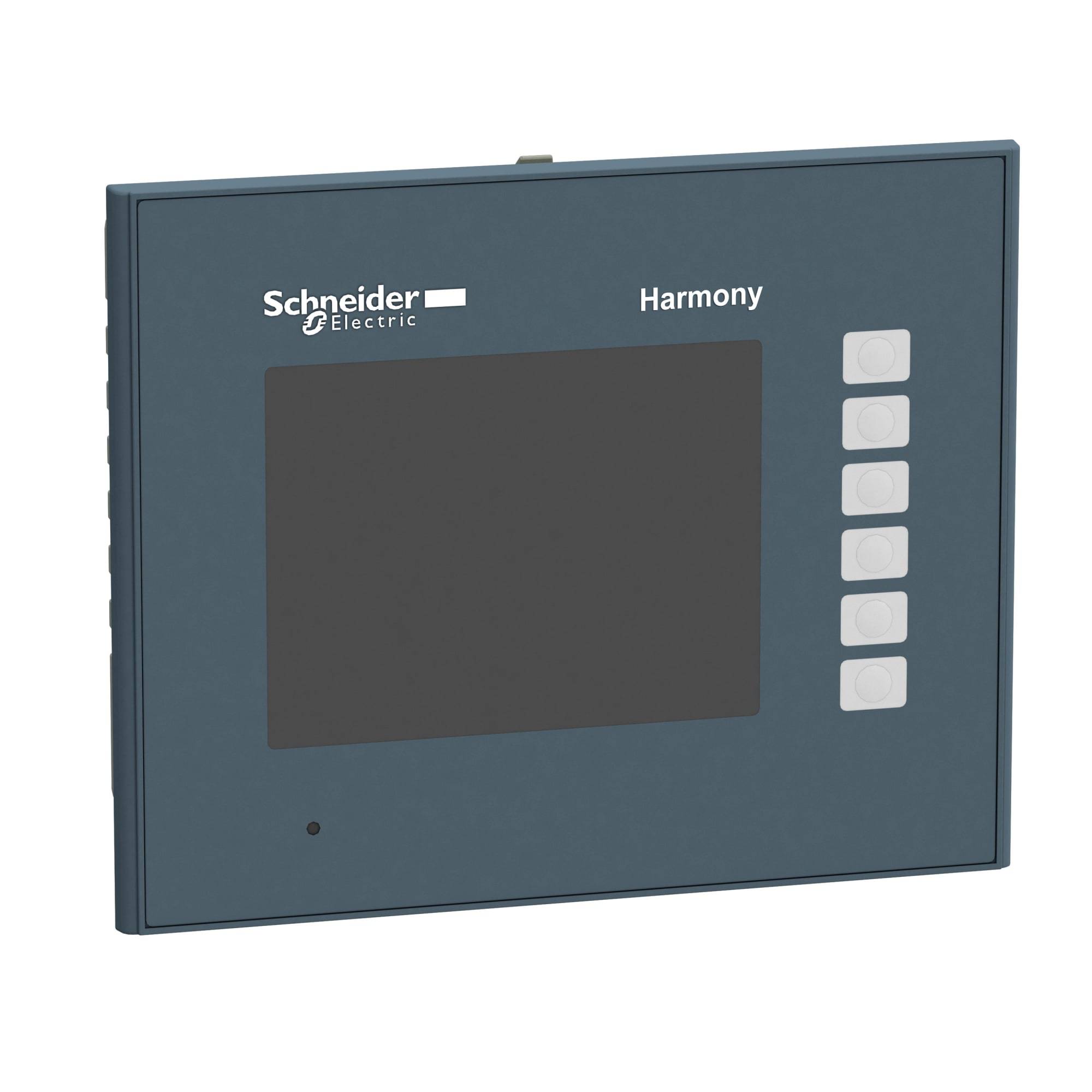

Schneider Electric HMIGTO1300 HMIGTO1300 PLC touch panel
EAN:
Part number:
Item no:
Technical specifications
- Battery type: Lithium battery for internal RAM
- Display resolution 320 x 240 pixels QVGA
- Inrush current 30 A.
- Power consumption: 5.2W when peripherals are not powered; 4.2W when backlight is OFF; 4.3W when backlight is dimmed; 9.6W
- Data backed up: 128 kB internal RAM (SRAM)
- Material: PPT
- Product type
PLC touch panel
- Interfaces
RS232C
RJ45
RS485
USB 2.0
USB 2.0 (type mini-B)
- Type
HMIGTO1300
- Memory size
64 MB
- Manufacturer part #
HMIGTO1300
- Operating voltage
24 V DC
- Height
106 mm
- Length
42 mm
- Width
132 mm
- Type
3.5" TFT display
IP20
IP65 (front)
- Dim
(L x W x H) 42 x 132 x 106 mm
- Content
1 pc(s)
- Display
Yes
- Fitting type (details)
Flush mounting
- Max. ambient temperature
+50 °C
- Min. ambient temperature
0 °C
- Screen size diagonal (inches)
12 inch
- UKCA
yes
