Schneider Electric HMIP6D7B0NA0WNAN00 Pamel PC
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 4,057.98 / piece)
€
Technical specifications
- Number of free slots, AGP: 0
- Number of free slots, PCI: 0
- Number of free slots, PCIe: 0
- Number of HW interfaces Industrial Ethernet: 2
- Number of HW interfaces in parallel: 0
- Number of HW interfaces serial RS-232: 2
- Number of HW interfaces serial RS-422: 2
- Number of HW interfaces serial RS-485: 2
- Number of HW interfaces serial TTY: 0
- Number of HW interfaces Other: 1
- Number of HW interfaces USB: 2
- Number of HW interfaces Wireless: 0
- Number of PROFINET interfaces: 0
- Wireless standard Bluetooth: No.
- Wireless standard GPRS: No.
- Radio standard GSM: No.
- Wireless standard UMTS: No.
- Wireless standard WLAN 802.11: No.
- Suitable for LINUX operating system: No.
- Suitable for Windows 2000 operating system: No.
- Suitable for Windows 2003 Server operating system: No.
- Suitable for Windows 7 operating system: No.
- Suitable for Windows 8 operating system: No.
- Suitable for operating system Windows 9x: No.
- Suitable for operating system Windows CE: No.
- Suitable for Windows ME operating system: No.
- Suitable for Windows Vista operating system: No.
- Suitable for Windows XP operating system: No.
- Suitable for operating system, other: Yes
- IO-Link Master: No.
- With diskette drive: No.
- With hard disk: No.
- With graphics card: No.
- With optical drive: No.
- With other storage media: Yes
- With sound card: No.
- Processor type: Other
- Protection class (NEMA): Other
- Rail mounting possible: No.
- Supports protocol for AS-Interface Safety at Work: No.
- Supports protocol for ASI: No.
- Supports protocol for CAN: No.
- Supports protocol for data highway: No.
- Supports protocol for DeviceNet: No.
- Supports protocol for DeviceNet Safety: No.
- Supports protocol for EtherCAT: No.
- Supports protocol for Ethernet/IP: No.
- Supports protocol for FOUNDATION Fieldbus: No.
- Supports protocol for INTERBUS: No.
- Supports protocol for INTERBUS-Safety: No.
- Supports protocol for KNX: No.
- Supports protocol for LON: No.
- Supports protocol for Modbus: No.
- Supports protocol for PROFIBUS: No.
- Supports protocol for PROFINET CBA: No.
- Supports protocol for PROFINET IO: No.
- Supports protocol for PROFIsafe: No.
- Supports protocol for SafetyBUS p: No.
- Supports protocol for SERCOS: No.
- Supports protocol for other bus systems: No.
- Supports protocol for SUCONET: No.
- Pre-installed operating system: Windows 10
- Wall/direct mounting possible: No.
- Type
HMIP6D7B0NA0WNAN00
- Manufacturer part #
HMIP6D7B0NA0WNAN00
- Height
296 mm
- Width
397 mm
IP20
- Dim
(W x H x D) 397 x 296 x 67 mm
- Content
1 pc(s)
- Depth
67 mm
- Product type
Pamel PC
Documents & Downloads
Datasheet
Datasheet 3756499 Schneider Electric HMIP6D7B0NA0WNAN00 Pamel PC
User & Safety Instructions
User & Safety Instructions 3756499 Schneider Electric HMIP6D7B0NA0WNAN00 Pamel PC
Description

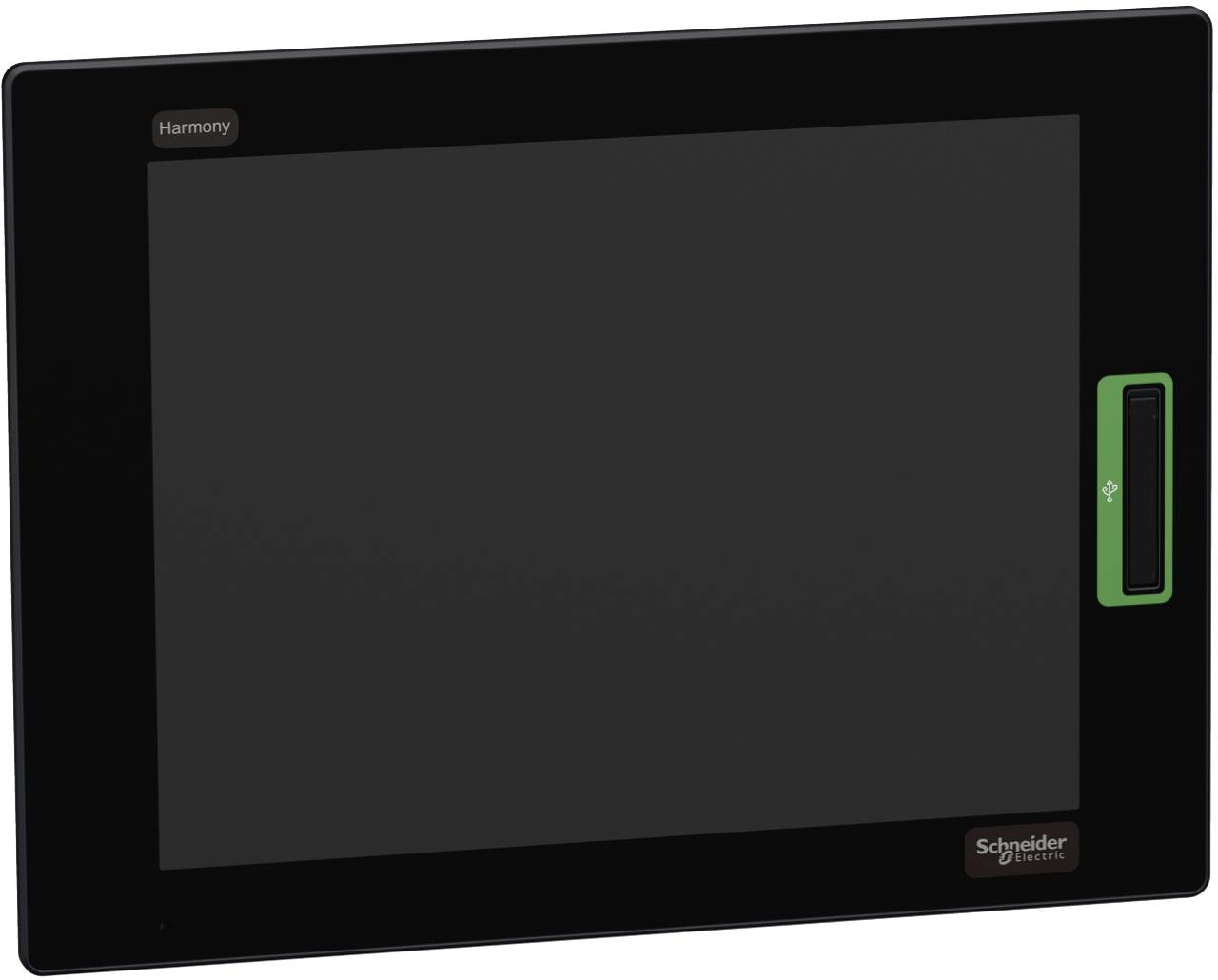

This panel PC is part of Schneider Electric's Harmony P6 Basic product line. This is a combination of modular box PC and display with Windows 10 (64-bit) operating system, node-RED software package and Intel atom, 4-Kern processor. The 15 inch LED display has a resolution of 4096 x 2304, 16 million colors and a backlight life of 50,000 hours. The modularity of the iPCs brings a variety of individual choices as well as easy expansion and exchange possibilities of components. When properly installed, the operator panel provides the degree of protection IP20, IP66F, IP67F, type 4X (only for internal areas according to NEMA) and type 13. This product works with a power consumption of 73 W and a nominal voltage of 12 to 24 V DC. Dimensions are 397 mm (width) x 296 mm (height) x 67 mm (depth) and weight is 5.4 kg. This product is CE, RCM, UL, CSA and UKCA certified and complies with the standards EN/IEC 61000-4-2, IEC 61000-4-4, FCC Part 15 and UL 61010-2-201.
