Schneider Electric HMIP6DBB0NA0WNAN00 Pamel PC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,222.69 / piece)
€ 2,222.69
plus VAT.
14-day return policy included
Technical specifications
- Number of free slots, AGP: 0
- Number of free slots, PCI: 0
- Number of free slots, PCIe: 0
- Number of HW interfaces Industrial Ethernet: 2
- Number of HW interfaces in parallel: 0
- Number of HW interfaces serial RS-232: 2
- Number of HW interfaces serial RS-422: 2
- Number of HW interfaces serial RS-485: 2
- Number of HW interfaces serial TTY: 0
- Number of HW interfaces Other: 1
- Number of HW interfaces USB: 2
- Number of HW interfaces Wireless: 0
- Number of PROFINET interfaces: 0
- Wireless standard Bluetooth: No.
- Wireless standard GPRS: No.
- Radio standard GSM: No.
- Wireless standard UMTS: No.
- Wireless standard WLAN 802.11: No.
- Suitable for LINUX operating system: No.
- Suitable for Windows 2000 operating system: No.
- Suitable for Windows 2003 Server operating system: No.
- Suitable for Windows 7 operating system: No.
- Suitable for Windows 8 operating system: No.
- Suitable for operating system Windows 9x: No.
- Suitable for operating system Windows CE: No.
- Suitable for Windows ME operating system: No.
- Suitable for Windows Vista operating system: No.
- Suitable for Windows XP operating system: No.
- Suitable for operating system, other: Yes
- Housing dimensions:Box
- IO-Link Master: No.
- With diskette drive: No.
- With hard disk: No.
- With graphics card: No.
- With optical drive: No.
- With other storage media: Yes
- With sound card: No.
- Processor type: Other
- Protection class (NEMA): Other
- Rail mounting possible: No.
- Supports protocol for AS-Interface Safety at Work: No.
- Supports protocol for ASI: No.
- Supports protocol for CAN: No.
- Supports protocol for data highway: No.
- Supports protocol for DeviceNet: No.
- Supports protocol for DeviceNet Safety: No.
- Supports protocol for EtherCAT: No.
- Supports protocol for Ethernet/IP: No.
- Supports protocol for FOUNDATION Fieldbus: No.
- Supports protocol for INTERBUS: No.
- Supports protocol for INTERBUS-Safety: No.
- Supports protocol for KNX: No.
- Supports protocol for LON: No.
- Supports protocol for Modbus: No.
- Supports protocol for PROFIBUS: No.
- Supports protocol for PROFINET CBA: No.
- Supports protocol for PROFINET IO: No.
- Supports protocol for PROFIsafe: No.
- Supports protocol for SafetyBUS p: No.
- Supports protocol for SERCOS: No.
- Supports protocol for other bus systems: No.
- Supports protocol for SUCONET: No.
- Pre-installed operating system: Without
- Wall/direct mounting possible: Yes
- Product type
Pamel PC
- Type
HMIP6DBB0NA0WNAN00
- Manufacturer part #
HMIP6DBB0NA0WNAN00
- Height
165 mm
- Width
250 mm
IP20
- Dim
(W x H x D) 250 x 165 x 37 mm
- Content
1 pc(s)
- Depth
37 mm
Documents & Downloads
Datasheet
Datasheet 3756506 Schneider Electric HMIP6DBB0NA0WNAN00 Pamel PC
User & Safety Instructions
User & Safety Instructions 3756506 Schneider Electric HMIP6DBB0NA0WNAN00 Pamel PC
Description

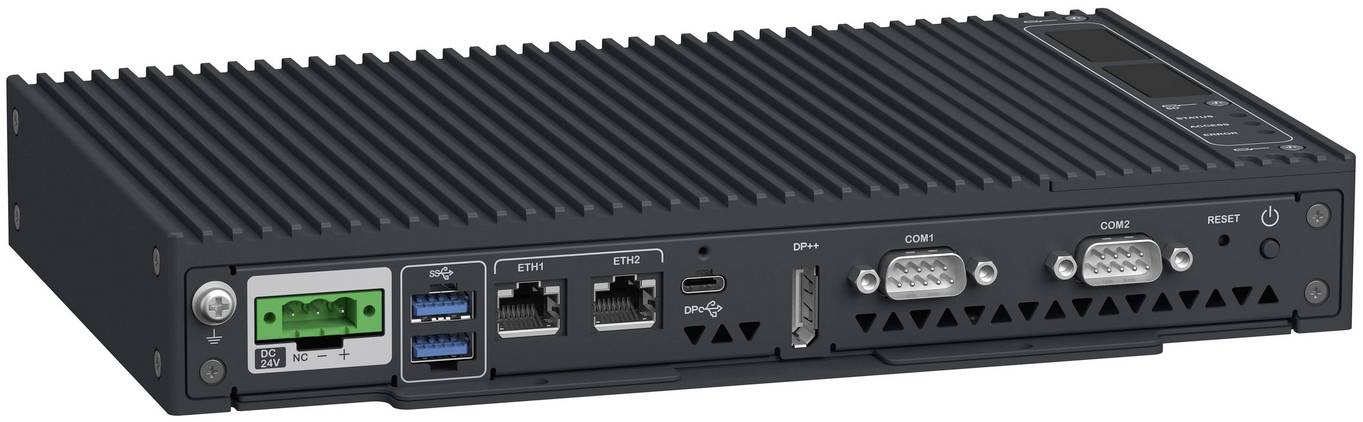

This panel PC is part of Schneider Electric's Harmony P6 Basic product line. It comes with the Windows 10 (64-bit) operating system, the NODE-RED software package and a Intel Atom 4 Kern processor. The device is equipped with 8 GB RAM DDR4 internal memory. The modularity of the iPCs brings a variety of individual choices as well as easy expansion and exchange possibilities of components. This Edge Box has 2x Ethernet ports, 2x COM (RS232/422/458), 2x USB Type A, 1x USB Type C, and 1x Display Port. This product works with a power consumption of 45 W and a nominal voltage of 12 to 24 V DC. Dimensions are 250 mm (width) x 165 mm (height) x 37 mm (depth) and the weight is 1.7 kg. This modular box PC has IP20, type 4X (NEMA-rated interior only) and type 13 protection. This product is CE, RCM, UL, CSA and UKCA certified and complies with the standards EN/IEC 61000-4-2, IEC 61000-4-4, FCC Part 15 and UL 61010-2-201.
