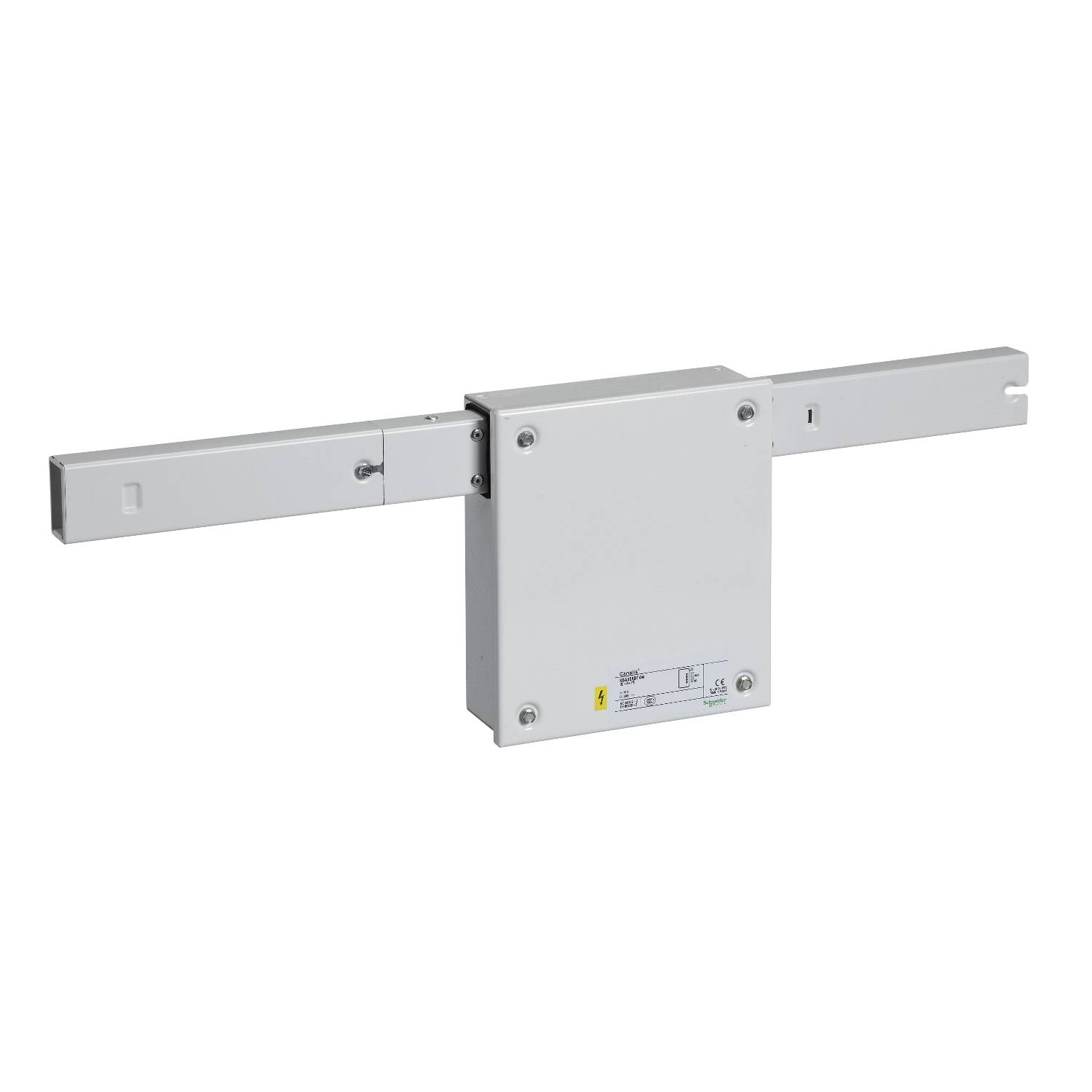

Schneider Electric KBA40ABT4W KBA CENTRAL FEED, 40A, 3L+N+PE Central feed 1 pc(s)

This is a feeder unit for Canalis KBA busbar distributors. Canalis KBA is designed for the distribution of lighting and power outlets. The rated operating current is 40A at 35°C. The rated operating voltage is between 230VAC and 400VAC 50/60Hz. This feeder unit is a central mounting element and is clipped onto the cables on both sides. It holds power cables with a cross-section of 10 mm² and a maximum diameter of 19 mm (PG 21). It embeds 1 circuits with 3L+N+PE-polarity. It offers the protection class IP55 according to the standard IEC 60529, which ensures the protection of the cable channels against water spray and dust. It offers IK06 protection against external mechanical impacts according to the standard IEC 62262-5-1 The length is 562 mm, and the cross-section is 78.5 mm x 75.5 mm. It is made of white painted steel sheet RAL 9003. Canalis KBA complies with IEC/EN 61439-6. It is non-flame retardant according to the recommendations of standard IEC 60332-3. All insulation and plastic materials are halogen free and have an increased fire resistance (IEC 60695-2).
