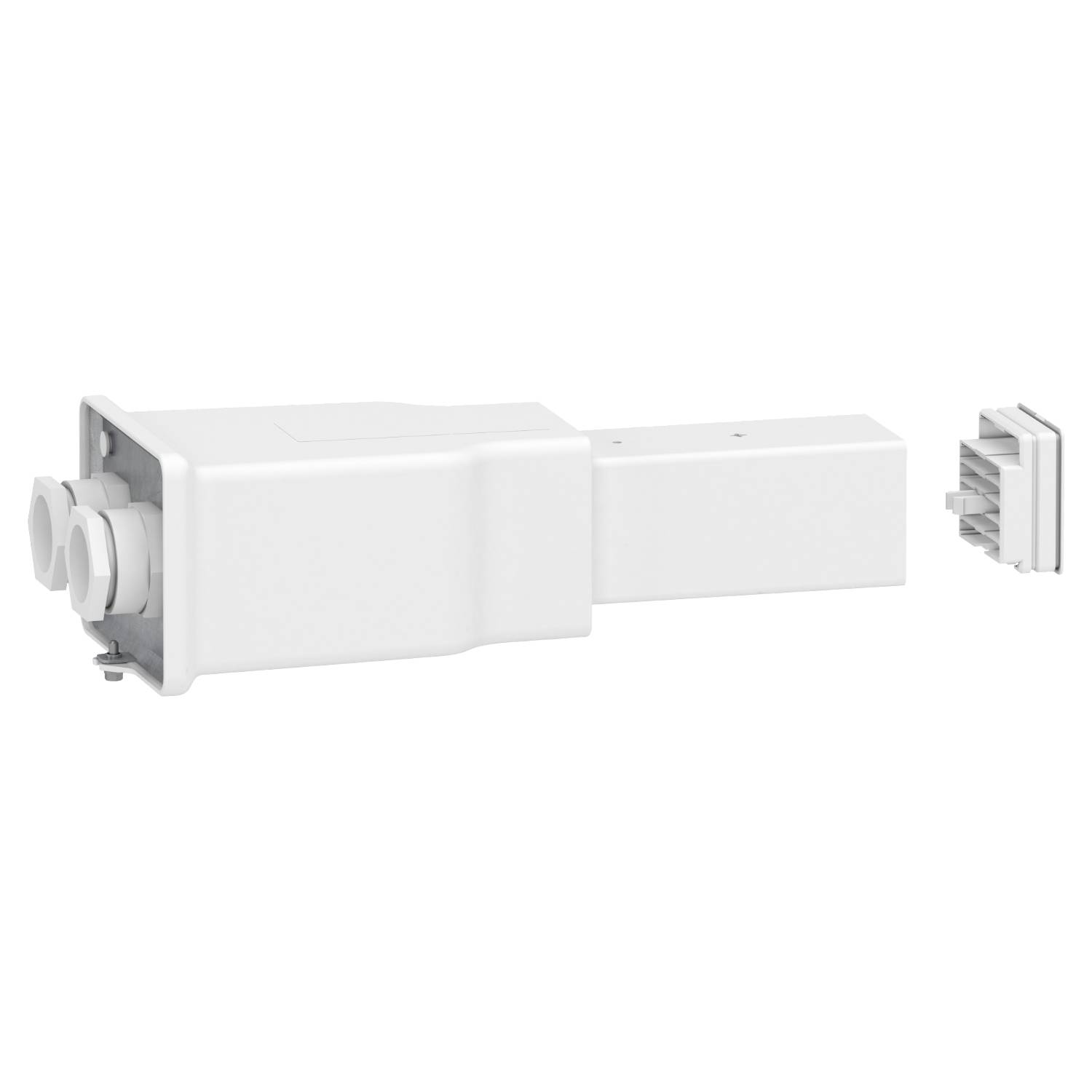

Schneider Electric KBB40ABG44TW KBB final feed 40A, left-hand assembly, 2 networks, 3L+N+PE, remote control devices End
EAN:
Part number:
Item no:
Product type
End feed
Content
1 pc(s)
Colour
White
Width
103.5
Model
Double
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
14 days return policy included
Technical specifications
- Product type
End feed
- Content
1 pc(s)
White
103.5
Double
75.5 mm
9003
10
244 m
IP55
End
40 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2928406 Schneider Electric KBB40ABG44TW KBB final feed 40A, left-hand assembly, 2 networks, 3L+N+PE, remote control devices End
Datasheet 2928406 Schneider Electric KBB40ABG44TW KBB final feed 40A, left-hand assembly, 2 networks, 3L+N+PE, remote control devices End
User & Safety Instructions
User & Safety Instructions 2928406 Schneider Electric KBB40ABG44TW KBB final feed 40A, left-hand assembly, 2 networks, 3L+N+PE, remote control devices End
Information
Information 2928406 Schneider Electric KBB40ABG44TW KBB final feed 40A, left-hand assembly, 2 networks, 3L+N+PE, remote control devices End
Information 2928406 Schneider Electric KBB40ABG44TW KBB final feed 40A, left-hand assembly, 2 networks, 3L+N+PE, remote control devices End
Information 2928406 Schneider Electric KBB40ABG44TW KBB final feed 40A, left-hand assembly, 2 networks, 3L+N+PE, remote control devices End
Information 2928406 Schneider Electric KBB40ABG44TW KBB final feed 40A, left-hand assembly, 2 networks, 3L+N+PE, remote control devices End
Description
This is a feeder unit for Canalis KBB busbar distributors. Canalis KBB is designed for lighting and socket distribution. The rated operating current is 40A at 35°C. The rated operating voltage is between 230VAC and 400VAC 50/60Hz. This element is clamped to the left end of the line and the included end cover should be clamped on the opposite side of the line. It receives power cables with a cross-section of 6 to 10 mm² and a maximum diameter of 19 mm (PG 21). It embedded 2 independent circuits with 3L+N+PE-polarity. This feeder unit is supplied with an optional 2-wire remote control circuit and is able to transmit and distribute the DALI protocol for light management. It offers the protection class IP55 according to the standard IEC 60529, which ensures the protection of the cable channels against water spray and dust. It offers IK06 protection against external mechanical impacts according to the standard IEC 62262-5-1 The length is 244 mm, and the cross-section is 103.5 mm x 75.5 mm. It is made of white painted steel sheet RAL 9003. Canalis KBB complies with IEC/EN 61439-6. It is non-flame retardant according to the recommendations of standard IEC 60332-3. All insulation and plastic materials are halogen free and have an increased fire resistance (IEC 60695-2).
