Buy Schneider Electric KNX MTN6215-0410 Monitor MTN6215-0410

A black square with slightly rounded corners, representing a minimalist style.

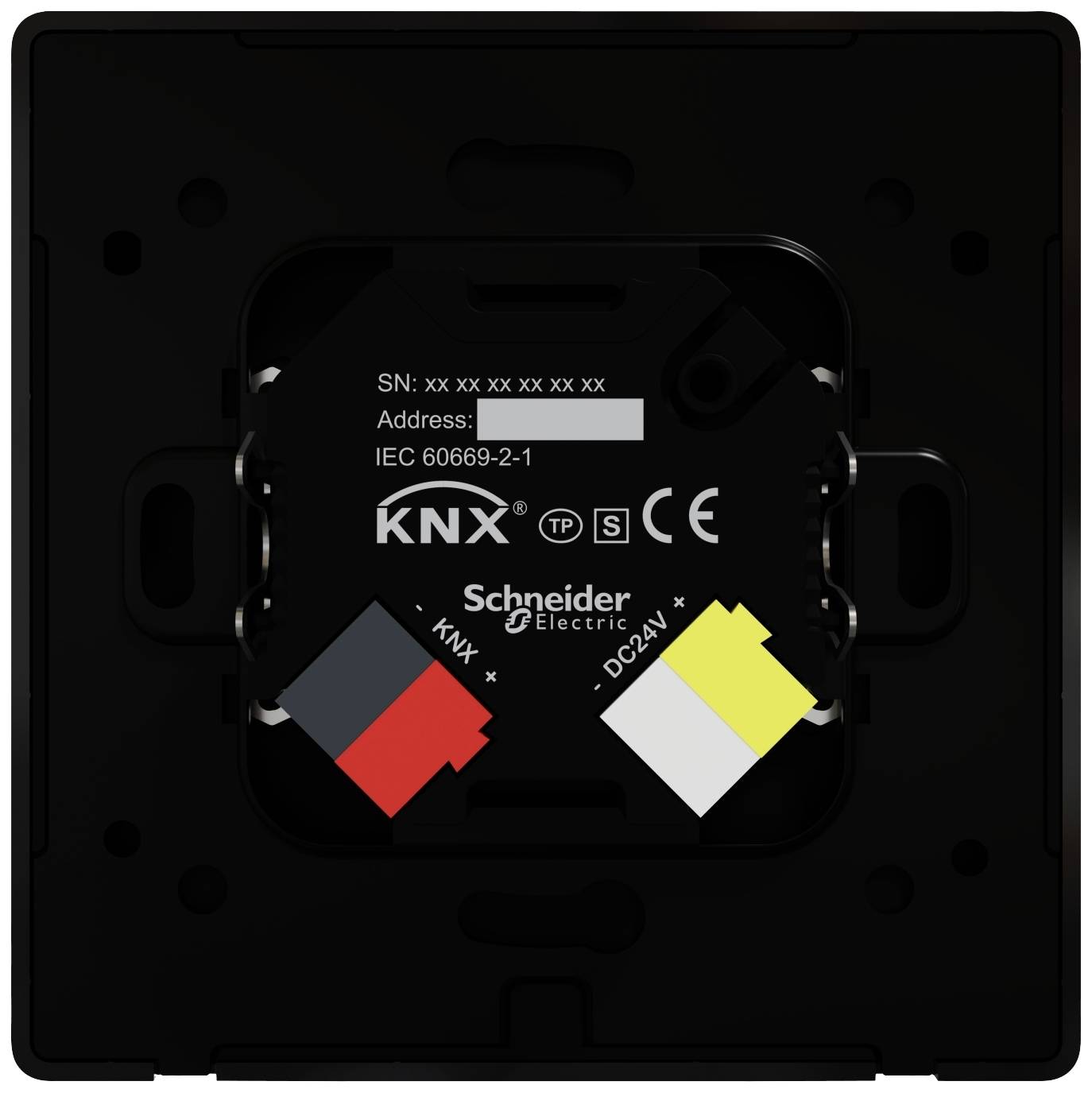

Black square KNX switch by Schneider Electric, showing serial number, IEC 60669-2-1, red, white and yellow marked terminals.

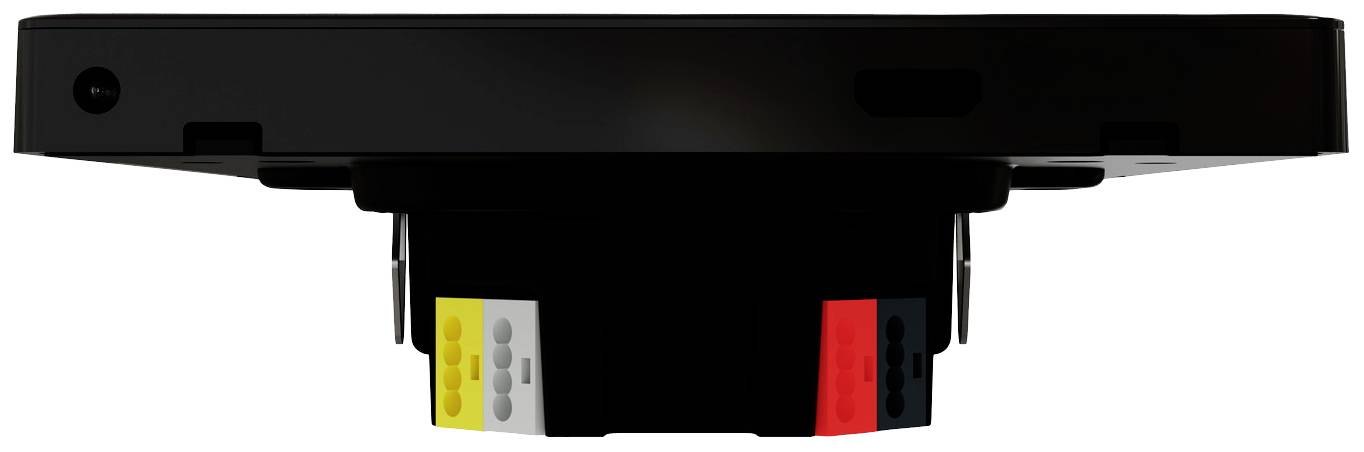

Black electronic circuit board viewed from below, with coloured connector plugs visible in yellow, white, red, and black.

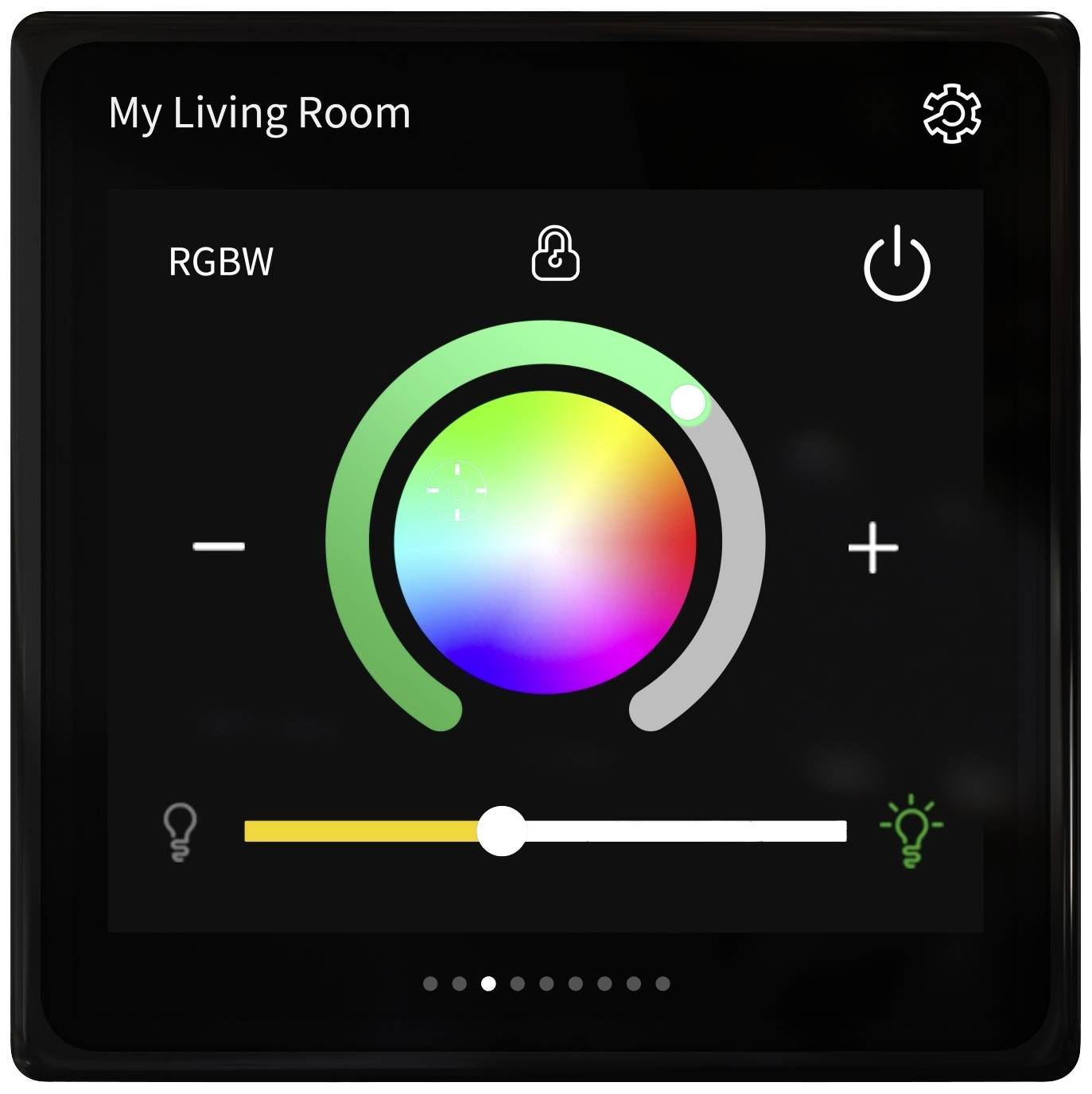

Intelligent control panel with colour wheel for light adjustment. Options for changing brightness and colour displayed in the living room.

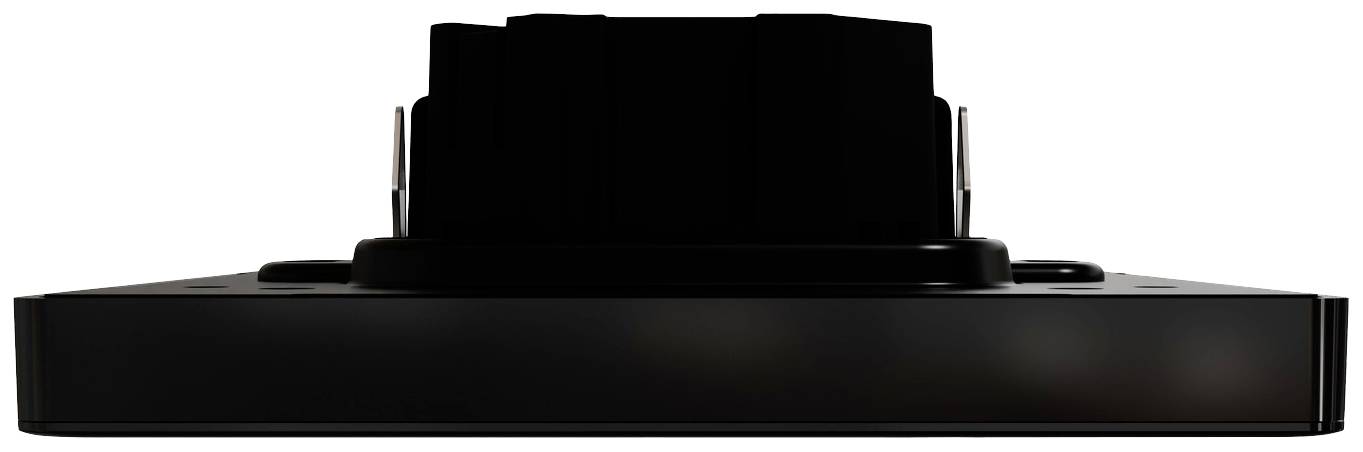

An electrical component with a black, rectangular front and a black module mounted in the centre, viewed from the side.

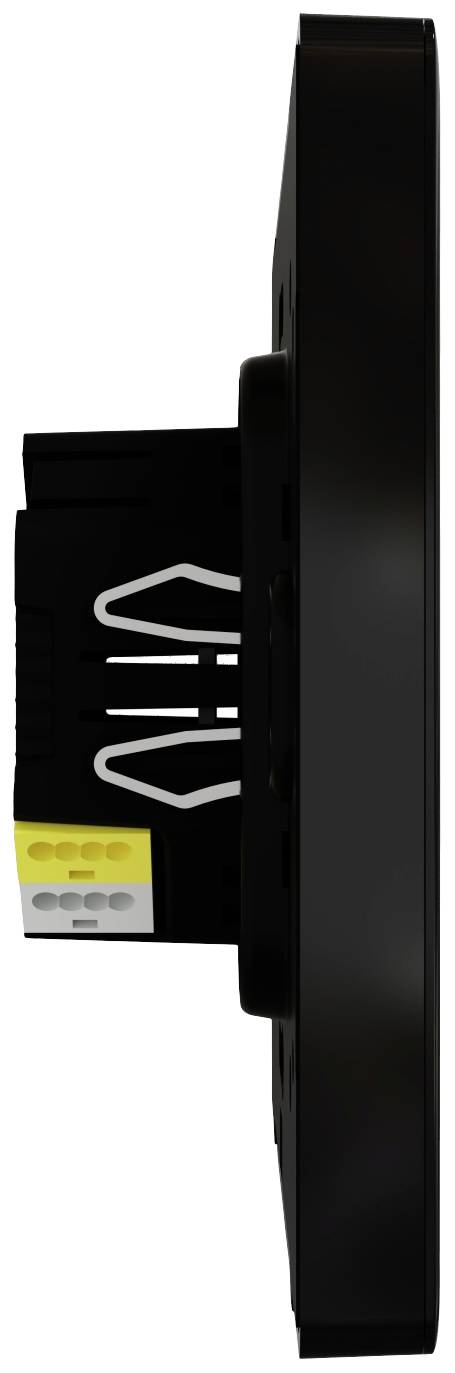

Side view of a black electronic device with yellow and grey ports.

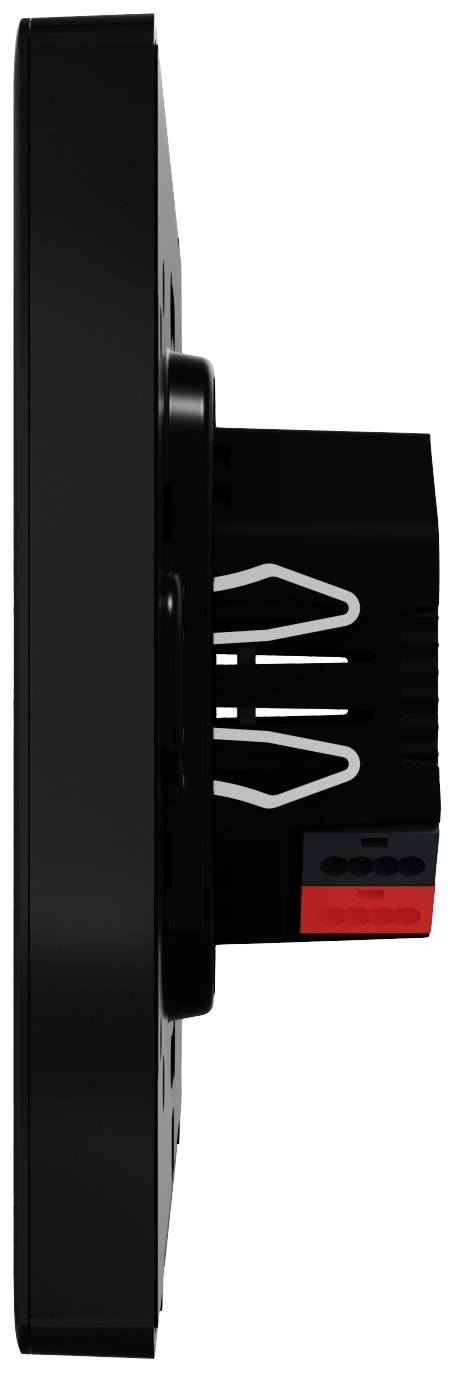

Side view of a black electronic device with plug connections and cable interfaces.

1/7

Datasheet (PDF)

Dispatches on Tue, 29 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 570.59 / piece)

€ 570.59

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Monitor

Series: KNX

Max. switching capacity: 2 W

Used at: Indoors

Operating voltage: 24 V DC

: 2 W

Data transfer (Smart Home): Wired

Mounting type: Flush mount

Factory colour: Black

Hub: Not required, optional for remote access

Weight: 0.20

Features: Dimmer function

: Flush mounted (plaster)

: Control element with cover frame

: Black

: Other

: None

: TRUE

: FALSE

: TRUE

: TRUE

: Other

: None

: FALSE

: IP20

: TRUE

: Other

: FALSE

: TRUE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3304599 Schneider Electric KNX MTN6215-0410 Monitor MTN6215-0410

User & Safety Instructions

User & Safety Instructions 3304599 Schneider Electric KNX MTN6215-0410 Monitor MTN6215-0410

Description

The SpaceLogic KNX 10.16 cm (4-inch) Mini Touch is a programmable KNX control unit with a 10.16 cm (4-inch) display. The control unit integrates HVAC, lighting, and shutter control in one device. With the SpaceLogic KNX 10.16 cm (4-inch) mini touch, the air quality can be displayed and the music playback can be controlled. Icons and the screensaver can be configured and updated via the USB interface. General features such as the bus behavior after voltage recovery, the display user interface, the proximity function and the temperature measuring parameters can be easily adjusted. The Mini Touch control unit can send telegrams to the bus, such as switching telegram, scene telegram, brightness/RGB/color temperature dimming telegram, curtain/shutter telegram and shutter position and leaf telegram. The unit also has the functions Ventilation, FCU, Underfloor heating and air conditioning control. The display resolution of the touch panel is 480 x 480 pixel with 16,700,000 display colors. The processor is an ARM Cortex-A7 with 64 MB flash and 128 MB RAM. Its operating voltage is 24VDC. The load capacity of the touch panel is 2W. This control unit is black and allows flush mounting. The operating temperature is between -5°C and +45°C. It achieves protection class IP20.

This text is machine translated.
