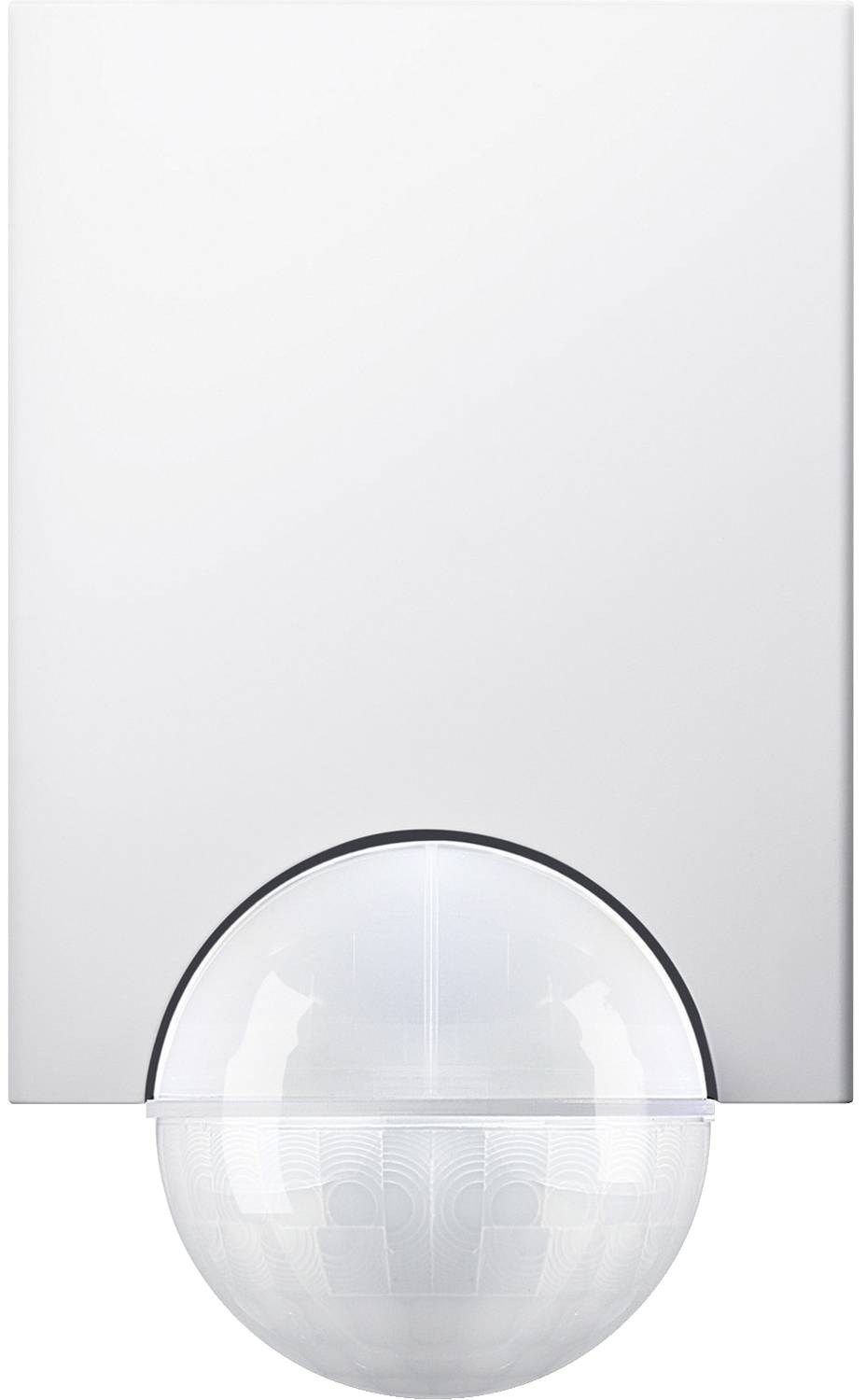

Schneider Electric KNX MTN632519 Motion detector Max. range (open field) 16 m

KNX Argus 220 KNX motion detector for outdoor use. 220° surface monitoring for large house fronts and house sections With integrated bus coupler. The physical address is programmed with a magnet. Short distance range of 360° (approx 4 m radius). Large wiring space and connector system. Loop formation is possible. LED function display for quick alignment at the installation location. The control elements are protected under the easily accessible cover plate. Flexibly adjustable sensor head. Fade-out of individual lens areas is possible. Mounting on wall and ceiling without additional accessories possible. Can be mounted at inner/outer corners and free-standing pipes with mounting bracket. KNX software functions: Five movement blocks: Up to four functions can be triggered per Block. Telegrams: 1 bits, 1 bytes, 2 bytes. Normal operation, Master, slave, safety pause, deactivation function. Sensitivity, brightness and staircase lighting can be adjusted via the ETS or the potentiometer. Self-adjusting staircase lighting time. Aperture angle 220° Range: Max. 16 m. Number of stages: 7. Number of zones: 112 with 448 switching segments. Light sensor: Infinitely adjustable from approx. 3 - 1000 Lux (infinite: Movement detection is independent of the position of sensor head). Time: Externally adjustable from 1 s to approx. 8 min. In 6 stages or via ETS from approx. 3 s to approx. 152 hours. Sensitivity: Infinitely adjustable. Possible settings for the sensor head: Wall mounting: 9° up, 24° down, 12° left/right, ±12° Axial. Ceiling mount: 4° up, 29° down, 25° left/right, ±8.5° Axial. IP 55 protection Contents: With cover plate and segments for limiting the detection range, screws and plugs. Colour: Polar white.
