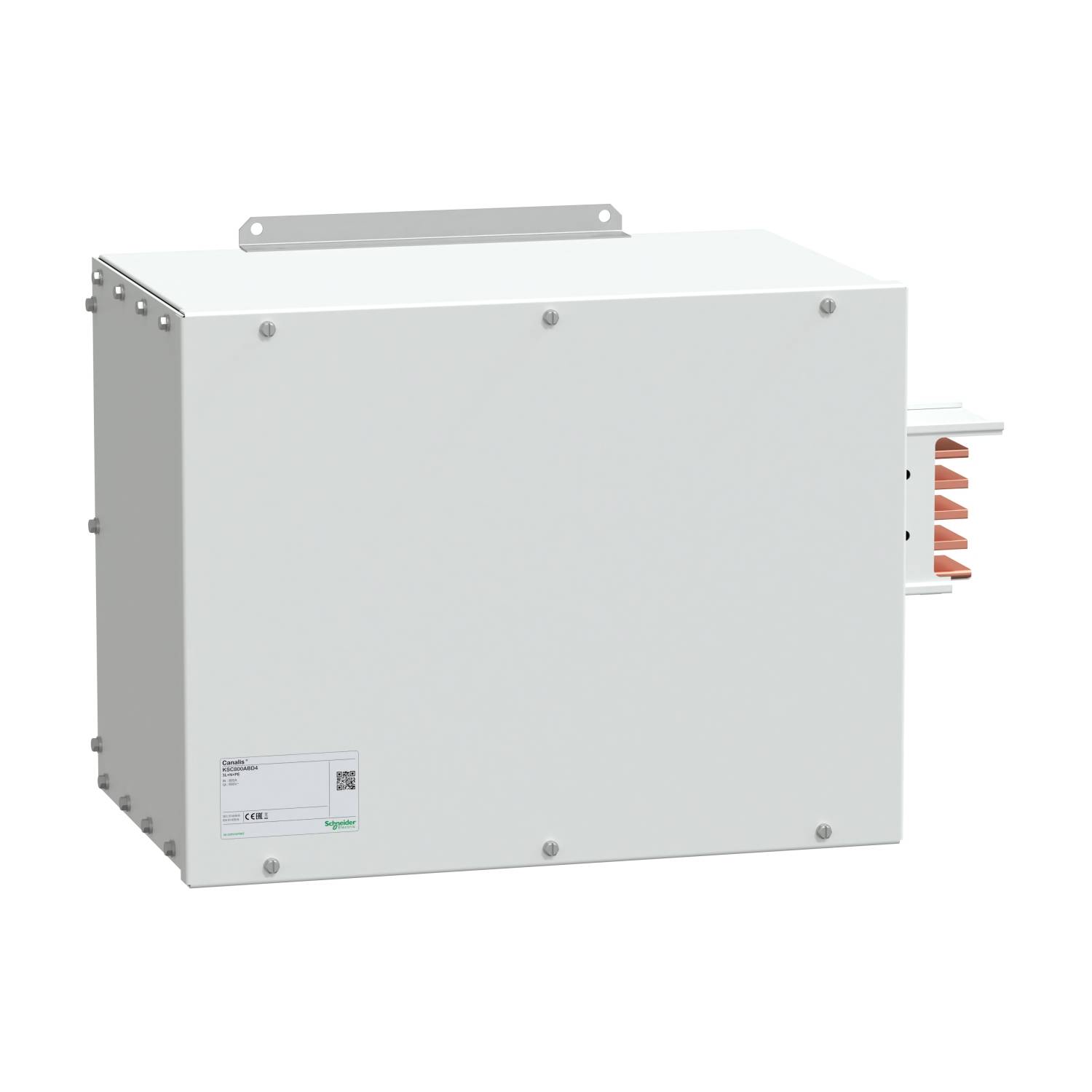

Schneider Electric KSA1000ABD4 KSA final feed, 1000A, right-hand assembly End feed White 1 pc(s)
EAN:
Part number:
Item no:
Product type
End feed
Factory colour
White
Content
1 pc(s)
Colour
White
Width
370
Datasheet (PDF)
Number
Total (€ 1,500.00 / piece)
€ 1,500.00
plus VAT.
14-day return policy included
Technical specifications
- Product type
End feed
- Factory colour
White
- Content
1 pc(s)
White
370
Single
500 mm
9001
5
753 m
IP55
End
1000 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2928674 Schneider Electric KSA1000ABD4 KSA final feed, 1000A, right-hand assembly End feed White 1 pc(s)
Datasheet 2928674 Schneider Electric KSA1000ABD4 KSA final feed, 1000A, right-hand assembly End feed White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2928674 Schneider Electric KSA1000ABD4 KSA final feed, 1000A, right-hand assembly End feed White 1 pc(s)
Information
Information 2928674 Schneider Electric KSA1000ABD4 KSA final feed, 1000A, right-hand assembly End feed White 1 pc(s)
Information 2928674 Schneider Electric KSA1000ABD4 KSA final feed, 1000A, right-hand assembly End feed White 1 pc(s)
Information 2928674 Schneider Electric KSA1000ABD4 KSA final feed, 1000A, right-hand assembly End feed White 1 pc(s)
Description
Canalis power supply unit for KSA. It is compatible with flange plate FL21. The rated operating voltage ranges from 230VAC to 690 VAC. The rated operating current is 800A and 1000A. The rod material of the feeder unit is aluminum with white surface treatment according to RAL 9001. Busbar mounting by screws with right installation position, connection by cable lug clamps. Design with 1 branch possibility. It offers IP55 protection, which conforms to the standard IEC 60529-2. IK08 is compliant with IEC 62262. It complies with IEC 60439-2 and IEC 61439-6. It also complies with Green Premium (RoHS/REACH).
