Schneider Electric KSA630ABT4 KSA Middle feed, 630A Central feed White 1 pc(s)
EAN:
Part number:
Item no:
Product type
Central feed
Factory colour
White
Content
1 pc(s)
Colour
White
Width
386
Datasheet (PDF)
Number
Total (€ 1,424.37 / piece)
€ 1,424.37
plus VAT.
14-day return policy included
Technical specifications
- Product type
Central feed
- Factory colour
White
- Content
1 pc(s)
White
386
Single
513 mm
9001
4
1001 m
IP55
Centre
630 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2928609 Schneider Electric KSA630ABT4 KSA Middle feed, 630A Central feed White 1 pc(s)
Datasheet 2928609 Schneider Electric KSA630ABT4 KSA Middle feed, 630A Central feed White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2928609 Schneider Electric KSA630ABT4 KSA Middle feed, 630A Central feed White 1 pc(s)
Information
Information 2928609 Schneider Electric KSA630ABT4 KSA Middle feed, 630A Central feed White 1 pc(s)
Information 2928609 Schneider Electric KSA630ABT4 KSA Middle feed, 630A Central feed White 1 pc(s)
Information 2928609 Schneider Electric KSA630ABT4 KSA Middle feed, 630A Central feed White 1 pc(s)
Information 2928609 Schneider Electric KSA630ABT4 KSA Middle feed, 630A Central feed White 1 pc(s)
Description

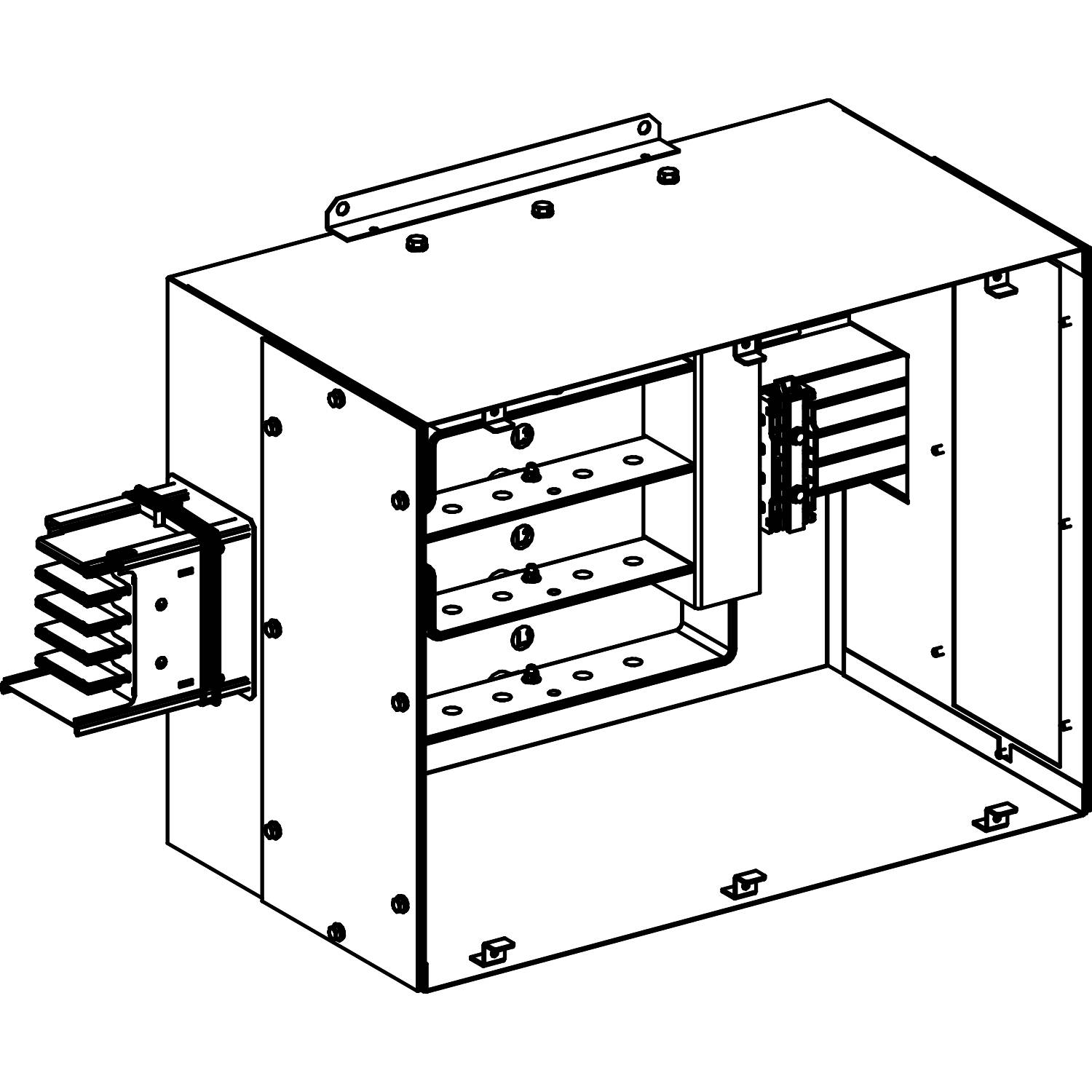

Canalis power supply unit for KSA. It is compatible with flange plate FL21. The rated operating voltage ranges from 230VAC to 690 VAC. Rated operating current is 500A and 630A. The rod material of the feeder unit is aluminum with white surface treatment according to RAL 9001. Busbar mounting by screws with central mounting position, connection by cable lug clamps. Design with 1 branch possibility. It offers IP55 protection, which conforms to the standard IEC 60529-2. IK08 is compliant with IEC 62262. It complies with IEC 60439-2 and IEC 61439-6. It also complies with Green Premium (RoHS/REACH).
This text is machine translated.
This text is machine translated.
