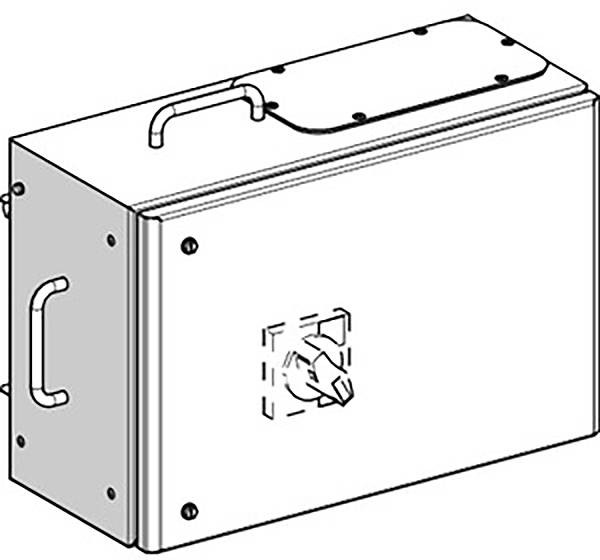

Schneider Electric KSB160DC5 KS junction box,160A, empty, for 3p. Compact NSX with rotary drive Distribution board acces
EAN:
Part number:
Item no:
Product type
Distribution board accessories
Content
1 pc(s)
Colour
White
Width
246
Height
342 mm
Datasheet (PDF)
Number
Total (€ 511.76 / piece)
€ 511.76
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Product type
Distribution board accessories
- Content
1 pc(s)
White
246
342 mm
9001
FALSE
None
4
FALSE
3
482 m
IP55
0
0
Pipe in-lead
Other
160 A
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2928945 Schneider Electric KSB160DC5 KS junction box,160A, empty, for 3p. Compact NSX with rotary drive Distribution board acces
Datasheet 2928945 Schneider Electric KSB160DC5 KS junction box,160A, empty, for 3p. Compact NSX with rotary drive Distribution board acces
User & Safety Instructions
User & Safety Instructions 2928945 Schneider Electric KSB160DC5 KS junction box,160A, empty, for 3p. Compact NSX with rotary drive Distribution board acces
Information
Information 2928945 Schneider Electric KSB160DC5 KS junction box,160A, empty, for 3p. Compact NSX with rotary drive Distribution board acces
Information 2928945 Schneider Electric KSB160DC5 KS junction box,160A, empty, for 3p. Compact NSX with rotary drive Distribution board acces
Information 2928945 Schneider Electric KSB160DC5 KS junction box,160A, empty, for 3p. Compact NSX with rotary drive Distribution board acces
Description
Canalis pickup unit for KT and KS. It is used for medium power distribution and TN-C earthing systems. The operating voltage ranges from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operating current is 160 A at 35 ?. Mounting by plug-in with fixed polarity with white surface treatment according to RAL 9001 and with bus-pole polarity 3L + PEN. It provides protection for NSX switches with turn-handle control (circuit breaker must be ordered separately). 1 Right opening for flange plate FL21 to cut off the device by opening the door. Canalis KS busbar distributors are compatible with sockets; Canalis KT busbar distributors are compatible with KS type sockets. It offers IP55 protection, which conforms to the standard EN/IEC 60529-4. IK08 is compliant with IEC 62262. It complies with IEC 61439-1 and IEC 61439-6. It also complies with Green Premium (RoHS/REACH).
