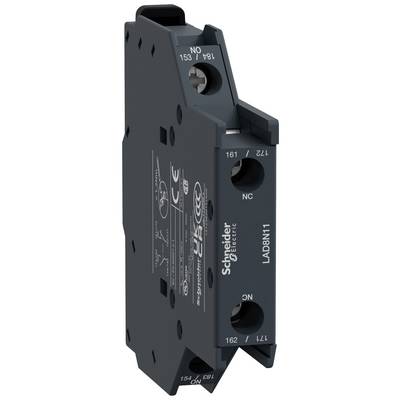

Schneider Electric LAD8N11 Auxiliary switch module 1 maker, 1 breaker + auxiliary contact Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary switch module
Connection
Screw terminal
Packaging type
Piece
Type
LAD8N11
Contact type
1 maker
1 breaker
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
14-day return policy included
Highlights & Details
Auxiliary switch block charges 8 N 11
- Undelayed auxiliary contact block TeSys DECA, only for LC.D contactors and CAD control relays with AC coils.
- It offers contacts with 1 normally open contact and 1 normally closed contact (certified NC-reflector) with a nominal power of up to 10 A, 690 V AC, connection via screw terminals.
- The side clip-on assembly ensures high reliability and long life.
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
Auxiliary switch module
- Type
LAD8N11
- Contact type
1 maker
1 breaker
- Switching voltage (min.)
17 V DC
17 V AC
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
10 A
- Features
+ auxiliary contact
- Mounting type
Site
- Connection
Screw terminal
IP2X
- Min. temperature
-25 °C
- Max. temperature
+50 °C
- Width
12.5 mm
- Height
76 mm
- Depth
35 mm
- Dim
(W x H x D) 12.5 x 76 x 35 mm
- Content
1 pc(s)
- UKCA
yes
