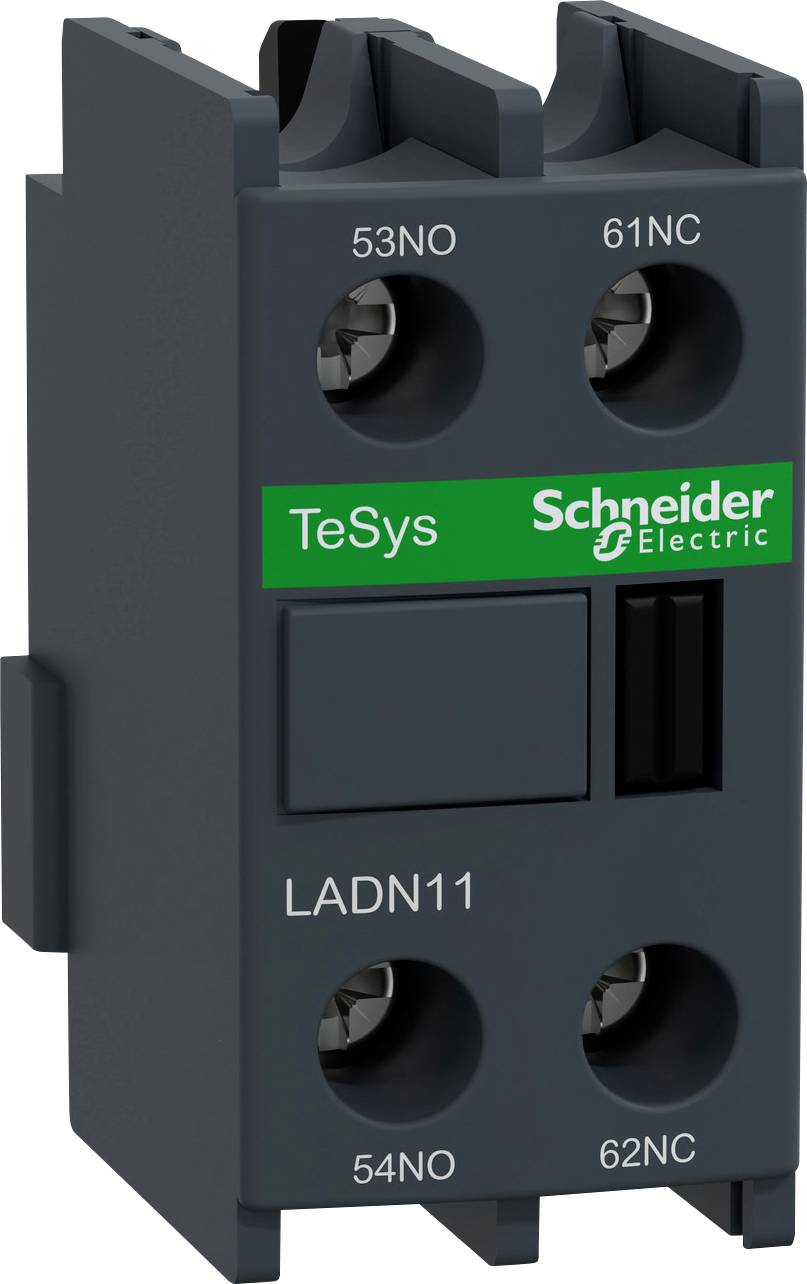

Schneider Electric LADN11 Auxiliary switch module 1 maker, 1 breaker 690 W 690 V 10 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary switch module
No. of pins
2-pin
Nominal voltage
690 V
Current load
10 A
Power
690 W
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Only 3 Piece(s) available
Highlights & Details
AUX. SW. Block ser. LADN series
- TeSys DECA instantaneous auxiliary contact block, for LC1D, LC1F contactors and CAD control relays.
- It offers 1 closer + 1 opener (opener-mirror-certified) with a nominal power of up to 10 A/690 V AC, connection via screw terminals.
- Clip-on front mounting ensures high reliability and long life.
- This text is machine translated.
Technical specifications
- Product type
Auxiliary switch module
- Type
LADN11
- No. of pins
2-pin
- Contact type
1 maker
1 breaker
- Nominal voltage
690 V
- Switching voltage (min.)
17 V DC
17 V AC
- Current load
10 A
690 W
- Mounting type
Front
- Connection
Screw terminal
IP2X
- Min. temperature
-25 °C
- Max. temperature
+50 °C
- Width
26 mm
- Height
48 mm
- Depth
35 mm
- Dim
(W x H x D) 26 x 48 x 35 mm
- Content
1 pc(s)
- UKCA
yes
