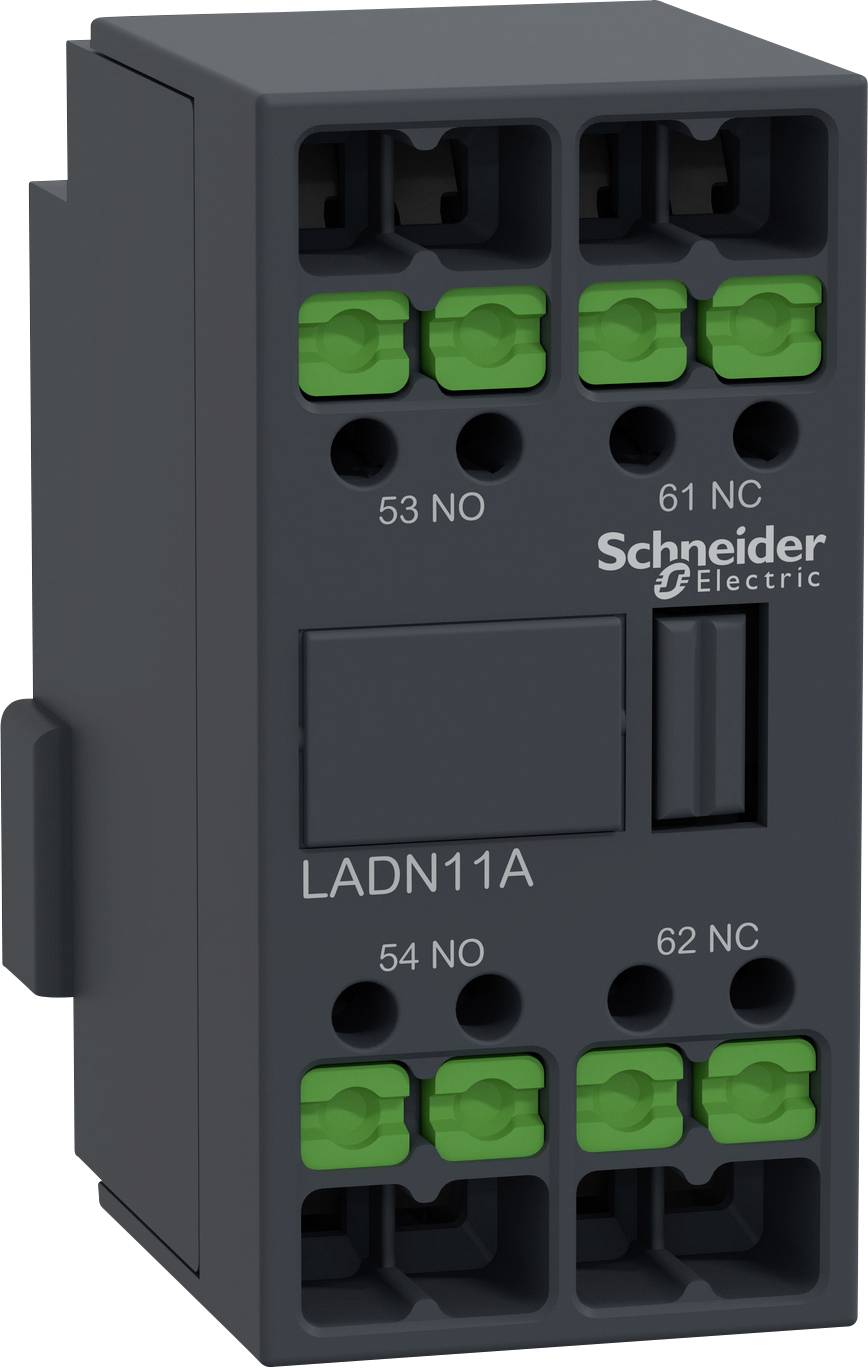

Schneider Electric LADN11A Auxiliary switch module 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary switch module
Connection
Snap-in
Type
LADN11A
Switching voltage (max.)
690 V AC
Permanent current (max.)
10 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Auxiliary switch block, 1S+1Ö, SNAP IN terminal clamps
- TeSys DECA contactors and motor-operated circuit breakers with innovative SNAP IN connection technology
- The SNAP IN terminal closure ends with one click, as soon as the conductor is inserted correctly
- Visual and haptic feedback of the wiring
- Flexible and rigid conductor can be inserted without wire end sleeve
- Tool-free and intuitive to use
- Secure wiring even in case of strong vibrations, no retightening needed
- "Ready to Robot" e.g. for automatic control cabinet construction
Technical specifications
- Product type
Auxiliary switch module
- Type
LADN11A
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
10 A
- Mounting type
Push-fit
- Connection
Snap-in
- Content
1 pc(s)
Front fastening
Top mounting
10 A
Other
0
1
1
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3412532 Schneider Electric LADN11A Auxiliary switch module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3412532 Schneider Electric LADN11A Auxiliary switch module 1 pc(s)
Description
Auxiliary contact block LADN. Undelayed auxiliary switch block for LC1D contactors and CAD control relays. It offers 1 NO+1 NC contacts with a nominal voltage of up to 10 A, 690 V AC, connection via SNAP IN terminal. Simple clip-on assembly on the front side for high reliability and durability. Fast, safe and maintenance-free power connection with SNAP IN THE connection terminal. Suitable for security applications thanks to mechanically coupled contacts and mirror contacts. With the Snap IN spring clamp a conductor can be connected in just one second. This is a time saving of 96 percent compared to about 30 seconds for screw connections. Also, as compared to spring terminals and push-in systems, the wiring with SNAP IN is up to 88 percent faster
