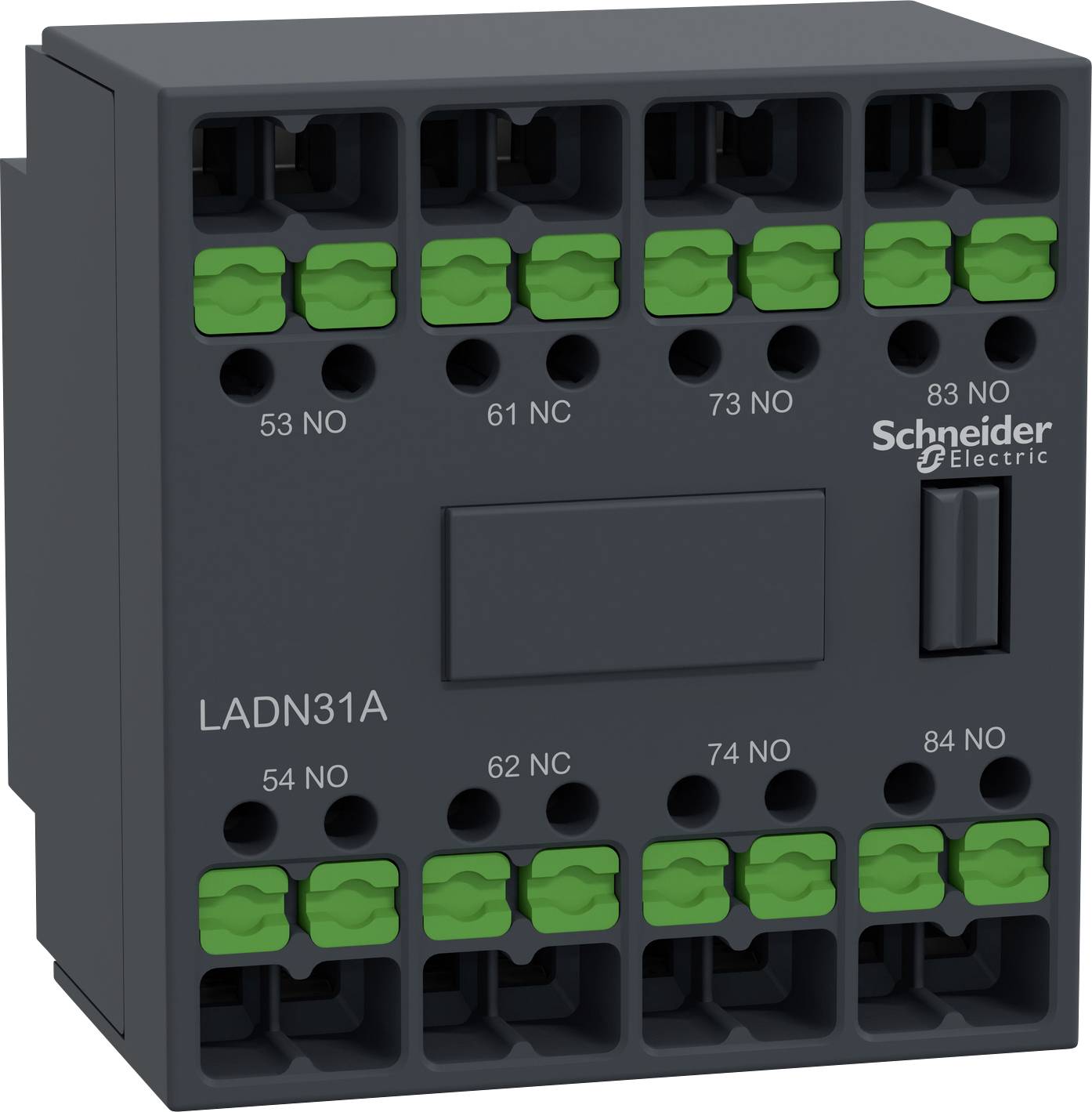

Schneider Electric LADN31A Auxiliary switch module 3 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Auxiliary switch module
Connection
Snap-in
Type
LADN31A
Contact type
3 makers
Auxiliary contact type
3 makers
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
14-day return policy included
Highlights & Details
AUX. SW. Block, 3S+1Ö, SNAP IN terminal clamps
- TeSys DECA contactors and motor-operated circuit breakers with innovative SNAP IN connection technology
- The SNAP IN terminal closure ends with one click, as soon as the conductor is inserted correctly
- Visual and haptic feedback of the wiring
- Flexible and rigid conductor can be inserted without wire end sleeve
- Tool-free and intuitive to use
- Secure wiring even in case of strong vibrations, no retightening needed
- "Ready to Robot" e.g. for automatic control cabinet construction
Technical specifications
- Product type
Auxiliary switch module
- Type
LADN31A
- Contact type
3 makers
- Auxiliary contact type
3 makers
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
10 A
- Mounting type
Push-fit
- Connection
Snap-in
- Content
1 pc(s)
Front fastening
Top mounting
10 A
Other
0
1
3
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3412519 Schneider Electric LADN31A Auxiliary switch module 3 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3412519 Schneider Electric LADN31A Auxiliary switch module 3 makers 1 pc(s)
Description
Auxiliary contact block LADN. Undelayed auxiliary switch block for LC1D contactors and CAD control relays. It offers 3 NO+1 NC contacts with a nominal voltage of up to 10 A, 690 V AC, connection via SNAP IN terminal. Simple clip-on assembly on the front side for high reliability and durability. Fast, safe and maintenance-free power connection with SNAP IN THE connection terminal. Suitable for security applications thanks to mechanically coupled contacts and mirror contacts. With the Snap IN spring clamp a conductor can be connected in just one second. This is a time saving of 96 percent compared to about 30 seconds for screw connections. Also, as compared to spring terminals and push-in systems, the wiring with SNAP IN is up to 88 percent faster
