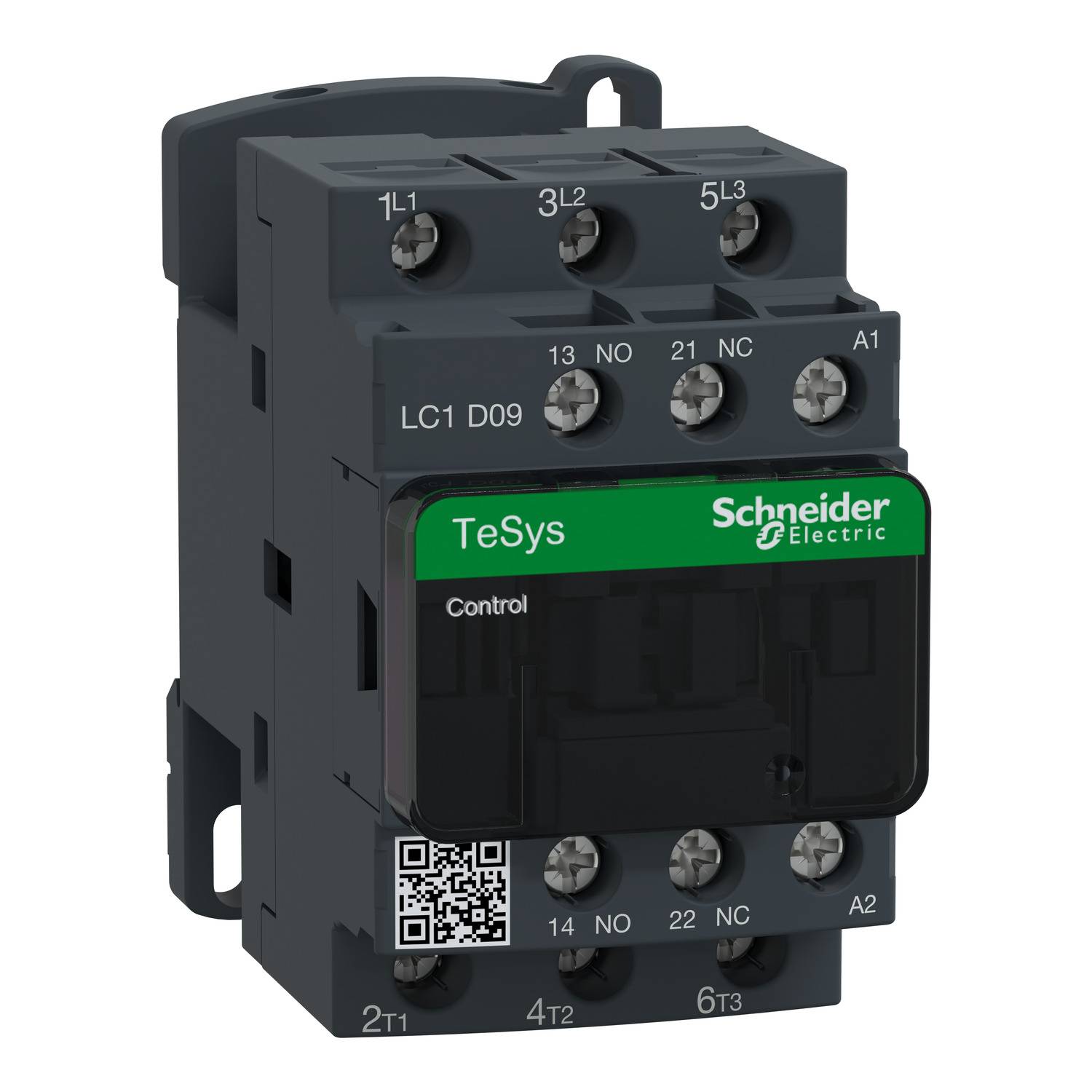

Schneider Electric LC1D09B7TQ Electrical contactor 3 makers w/o protection diode 24 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Connection
Spring-loaded terminal
Type
LC1D09B7TQ
Contact type
3 makers
Number (Package size 24 pc(s))
Total (€ 33.44 / piece)
€ 802.52
plus VAT.
14-day return policy included
Technical specifications
- Product type
Electrical contactor
- Type
LC1D09B7TQ
- No. of pins
3-pin
- Contact type
3 makers
- Control voltage (max.)
24 V AC
- Control voltage range
24 V AC (max)
- Permanent current (max.)
9 A
- Features
w/o protection diode
- Connection
Spring-loaded terminal
- Width
45 mm
- Height
77 mm
- Depth
86 mm
- Dim
(W x H x D) 45 x 77 x 86 mm
- Content
24 pc(s)
FALSE
4 kW
3
0
1
1
9 A
25 A
Screw connection
AC
6 A
2.2 kW
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3066172 Schneider Electric LC1D09B7TQ Electrical contactor 3 makers w/o protection diode 24 pc(s)
Description
Power protection TeSys LC1D. 3 pin, 3 normally open contact. Additional auxiliary contacts - 1 NO contact + 1 NC contact, rated operating power at AC-3, 400 V 4 kW, rated operating current Ie at AC-3, 400 V 9 A, coil 24 V AC. Dimensions (WxHxD) 45x77x86 mm, weight 3.2 kg. Category AC-3, AC-1. Without built-in amplitude limiter diode. Fast and easy setup. Safe and durable power connection with Everlink and spring-loaded terminals. Suitable for security applications thanks to mechanically coupled contacts and mirror contacts. Certified according to UL, DNV, BV, CSA, LROS (Lloyds register of shipping), CCC, GOST, GL, RINA. Product standards according to EN/IEC 60947-4-1, UL 508, CSA C22.2 NO 14, EN/IEC 60947-5-1.
