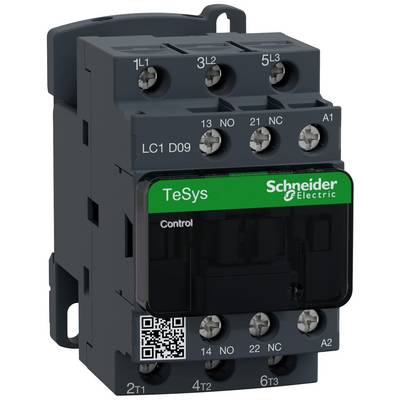

Schneider Electric LC1D09P7 Contactor 1 maker, 1 breaker 440 W 230 V AC 9 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
3-pin
Nominal voltage
230 V AC
Current load
9 A
Power
440 W
Datasheet (PDF)
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
14-day return policy included
Highlights & Details
Protection Series LC1
- TeSys D contactor, 3-pole (3 NO contact), for motor control applications up to 9 A/690 V AC-3/3e (4 kW at 400 V).
- It has a 230 V 50/60 Hz AC coil, integrated 1 NO contact + 1 NC auxiliary contacts (certified NC mirror), connection via screw terminals.
- For operating rates up to 3600 cycles/hour and environments up to 60 °C it offers high reliability and long life for demanding applications.
- This text is machine translated.
Technical specifications
- Product type
Contactor
- Type
LC1D09P7
- No. of pins
3-pin
- Contact type
1 maker
1 breaker
- Nominal voltage
230 V AC
- Current load
9 A
440 W
- Mounting type
DIN rail
- Connection
Screw terminal
IP2X
- Min. temperature
-5 °C
- Max. temperature
+60 °C
- Width
45 mm
- Height
77 mm
- Depth
86 mm
- Dim
(W x H x D) 45 x 77 x 86 mm
- Content
1 pc(s)
- UKCA
yes
