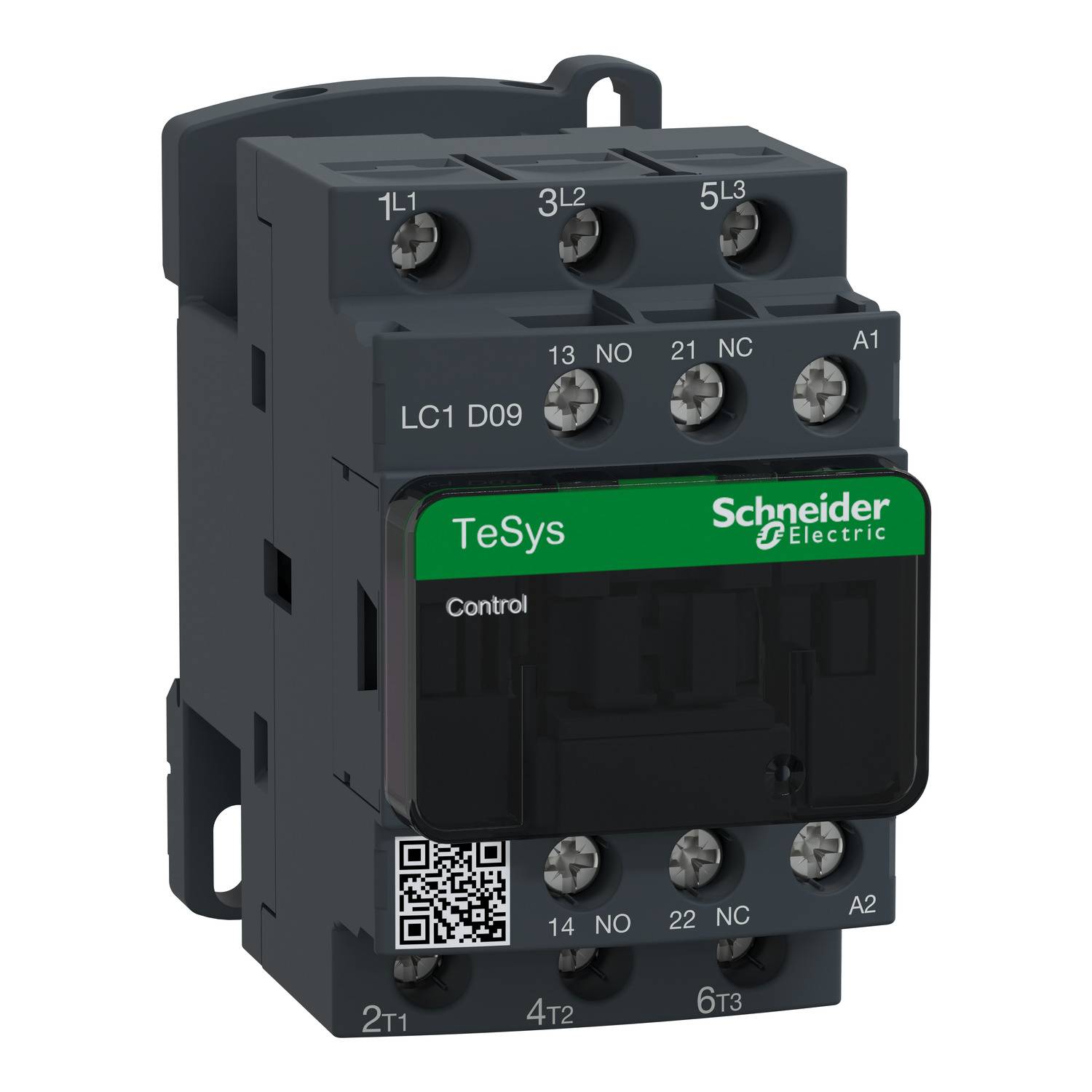

Schneider Electric LC1D09P7TQ Electrical contactor 3 makers 4 kW 24 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
4 kW
Connection
Spring-loaded terminal
Type
LC1D09P7TQ
Number (Package size 24 pc(s))
Total (€ 33.23 / piece)
€ 797.48
plus VAT.
14-day return policy included
Technical specifications
- Product type
Electrical contactor
- Type
LC1D09P7TQ
- No. of pins
3-pin
- Contact type
3 makers
- Control voltage (max.)
230 V AC
- Control voltage range
230 V AC (max)
- Permanent current (max.)
9 A
4 kW
- Connection
Spring-loaded terminal
- Width
45 mm
- Height
77 mm
- Depth
86 mm
- Dim
(W x H x D) 45 x 77 x 86 mm
- Content
24 pc(s)
FALSE
4 kW
3
0
1
1
9 A
25 A
Screw connection
AC
6 A
2.2 kW
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3066166 Schneider Electric LC1D09P7TQ Electrical contactor 3 makers 4 kW 24 pc(s)
Description
Power protection TeSys LC1D. 3 pin, 3 normally open contact. Additional auxiliary contacts - 1 NO contact + 1 NC contact, rated operating power at AC-3, 400 V 4 kW, rated operating current Ie at AC-3, 400 V 9 A, coil 230 V AC. Dimensions (WxHxD) 45x77x86 mm, weight 3.2 kg. Category AC-1, AC-3. Without built-in amplitude limiter diode. Fast and easy setup. Safe and durable power connection with Everlink and spring-loaded terminals. Suitable for security applications thanks to mechanically coupled contacts and mirror contacts. Certifications according to GOST, CCC, BV, GL, RINA, LROS (Lloyds register of shipping), DNV, CSA, UL. Product standards according to EN/IEC 60947-4-1, CSA C22.2 NO 14, EN/IEC 60947-5-1, UL 508.
