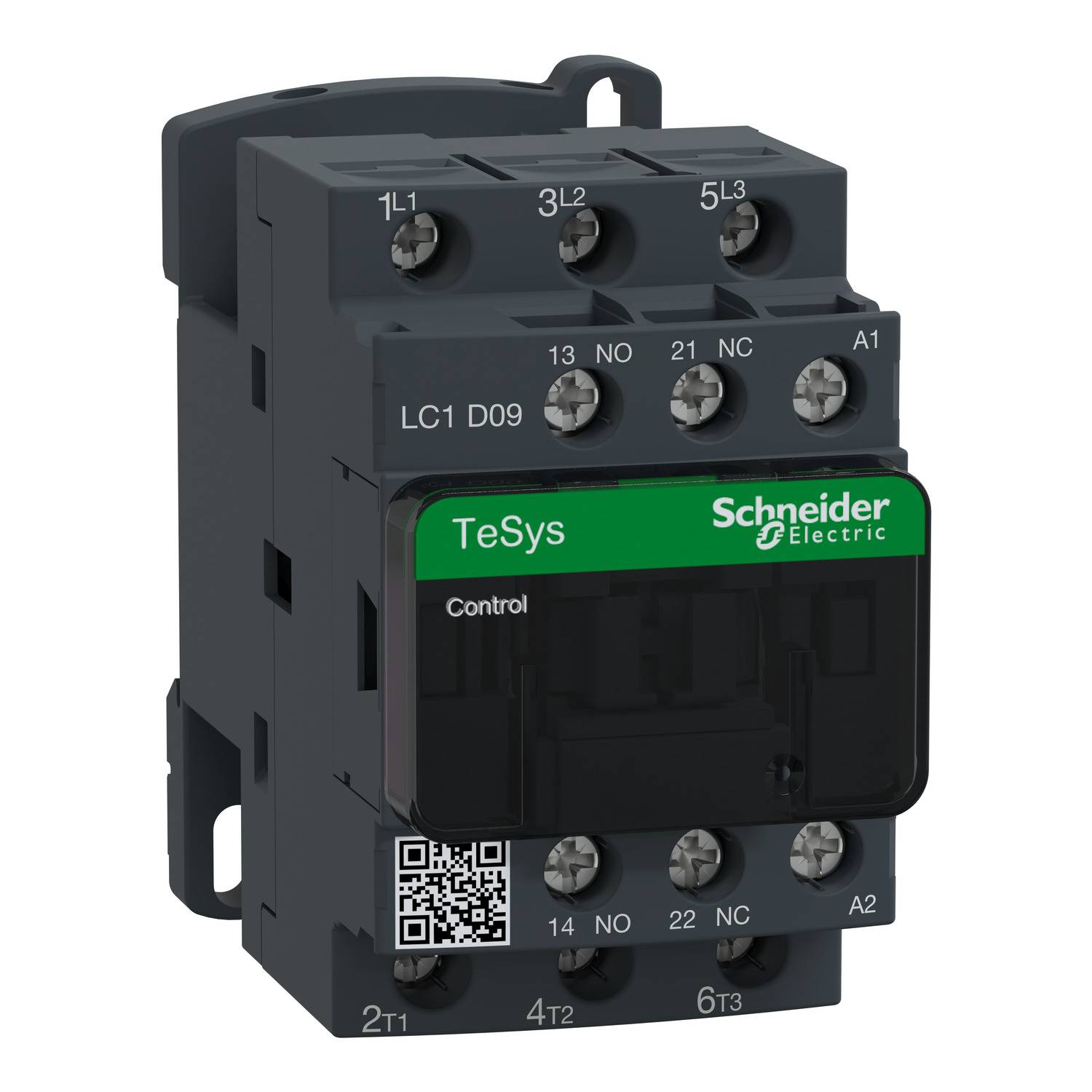

Schneider Electric LC1D09Y7 Electrical contactor 3 makers 4 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
4 kW
Connection
Spring-loaded terminal
Type
LC1D09Y7
Datasheet (PDF)
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
14-day return policy included
Technical specifications
- Product type
Electrical contactor
- Type
LC1D09Y7
- No. of pins
3-pin
- Contact type
3 makers
- Control voltage (max.)
690 V AC
- Control voltage range
690 V AC (max)
- Switching voltage (max.)
400 V AC
- Permanent current (max.)
9 A
4 kW
- Connection
Spring-loaded terminal
- Width
45 mm
- Height
77 mm
- Depth
86 mm
- Dim
(W x H x D) 45 x 77 x 86 mm
- Content
1 pc(s)
FALSE
4 kW
3
0
1
1
9 A
25 A
Screw connection
AC
6 A
2.2 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2923354 Schneider Electric LC1D09Y7 Electrical contactor 3 makers 4 kW 1 pc(s)
Datasheet 2923354 Schneider Electric LC1D09Y7 Electrical contactor 3 makers 4 kW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2923354 Schneider Electric LC1D09Y7 Electrical contactor 3 makers 4 kW 1 pc(s)
Information
Information 2923354 Schneider Electric LC1D09Y7 Electrical contactor 3 makers 4 kW 1 pc(s)
Information 2923354 Schneider Electric LC1D09Y7 Electrical contactor 3 makers 4 kW 1 pc(s)
Information 2923354 Schneider Electric LC1D09Y7 Electrical contactor 3 makers 4 kW 1 pc(s)
