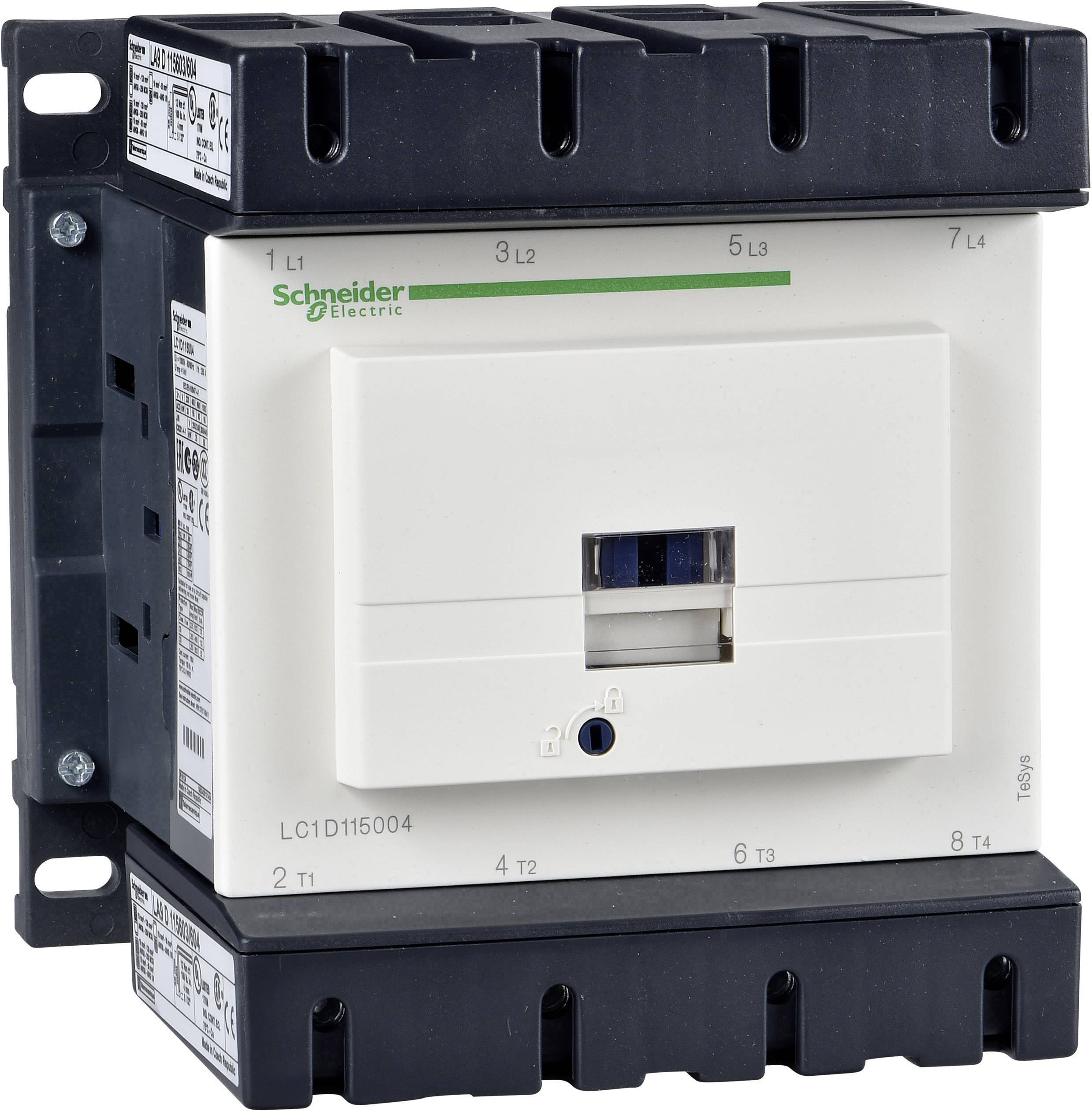

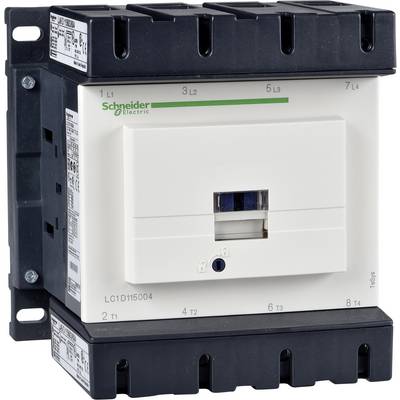

Schneider Electric LC1D115004M7 Electrical contactor Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
4-pin
Connection
Clamp
Packaging type
Piece
Type
LC1D115004M7
Technical specifications
- Packaging type
Piece
- Product type
Electrical contactor
- Type
LC1D115004M7
- No. of pins
4-pin
- Control voltage (max.)
220 V AC
- Control voltage range
220 V AC (max)
- Connection
Clamp
- Width
45 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1978656 Schneider Electric LC1D115004M7 Electrical contactor Piece 1 pc(s)
Description
Standard contactors 0.06 -75 kW In Addition to an attractive and functional design, the TeSys D contactors offer quick and easy installation with a narrow width of 45 or 55 mm at the same time. They meet international standards. The power sizes 40 to 65 A are equipped with Everlink terminals. These are patented and ensure a reliable and permanent connection.
