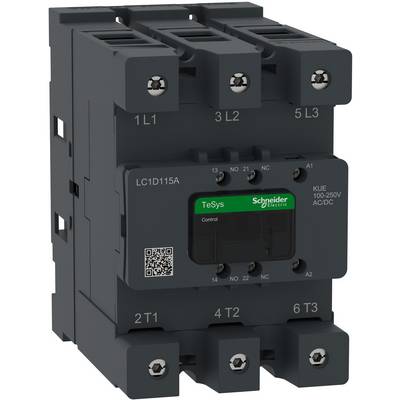

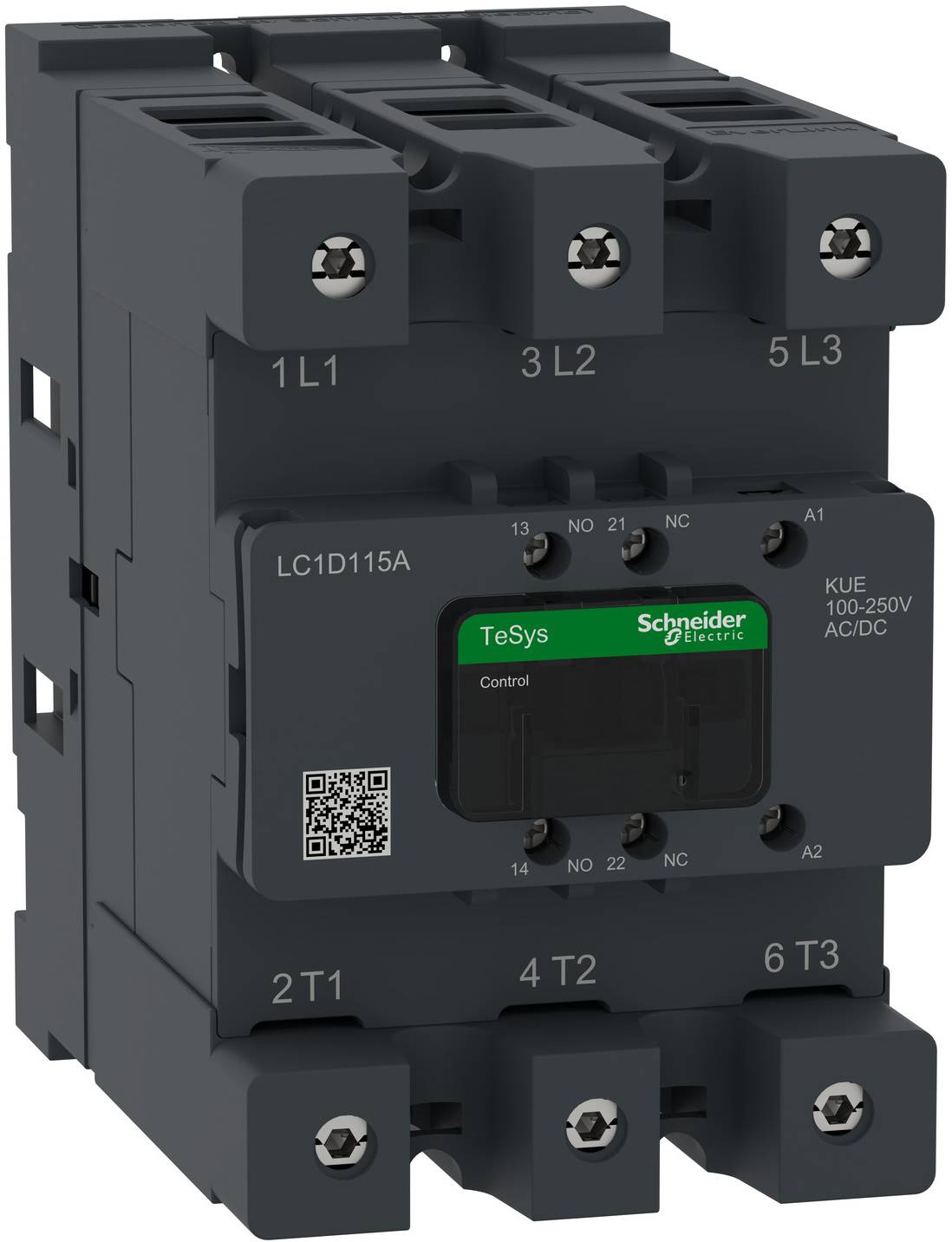

Schneider Electric LC1D115AKUE Electrical contactor 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
Type
LC1D115AKUE
Width
97 mm
Height
152 mm
Depth
155 mm
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 335.29 / piece)
€
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as NO contacts: 1
- Number of auxiliary contacts as NC contacts: 1
- Number of NO contacts as main contacts: 3
- Number of NC contacts as main contacts: 0
- Rated operating power at AC-3, 400 V: 55 kW
- Rated operating power at AC-4, 400 V: 55 kW
- Rated operating current Ie at AC-1, 400 V:200 A.
- Rated operating current Ie at AC-3, 400 V:115 A.
- Rated operating current Ie at AC-4, 400 V:115 A.
- Rated control supply voltage AC 50 Hz: 100-250 V
- Rated control supply voltage AC 60 Hz: 100-250 V
- Rated control supply voltage DC 100-250 V
- Operating voltage AC 50 Hz: 440-440 V
- Operating voltage AC 60 Hz: 440-440 V
- Suitable for series installation: No.
- Type of voltage for activation: AC/DC
- Product type
Electrical contactor
- Type
LC1D115AKUE
- Width
97 mm
- Height
152 mm
- Depth
155 mm
- Dim
(W x H x D) 97 x 152 x 155 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3754914 Schneider Electric LC1D115AKUE Electrical contactor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3754914 Schneider Electric LC1D115AKUE Electrical contactor 1 pc(s)
Description
TeSys DECA advanced contactor, 3 pole (3NO) for applications in category AC-3 to 115A 55kW 400_440V. It is equipped with an electronic broadband coil 100 - 250V AC/DC which has a lower power consumption, as well as with integrated 1NC+1NO auxiliary contacts. The mounting position is arbitrary and LRD43 can be mounted directly under the contactor. The operating temperature range is between -40 °C and 70 °C and can be installed at heights up to 3000 m without any loss of power. It is designed for demanding applications with improved performance under harsh environmental conditions such as salt fog, dust and strong impacts. The dimensions are 152 mm x 97 mm x 155 mm (H x W x D). The compact size reduces the space required. Simple cabling with front access to the control circuit improves accessibility and security. Front IP20 and an improved robustness of the main power connection are achieved by EverLink. Certified according to several standards (CE, CB, CCC, cULus, KC, RCM). Unique QR code allows quick access to complete product data.
