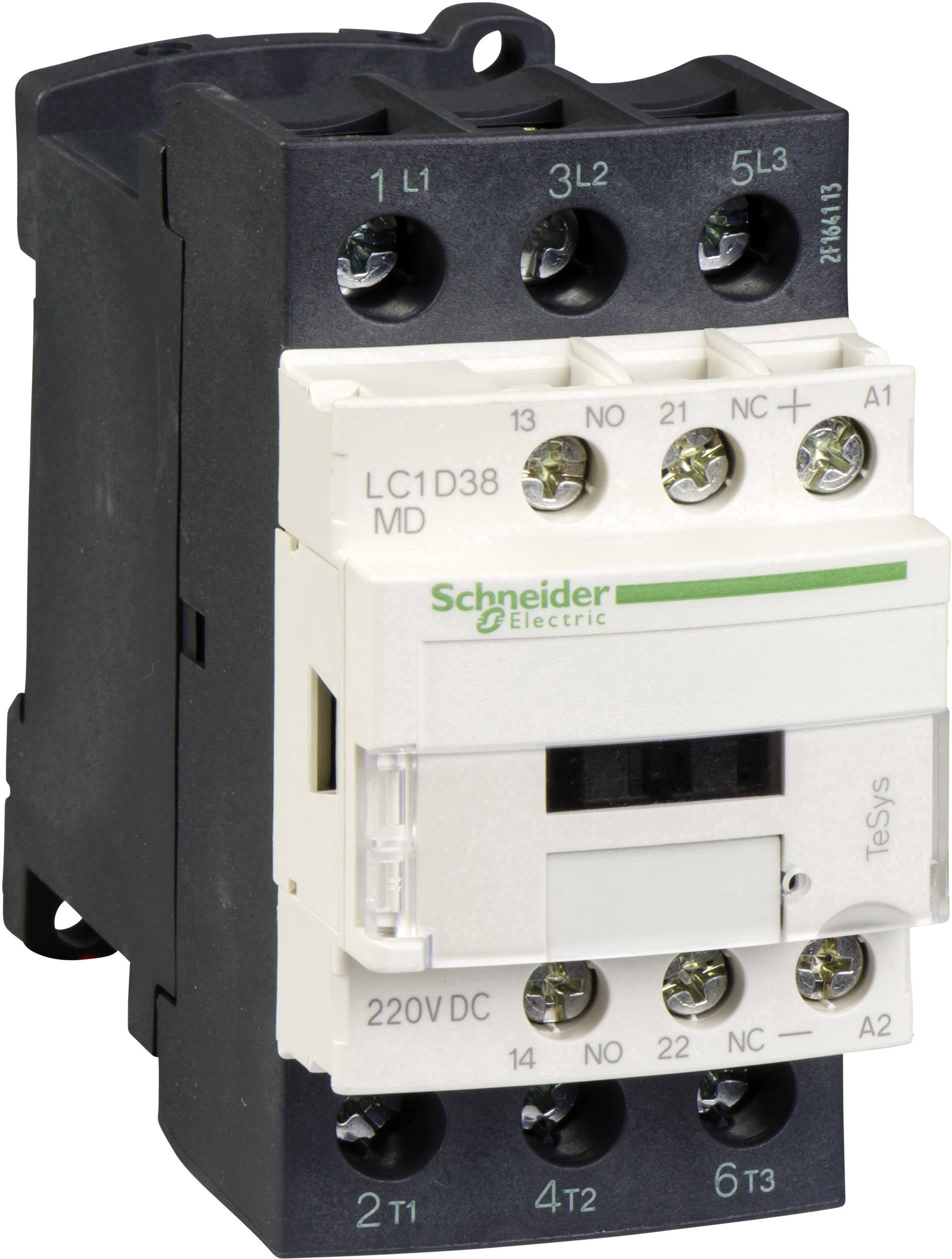

Schneider Electric LC1D38MD Electrical contactor 18.5 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
18.5 kW
Connection
Clamp
Type
LC1D38MD
Technical specifications
- Product type
Electrical contactor
- Type
LC1D38MD
- No. of pins
3-pin
- Control voltage (max.)
220 V DC
- Control voltage range
220 V DC (max)
- Switching voltage (max.)
400 V AC
- Permanent current (max.)
38 A
18.5 kW
- Connection
Clamp
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1979204 Schneider Electric LC1D38MD Electrical contactor 18.5 kW 1 pc(s)
Description
Standard contactors 0.06 -75 kW In Addition to an attractive and functional design, the TeSys D contactors offer quick and easy installation with a narrow width of 45 or 55 mm at the same time. They meet international standards. The power sizes 40 to 65 A are equipped with Everlink terminals. These are patented and ensure a reliable and permanent connection.
