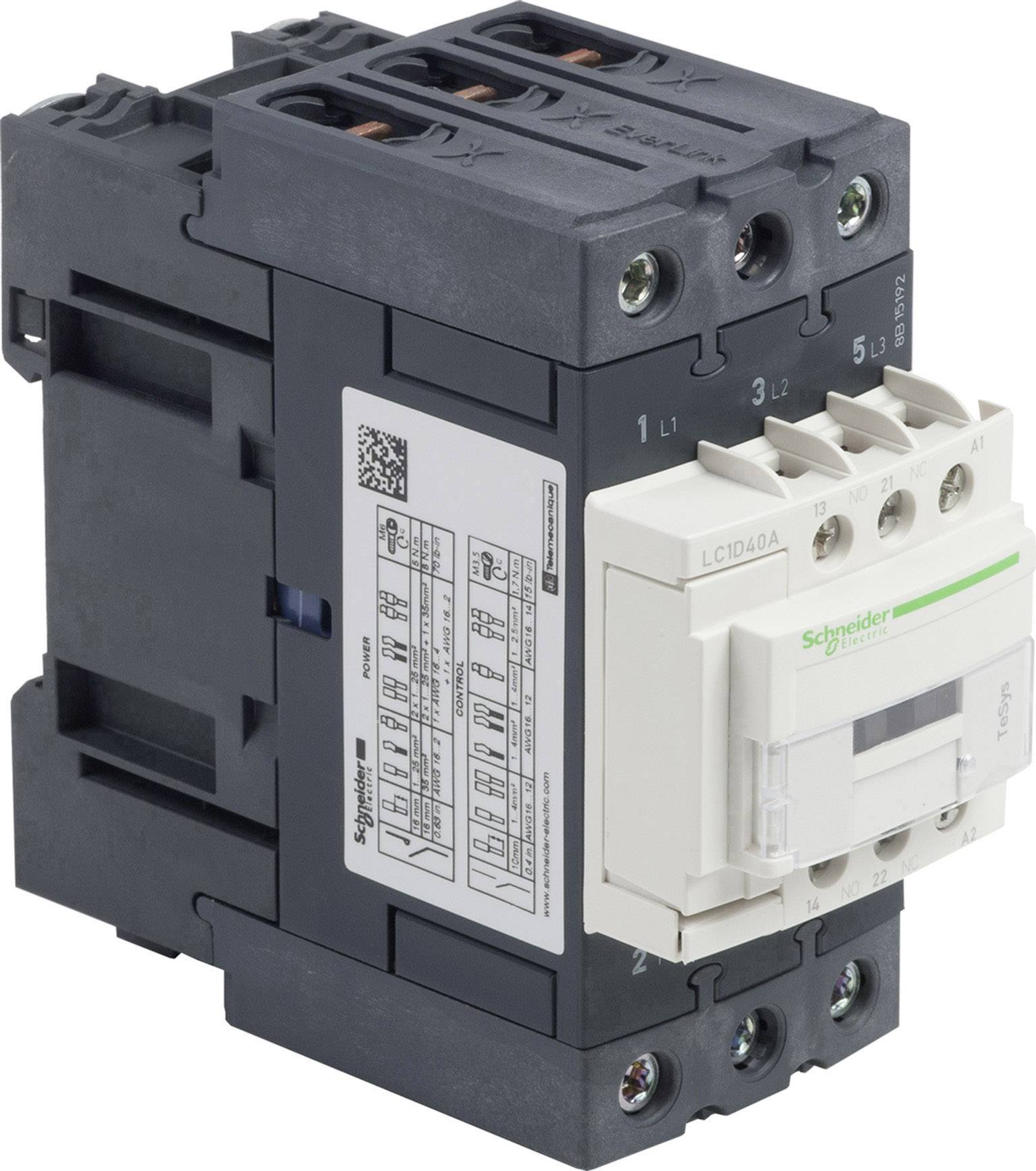

Schneider Electric LC1D40AU7 Electrical contactor 3 makers Single 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
Packaging type
Single
Type
LC1D40AU7
Contact type
3 makers
Auxiliary contact type
1 maker
Technical specifications
- Packaging type
Single
- Product type
Electrical contactor
- Type
LC1D40AU7
- Contact type
3 makers
- Auxiliary contact type
1 maker
- Control voltage (min.)
240 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
240 - 240 V AC
- Switching voltage (min.)
440 V AC
- Switching voltage (max.)
440 V AC
- Permanent current (max.)
60 A
- Width
55 mm
- Height
122 mm
- Depth
120 mm
- Dim
(W x H x D) 55 x 122 x 120 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1979275 Schneider Electric LC1D40AU7 Electrical contactor 3 makers Single 1 pc(s)
Description
Standard contactors 0.06 -75 kW In Addition to an attractive and functional design, the TeSys D contactors offer quick and easy installation with a narrow width of 45 or 55 mm at the same time. They meet international standards. The power sizes 40 to 65 A are equipped with Everlink terminals. These are patented and ensure a reliable and permanent connection.
