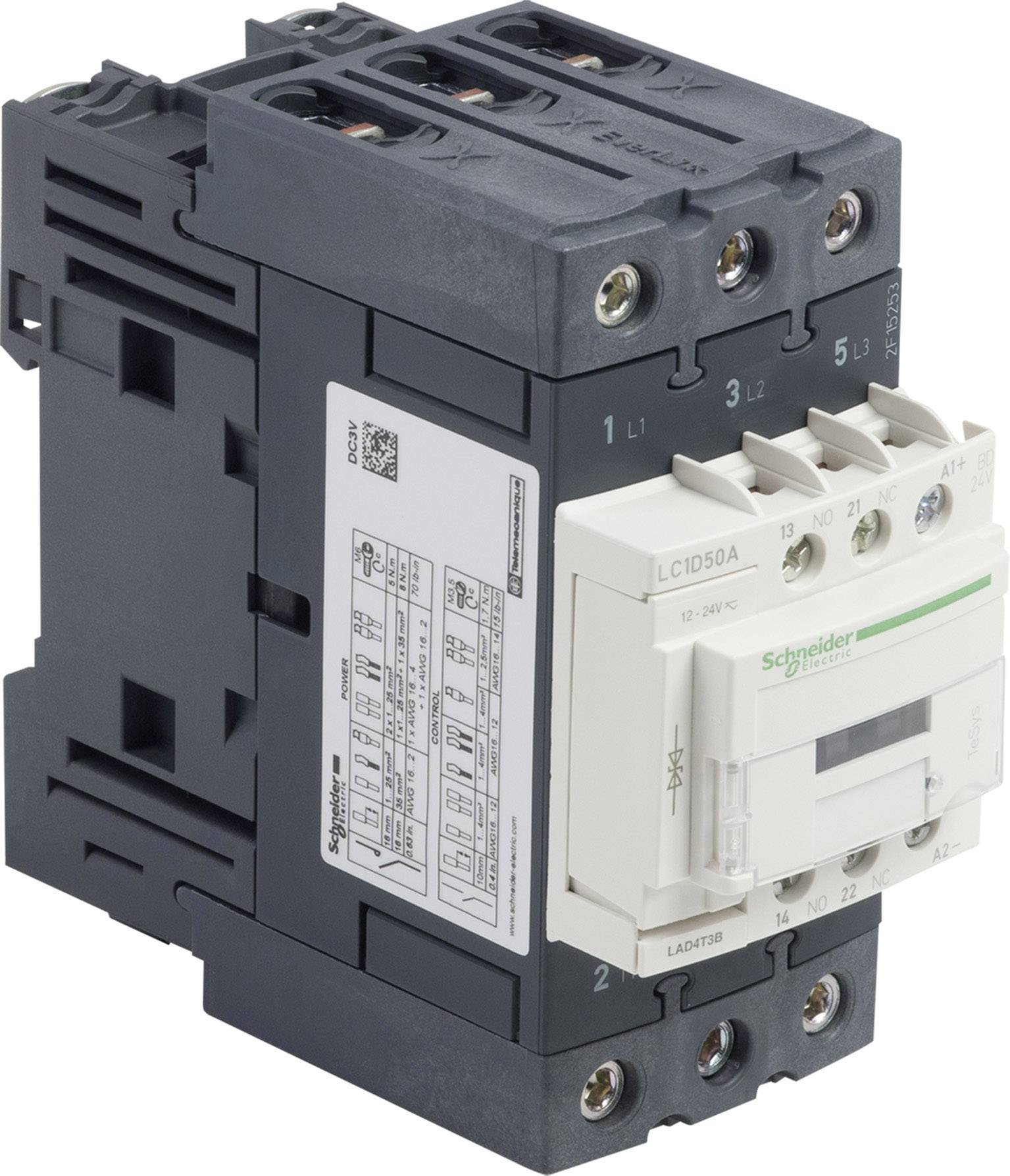

Schneider Electric LC1D50ABD Electrical contactor 3 makers 22 kW + auxiliary contact 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
22 kW
Type
LC1D50ABD
Contact type
3 makers
Technical specifications
- Product type
Electrical contactor
- Type
LC1D50ABD
- No. of pins
3-pin
- Contact type
3 makers
- Control voltage (min.)
24 V DC
- Control voltage (max.)
24 V DC
- Control voltage range
24 - 24 V DC
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
80 A
22 kW
- Features
+ auxiliary contact
- Mounting type
DIN rail
- Width
55 mm
- Height
122 mm
- Depth
120 mm
- Dim
(W x H x D) 55 x 122 x 120 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1979304 Schneider Electric LC1D50ABD Electrical contactor 3 makers 22 kW + auxiliary contact 1 pc(s)
Description
3-pin TeSys D power contactor for motor applications up to 22kW with 400V/AC3. 24V DC-coil, in-built auxiliary contacts 1S+1NC, thanks to its certified S-mirror contact, can be used in safety applications. Compact, DIN rail mounting, thus high reliability and long life. Multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHS/Reach).
