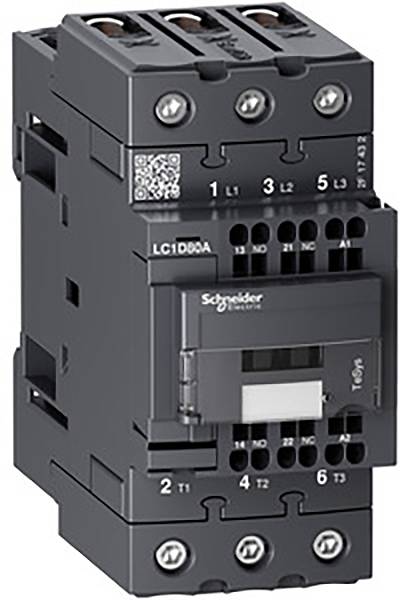

Schneider Electric LC1D80A3F7 Electrical contactor 3 makers 37 kW + auxiliary contact Single 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
37 kW
Connection
Spring-loaded terminal
Packaging type
Single
Datasheet (PDF)
Number
Total (€ 293.28 / piece)
€ 293.28
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Single
- Product type
Electrical contactor
- Type
LC1D80A3F7
- No. of pins
3-pin
- Contact type
3 makers
- Control voltage (max.)
110 V AC
- Control voltage range
110 V AC (max)
- Permanent current (max.)
80 A
37 kW
- Features
+ auxiliary contact
- Connection
Spring-loaded terminal
- Width
55 mm
- Height
122 mm
- Depth
120 mm
- Dim
(W x H x D) 55 x 122 x 120 mm
- Content
1 pc(s)
TRUE
37 kW
3
0
1
1
66 A
80 A
Screw connection
AC
65 A
30 kW
29.8
- UKCA
not relevant
