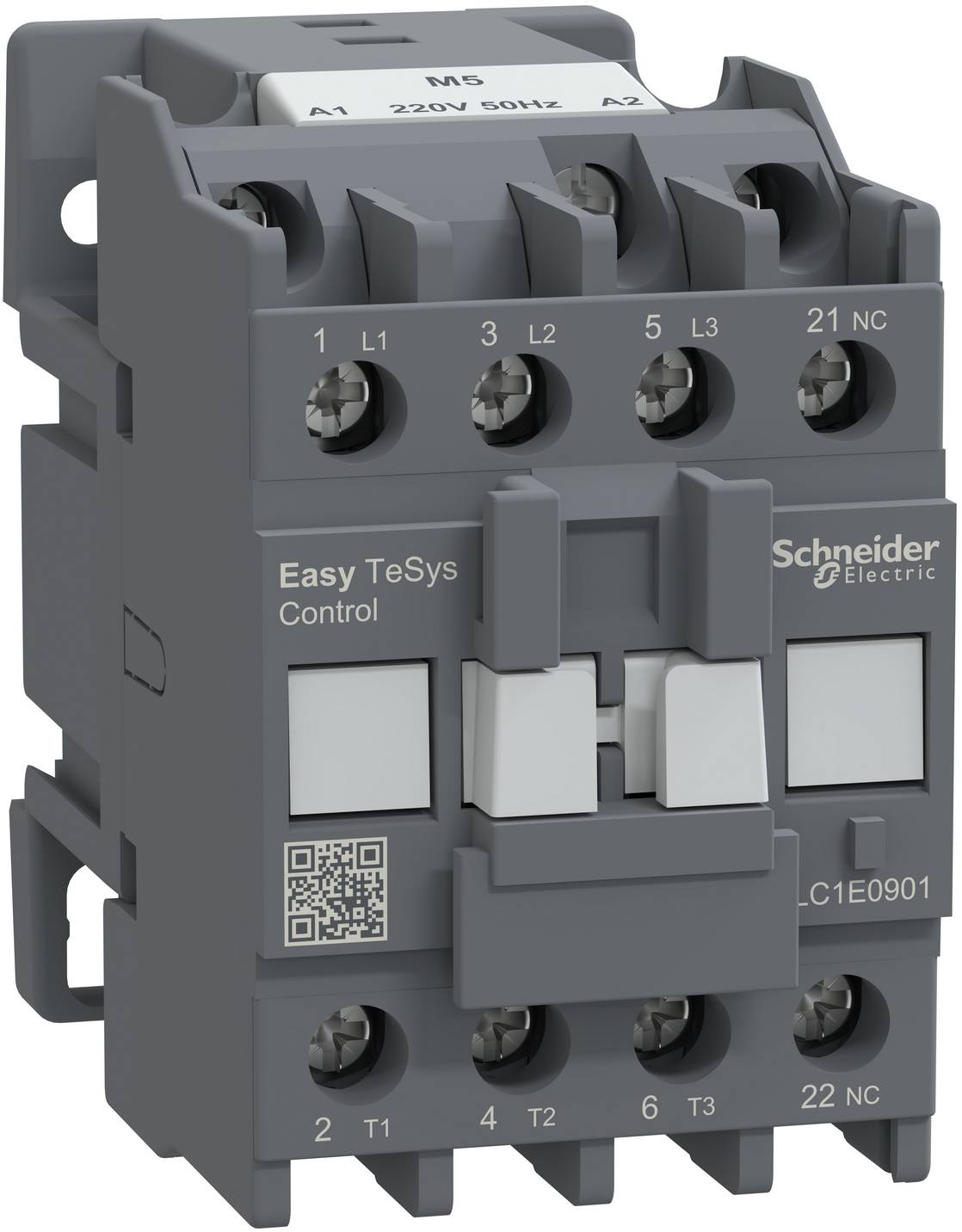

Schneider Electric LC1E0901M5 Electrical contactor 3 makers 4 kW + auxiliary contact Single 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
4 kW
Connection
Screw terminal
Packaging type
Single
Datasheet (PDF)
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as NO contacts: 0
- Number of auxiliary contacts as NC contacts: 1
- Number of NO contacts as main contacts: 3
- Number of NC contacts as main contacts: 0
- Rated operating power at AC-3, 400 V: 4 kW
- Rated operating current Ie at AC-1, 400 V:25 A.
- Rated operating current Ie at AC-3, 400 V:9 A.
- Rated control supply voltage AC 50 Hz: 220-220 V
- Operating voltage AC 50 Hz: 690-690 V
- Operating voltage AC 60 Hz: 690-690 V
- Suitable for series installation: No.
- Type of voltage for activation: AC
- Packaging type
Single
- Product type
Electrical contactor
- Type
LC1E0901M5
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
1 breaker
- Control voltage (min.)
220 V AC
- Control voltage (max.)
220 V AC
- Control voltage range
220 - 220 V AC
- Switching voltage (min.)
690 V AC
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
25 A
4 kW
- Features
+ auxiliary contact
- Mounting type
DIN rail
- Connection
Screw terminal
- Min. temperature
-5 °C
- Max. temperature
55 °C
- Width
45 mm
- Height
74 mm
- Depth
80 mm
- Dim
(W x H x D) 45 x 74 x 80 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3754948 Schneider Electric LC1E0901M5 Electrical contactor 3 makers 4 kW + auxiliary contact Single 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3754948 Schneider Electric LC1E0901M5 Electrical contactor 3 makers 4 kW + auxiliary contact Single 1 pc(s)
Description
Easy TeSys Control Contactor 3 pin for motor applications up to 9A 4kW 440V. It offers a 220V 50Hz AC coil, 1NC built-in auxiliary contacts, power and control connections by screw terminals 45mm width for standard operating rates up to 1800 cycles per hour. It offers standard reliability and long life with 1.4 MIO. Cycles of electrical life AC-3 and 10 MIO. Cycles of mechanical lifetime. It can be used at operating temperatures from -5°C to 55°C and mounted on DIN-rail, no derating up to 3000 m high. Multi-standard certified (IEC, CCC, EAC) and RoHS/REACH compliance.
